Description

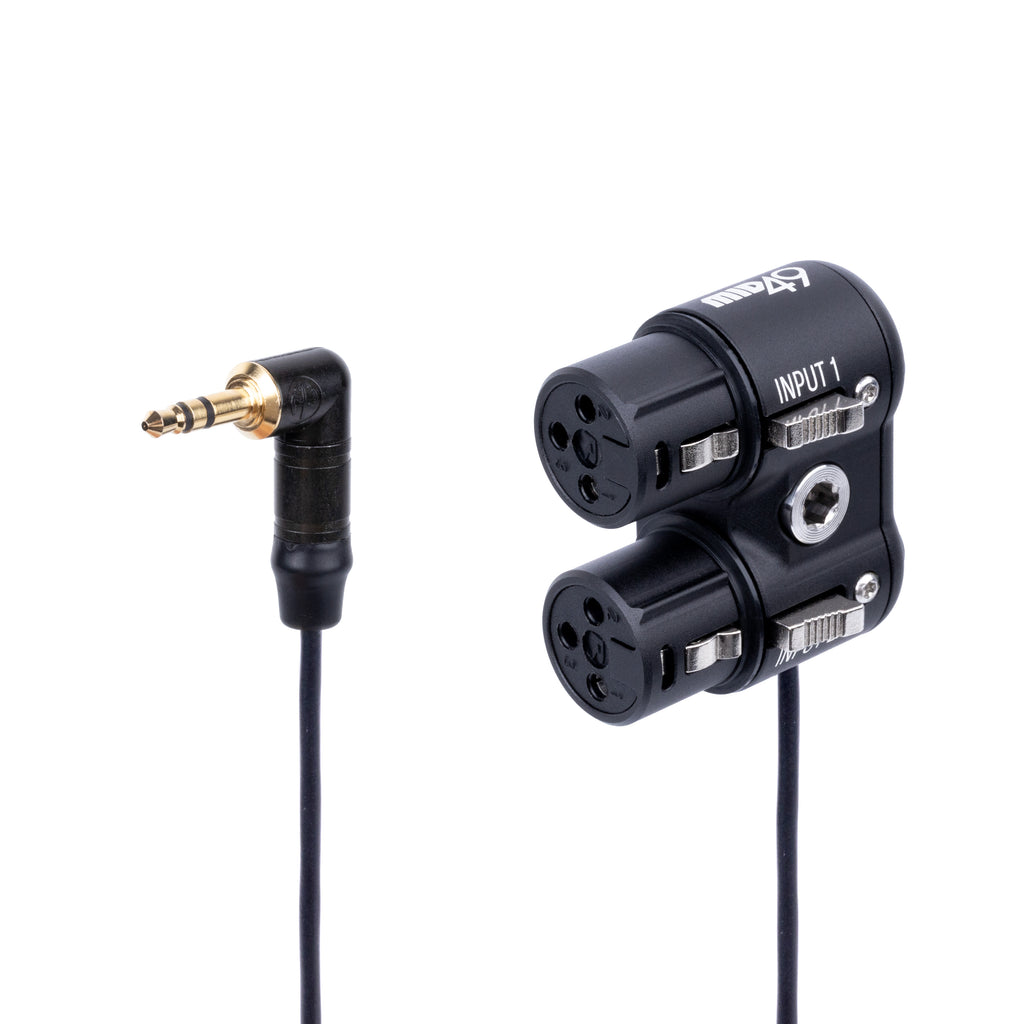

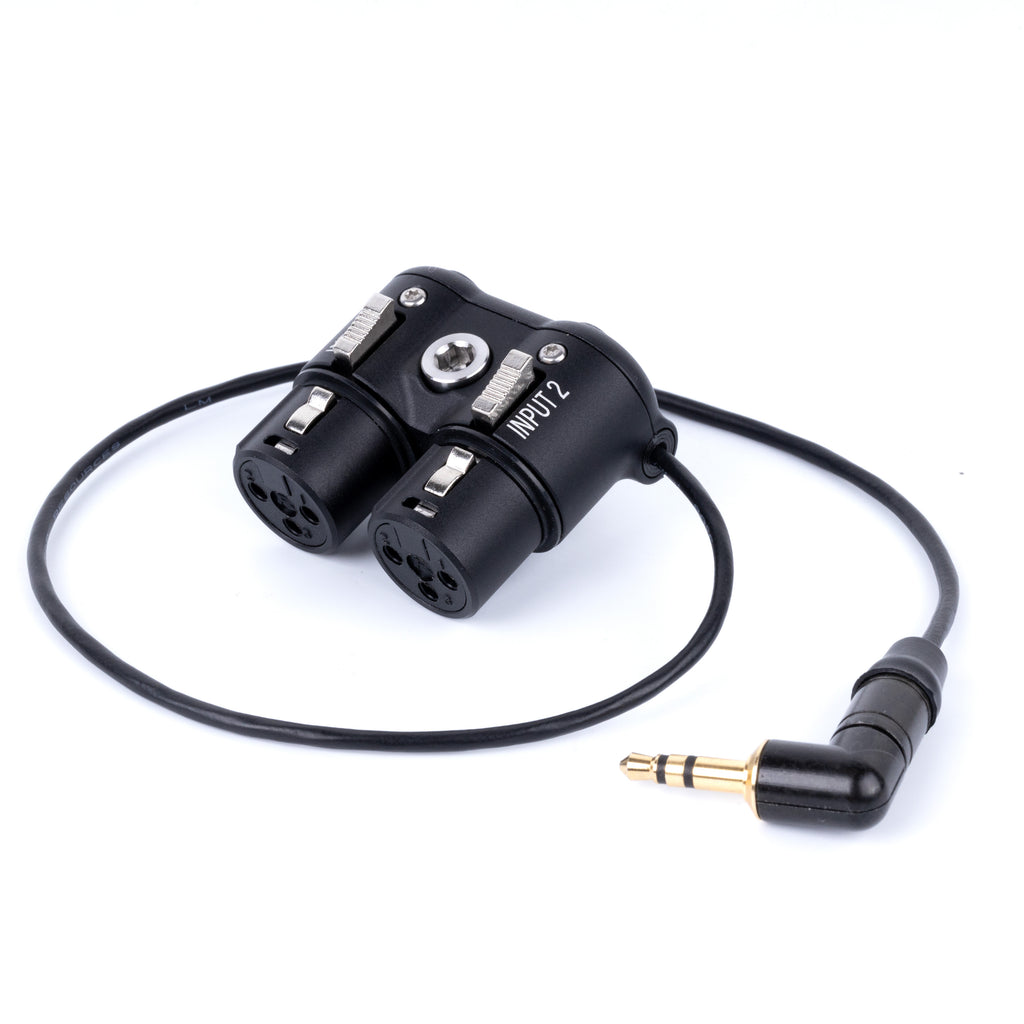

Audio Breakout AB-3 (RED Komodo, DSMC2, DSLR, Stereo 3.5mm TRS) is a passive adapter that converts the camera's 3.5mm plug to two standard, full-size XLRs.
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates.

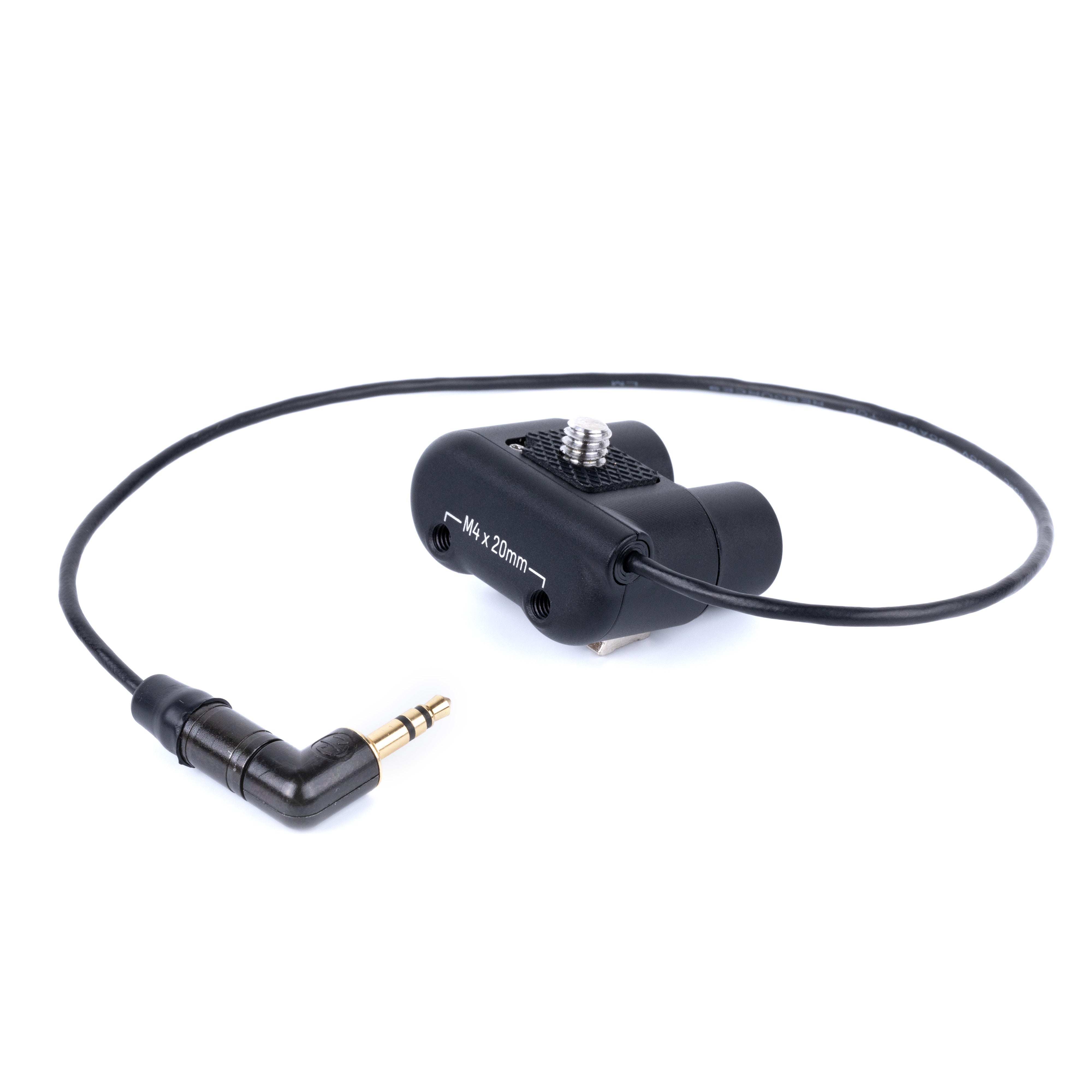

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-3 to attach using a 3/8-16 screw with ARRI locating pins.
Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately).
12 inch (30.5cm) cable length with right angle 3.5mm TRS connector.
Custom lengths are available by emailing info@mid49.com
Product Weight: 1.50oz (42g)
Product Dimensions (WxLxH): 1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
