Description

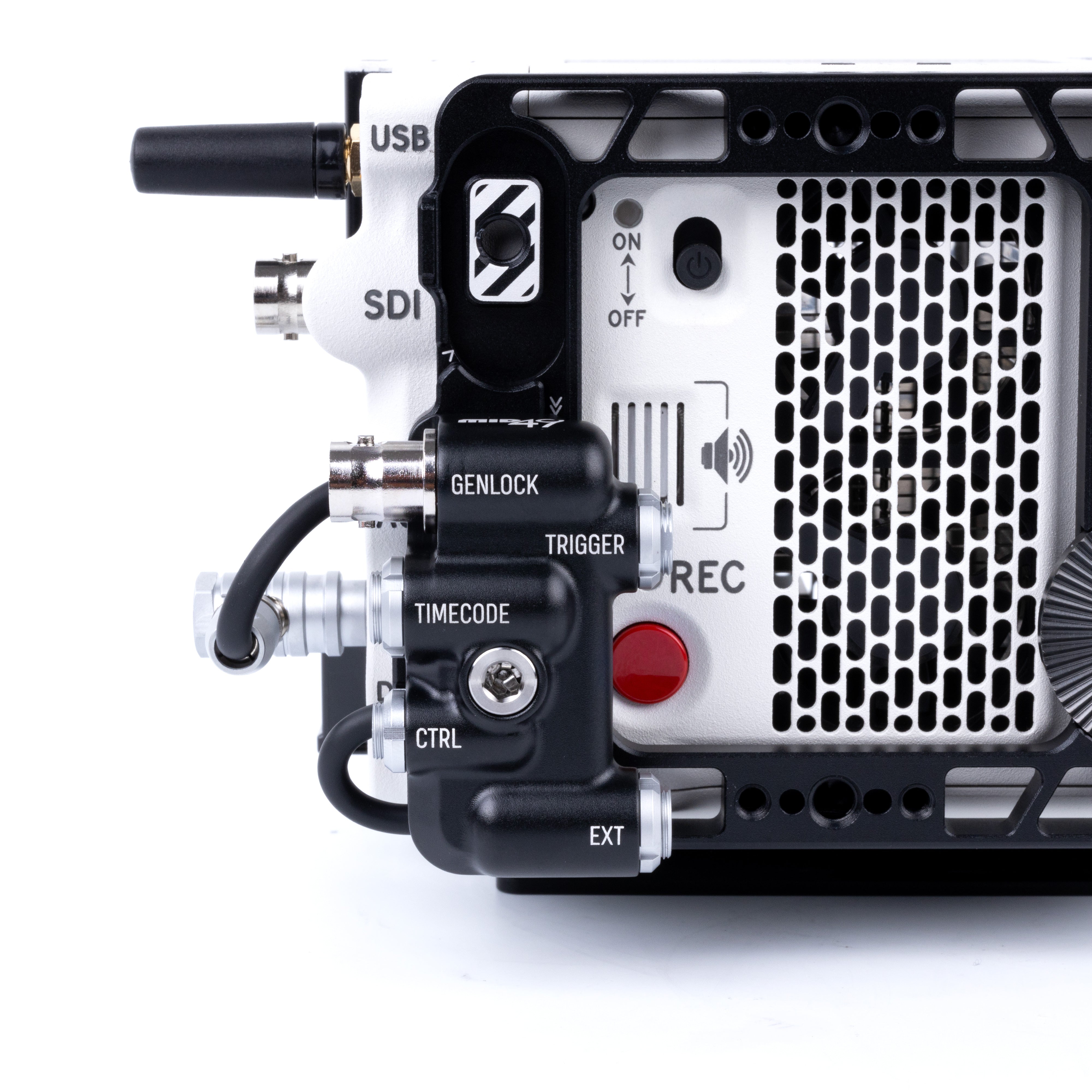

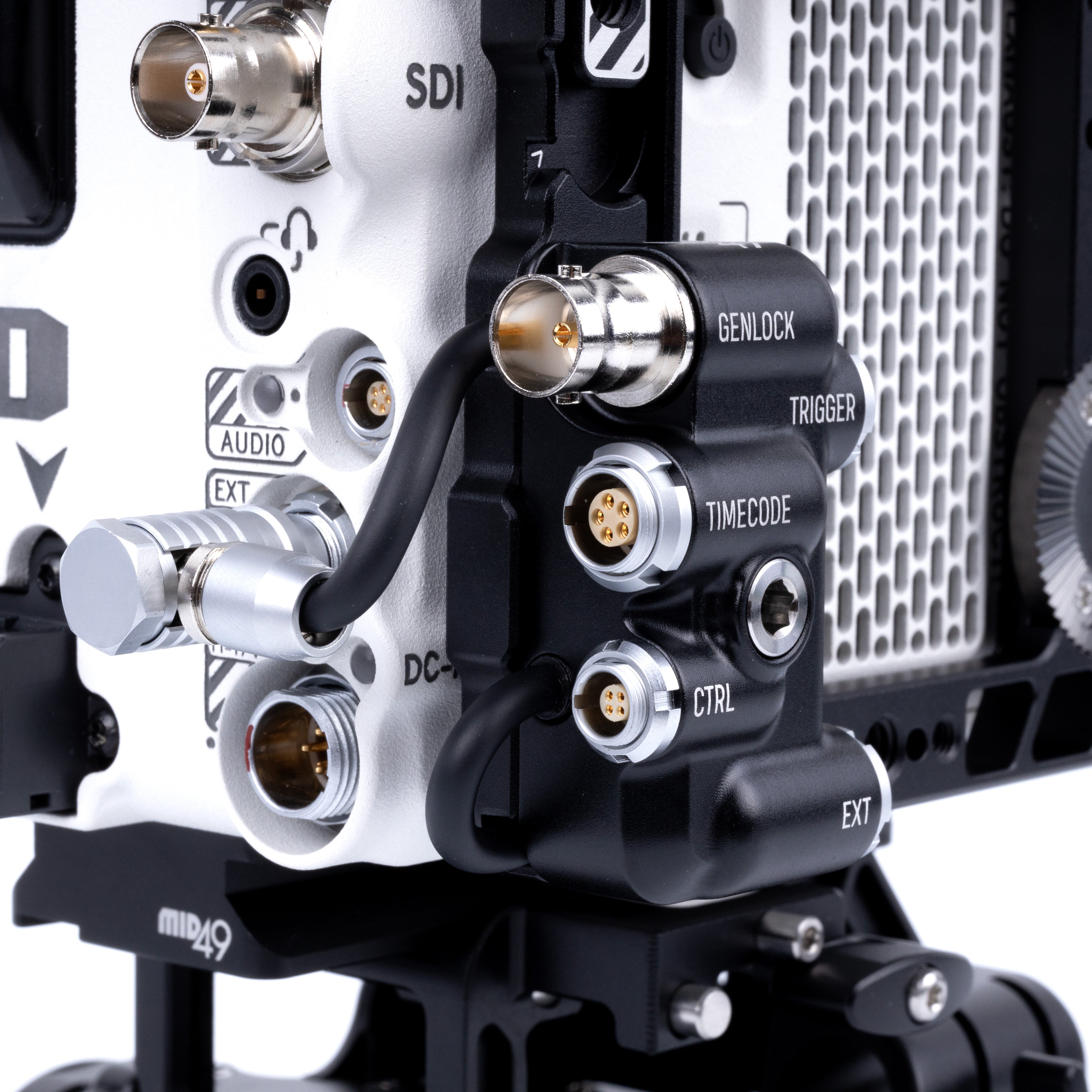

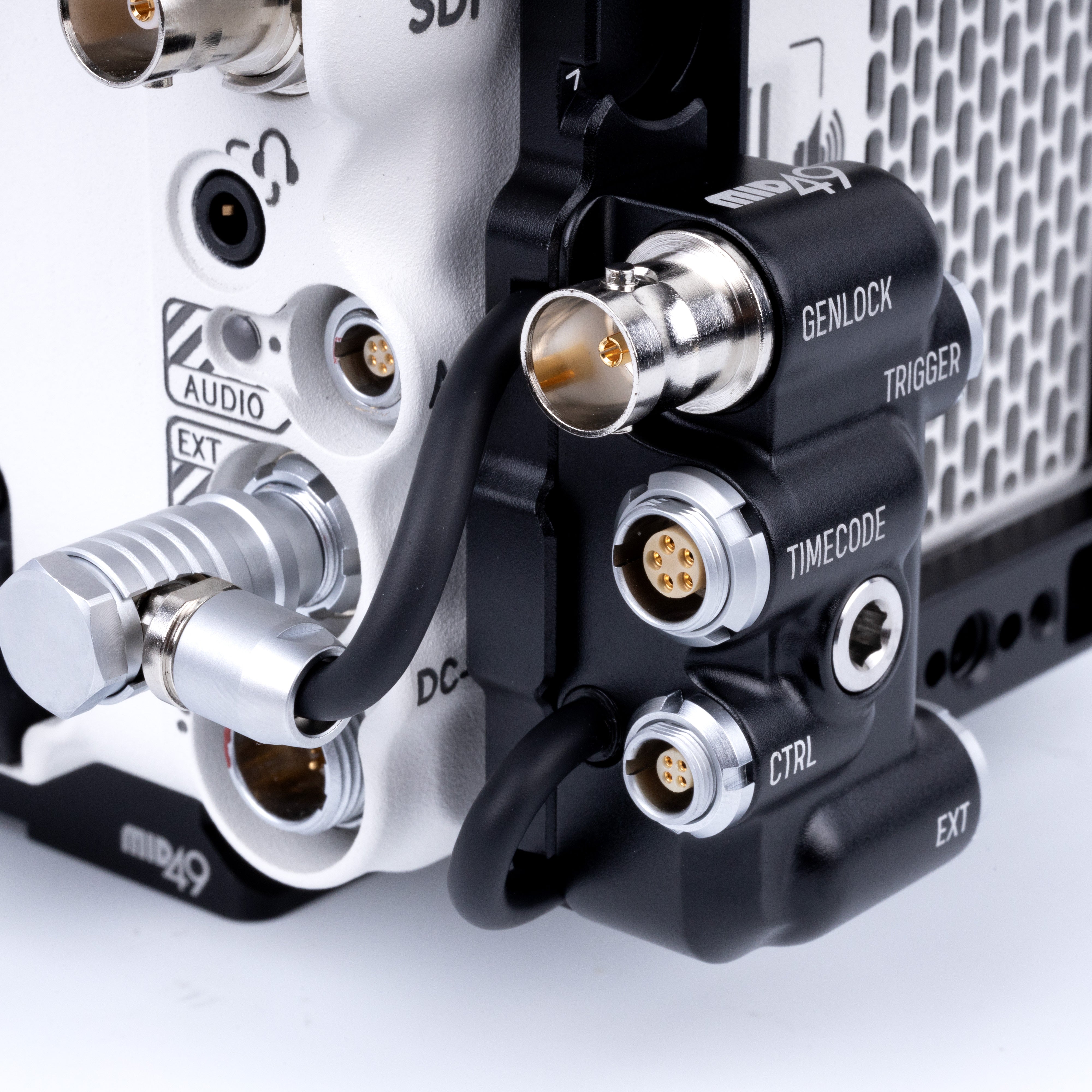

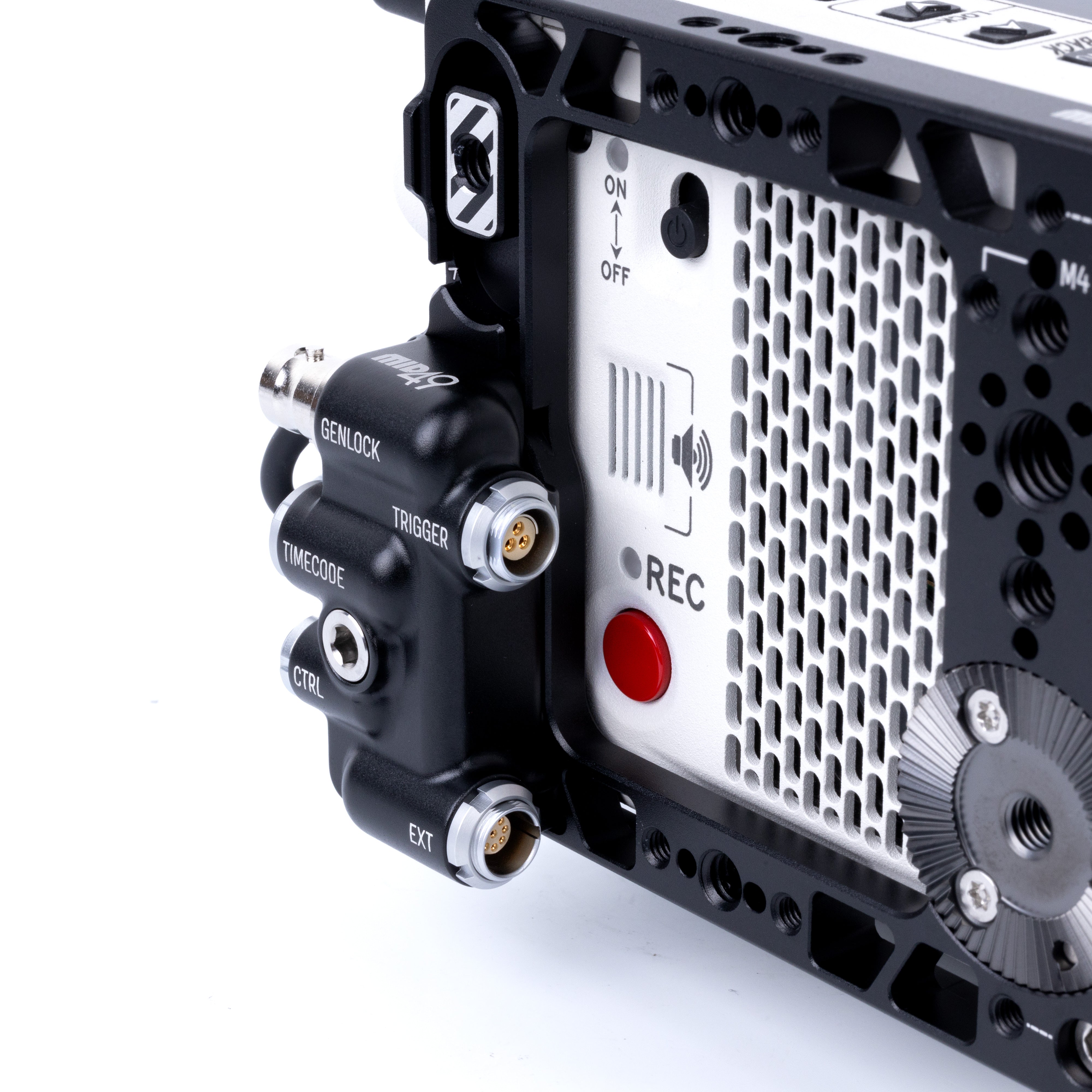

EXT Breakout EB-1 (RED Komodo, Komodo-X, V-Raptor) converts the camera's 9-pin 0B LEMO EXT port to industry standard connectors listed below.
| Genlock | 75-ohm BNC |
| Timecode | 5-pin 0B |
| CTRL | 4-pin 00 |
| Trigger | 3-pin Fischer |
| EXT Pass-Through | 9-pin 0B |
Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates like Breakout Side Plate Only (RED Komodo-X)(sold separately).

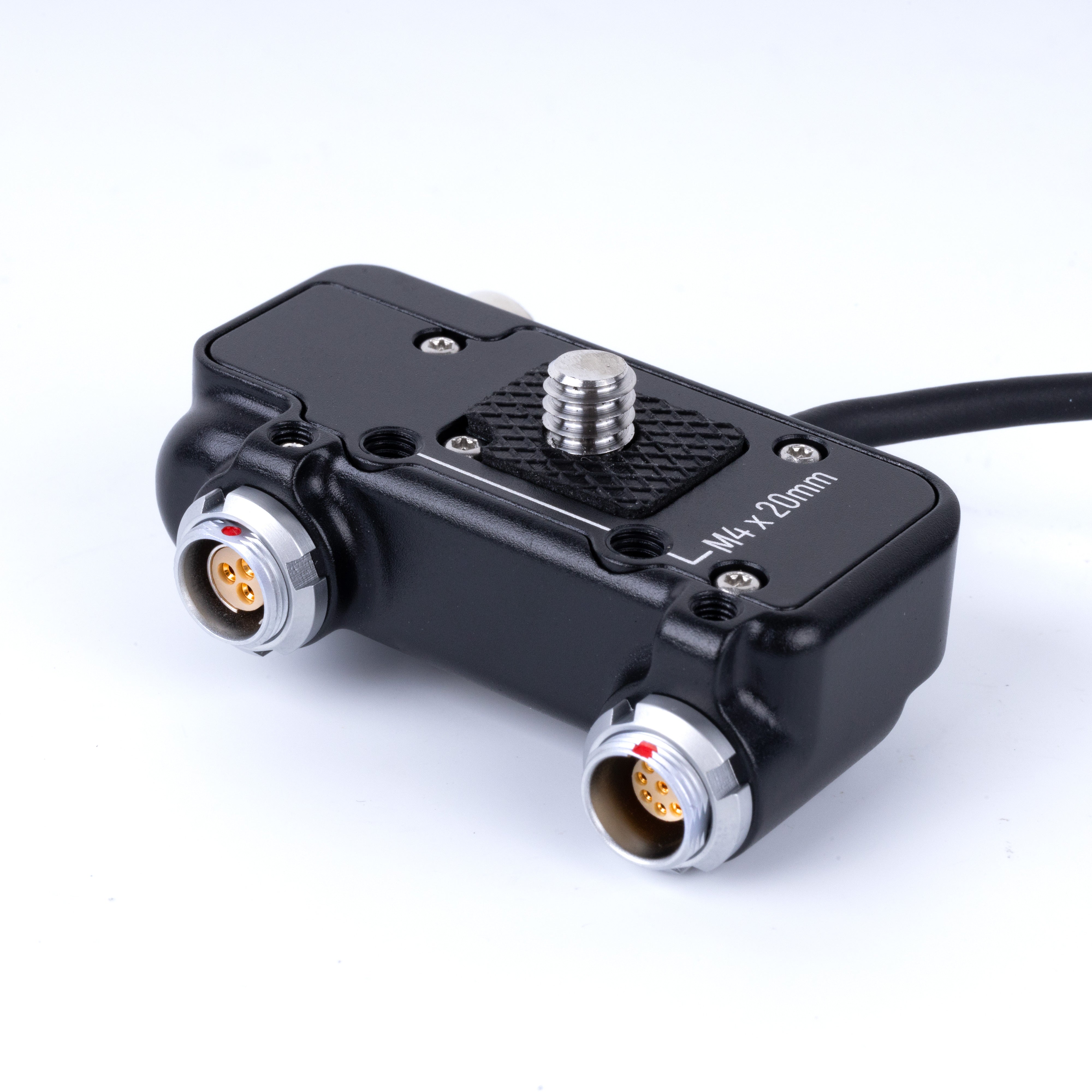

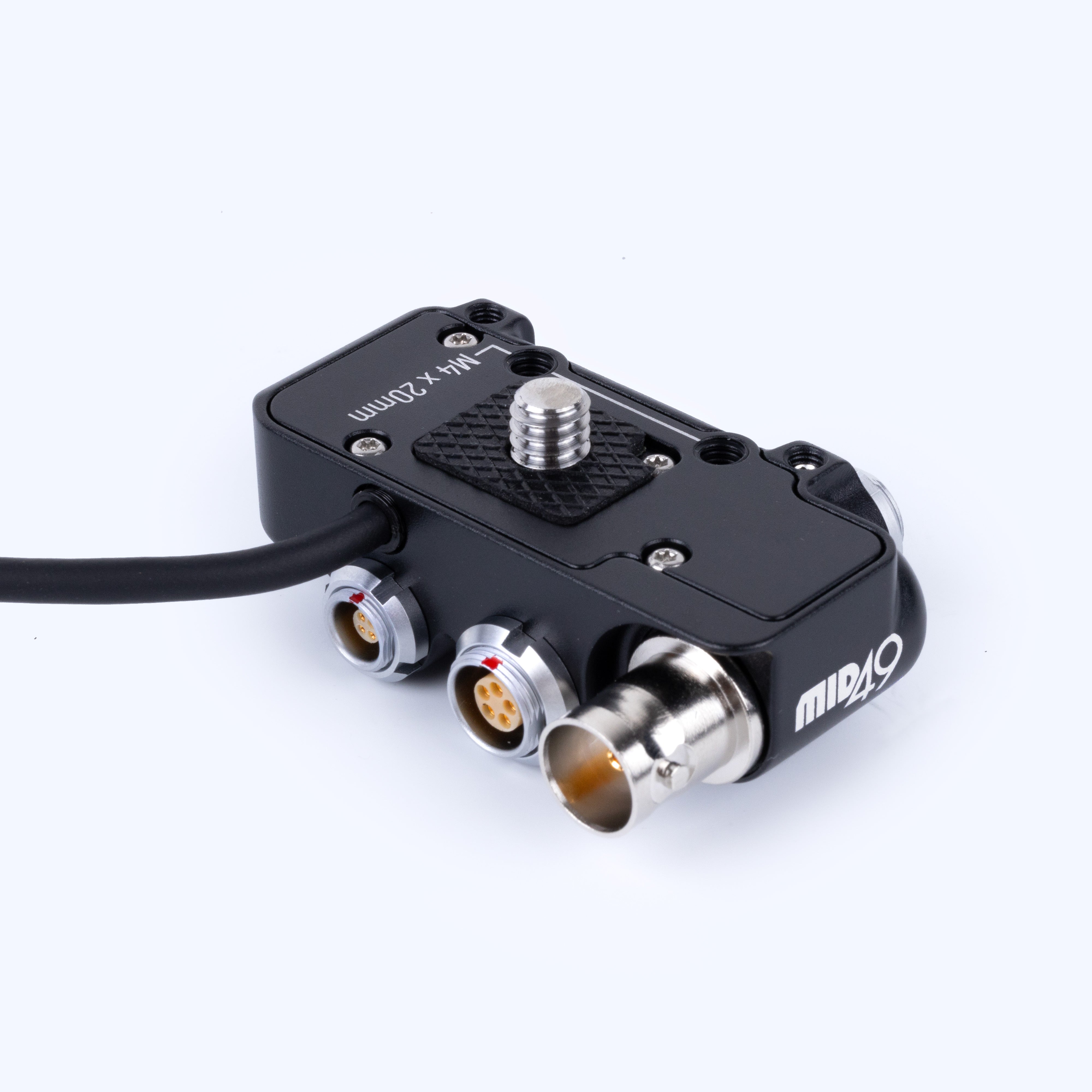

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Mounting Bracket (ARRI 3/8-16, Rear Mount) (sold separately), which allows the EB-1 to attach using a 3/8-16 screw with ARRI locating pins.
8 inch (20cm) cable length with right angle LEMO-compatible connector.
Custom lengths are available by emailing info@mid49.com
Product Weight: 2.40oz (70g)
Product Dimensions (WxLxH): 2.13 x 10.66 x 0.74in (54 x 271 x 19mm)
