Description

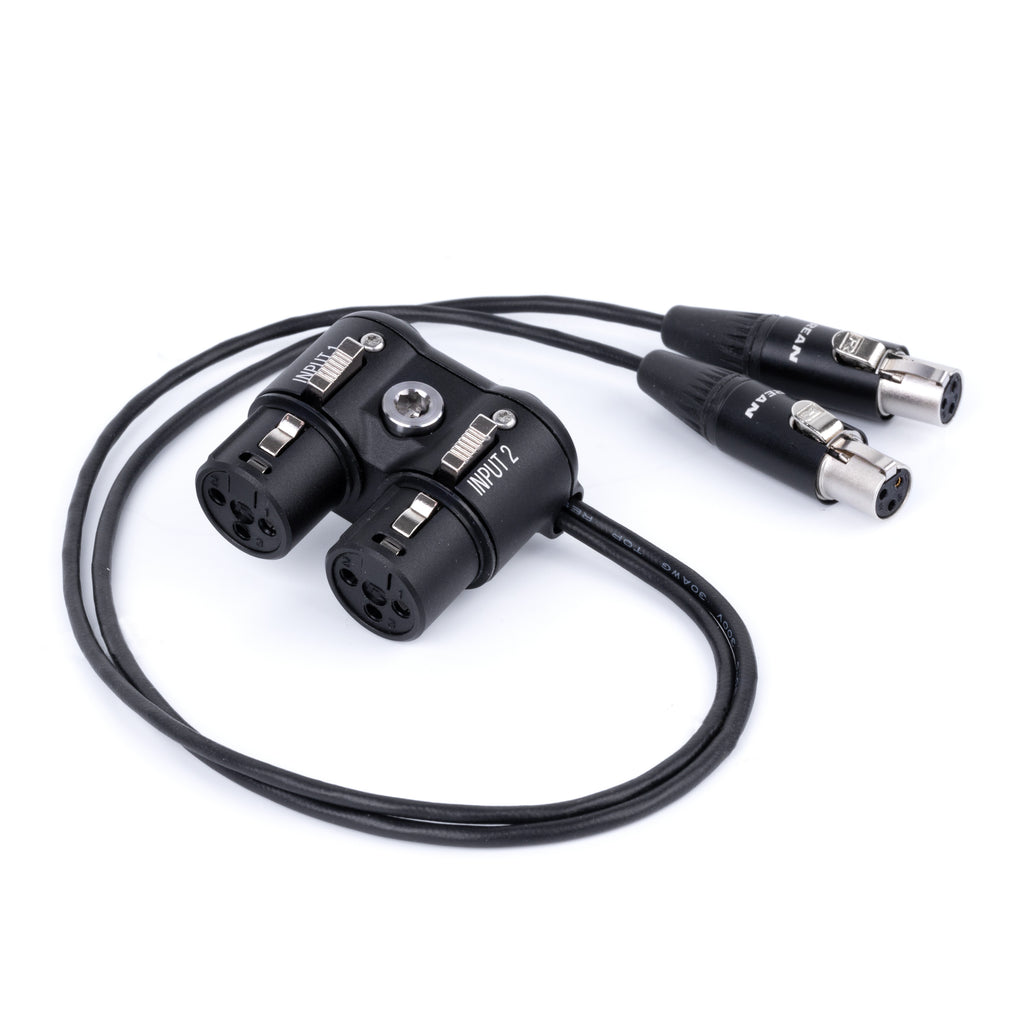

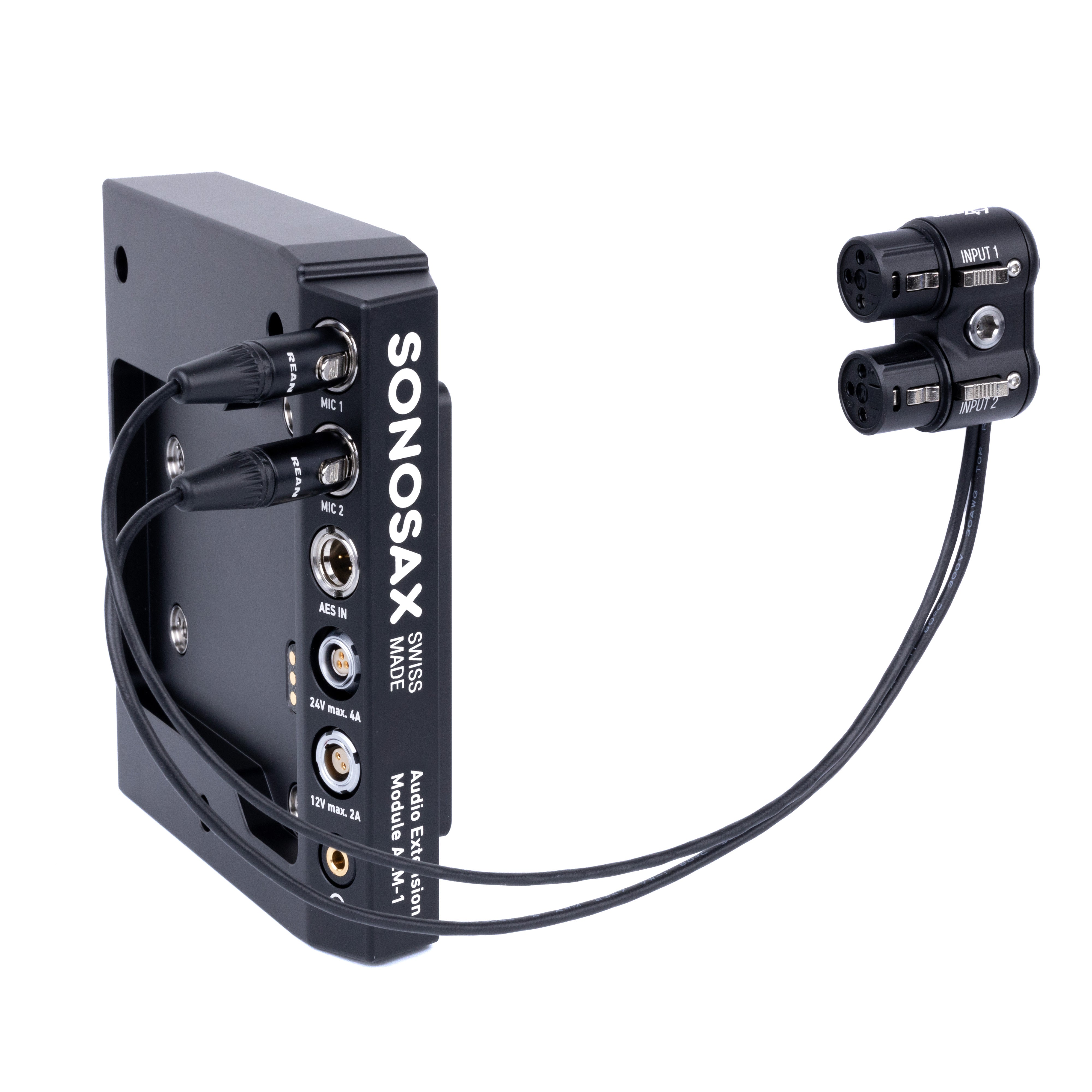

Audio Breakout AB-7 (ARRI Sonosax AEM-1, Dual Mini XLR Female) is a passive adapter that converts the ARRI Alexa 35's Sonosax AEM-1 dual mini XLRs to two standard, full-size XLRs.

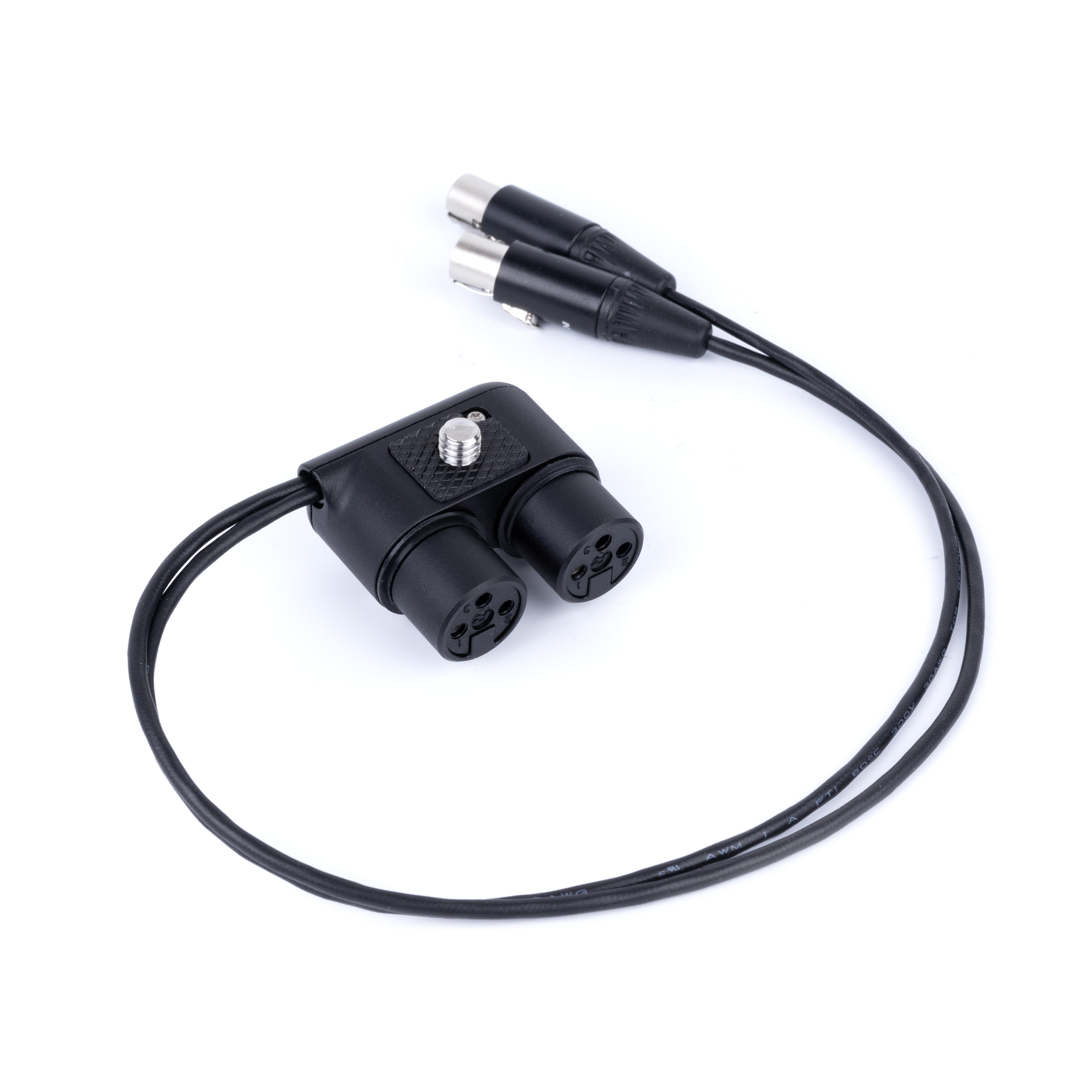

Attaches by a captive 1/4-20 screw and rubber pad to ARRI's camera cage components.
Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-7 to attach using a 3/8-16 screw with ARRI locating pins.
Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp (sold separately).

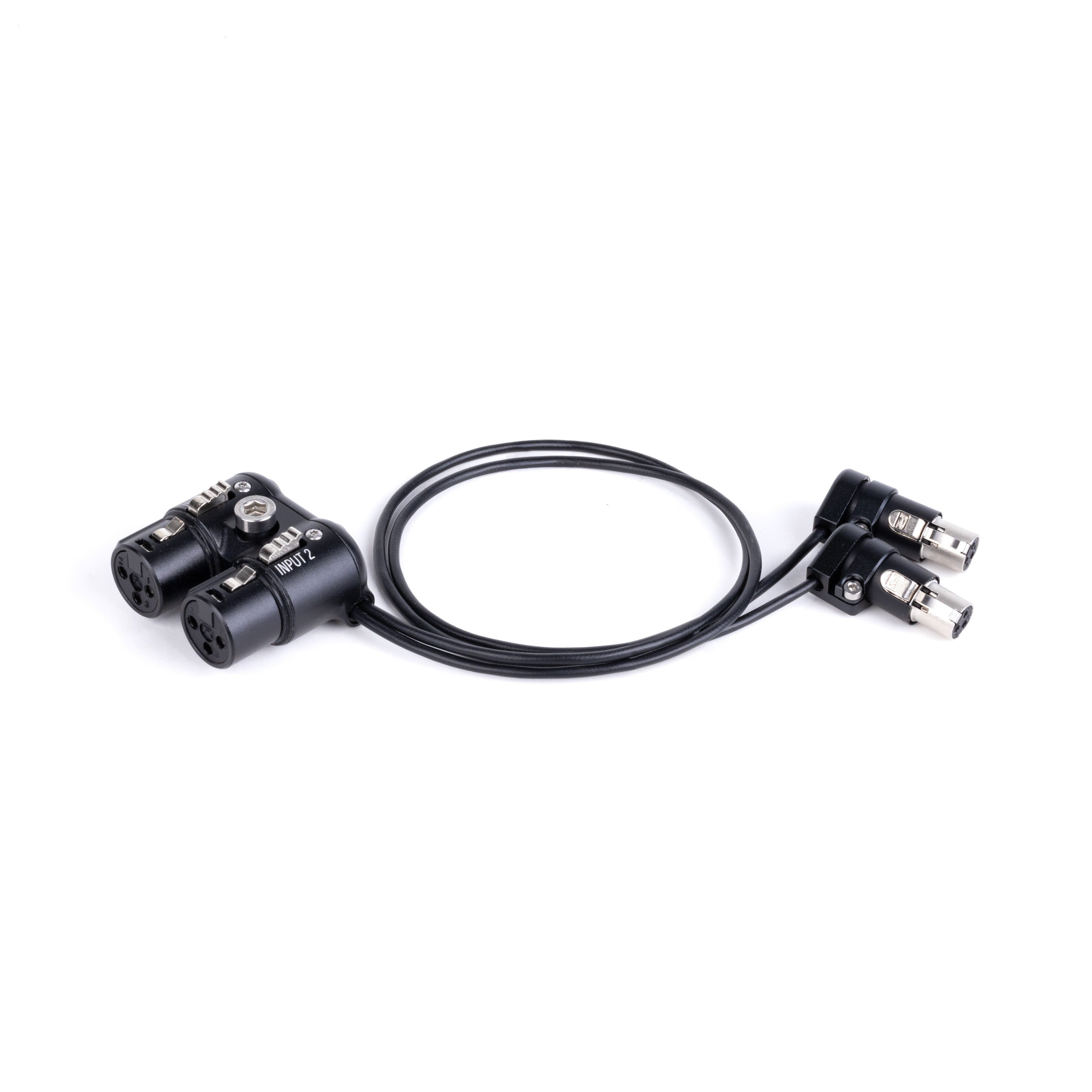

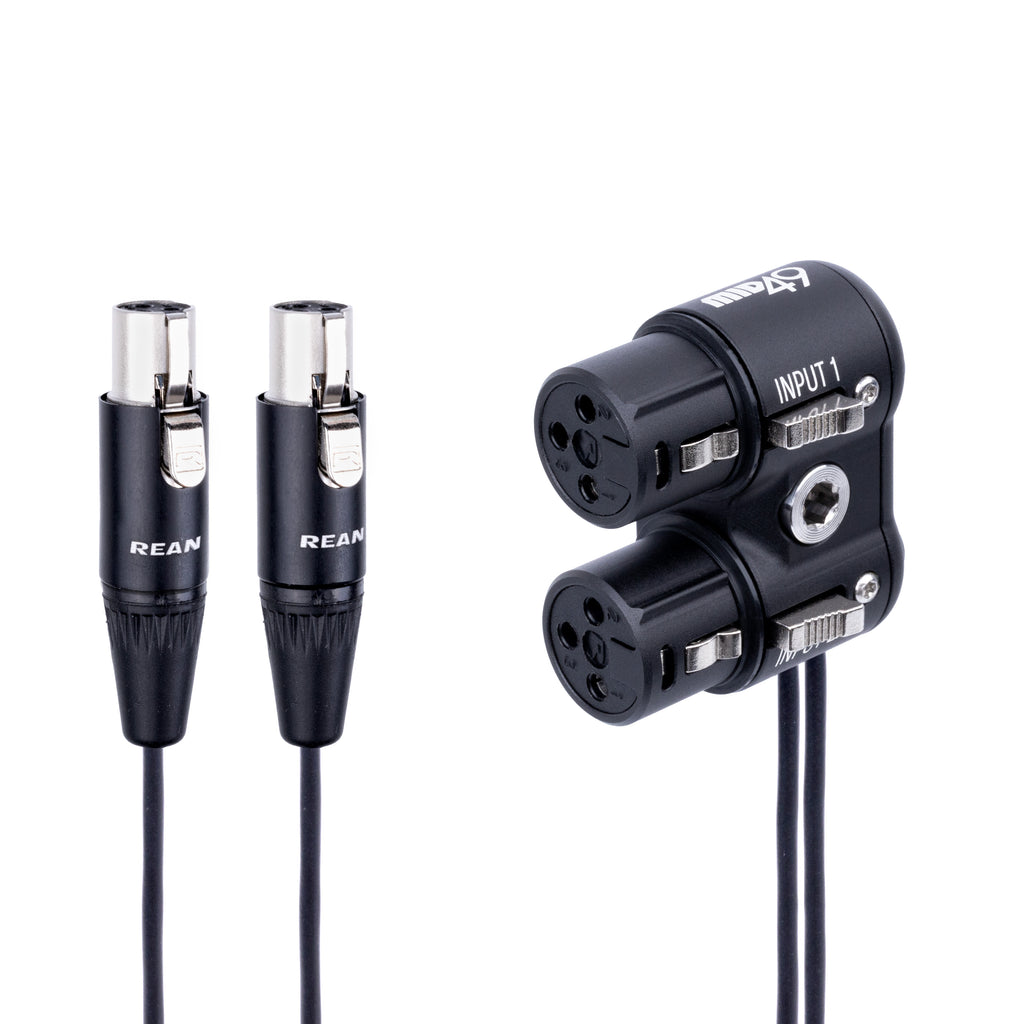

12 inch (30.5cm) cable length with two 3-pin female mini XLR connectors. Right-Angle connectors also available.
Custom lengths are available by emailing info@mid49.com
Product Weight: 1.50oz (42g)
Product Dimensions (WxLxH): 1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
