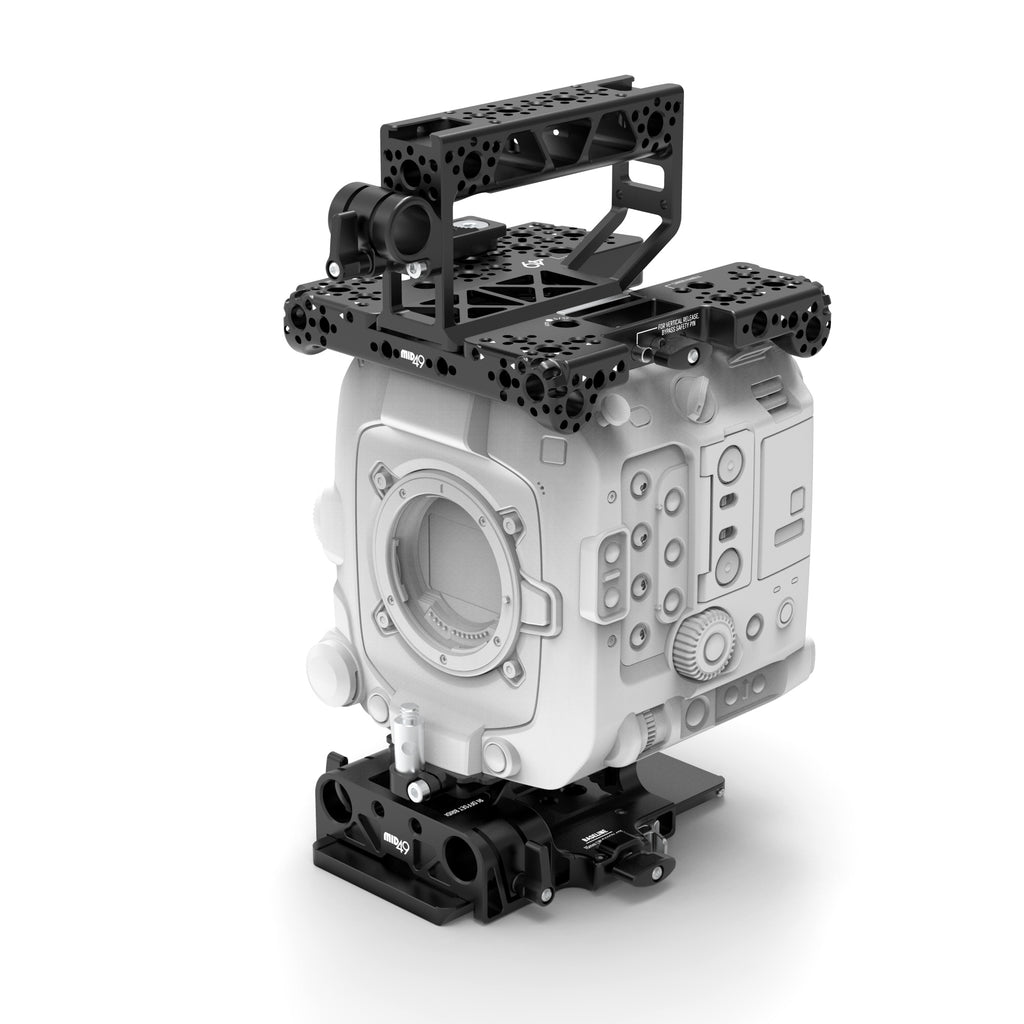

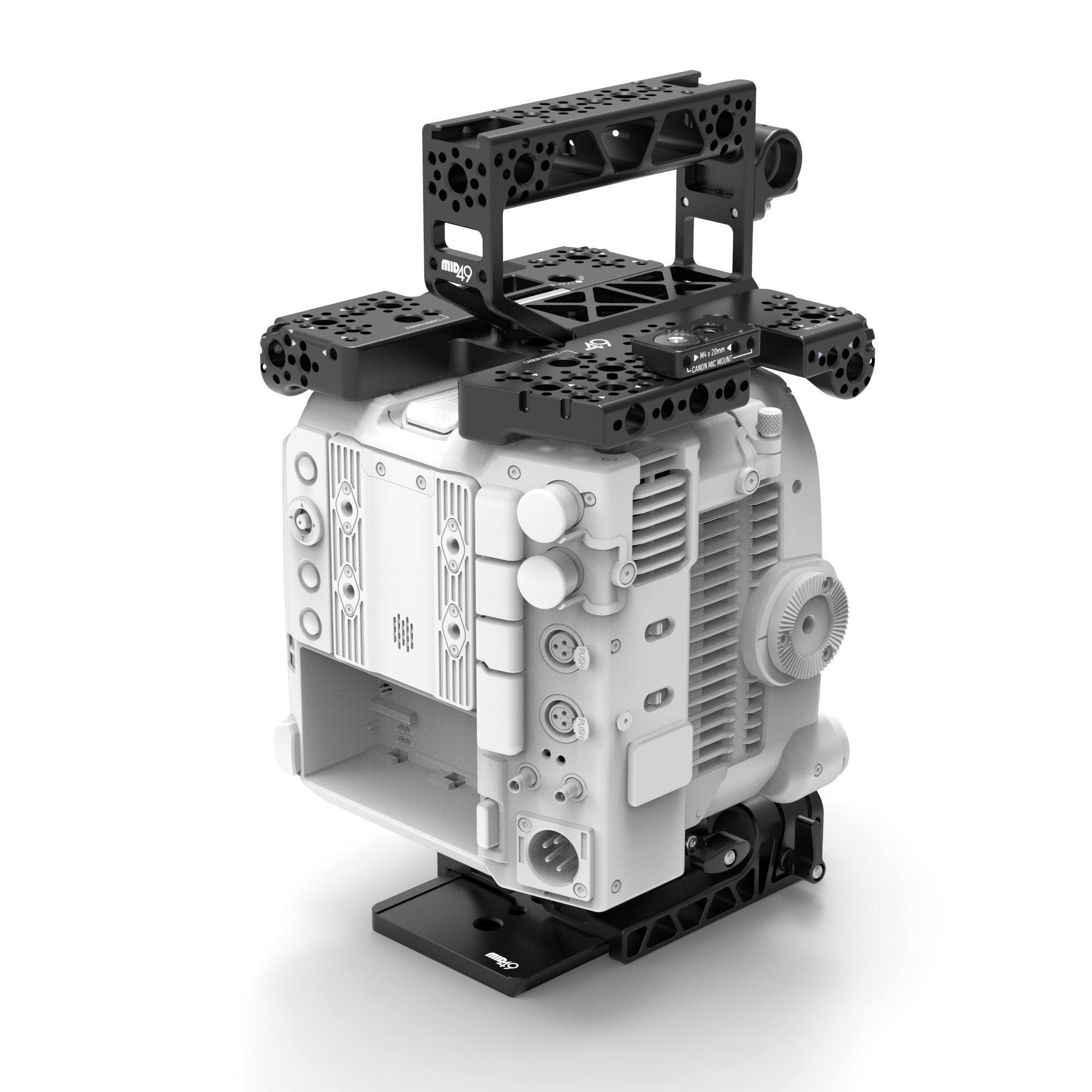

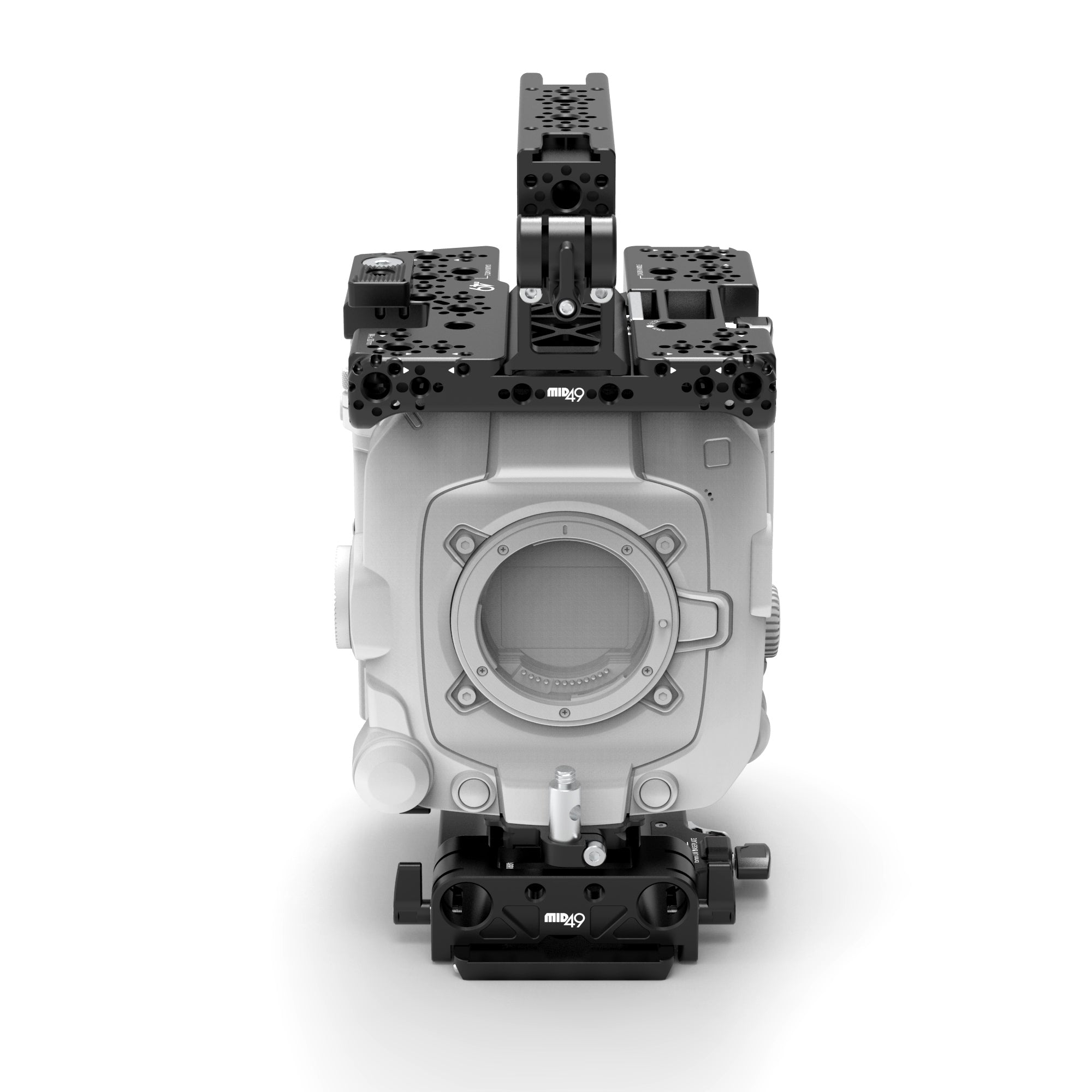

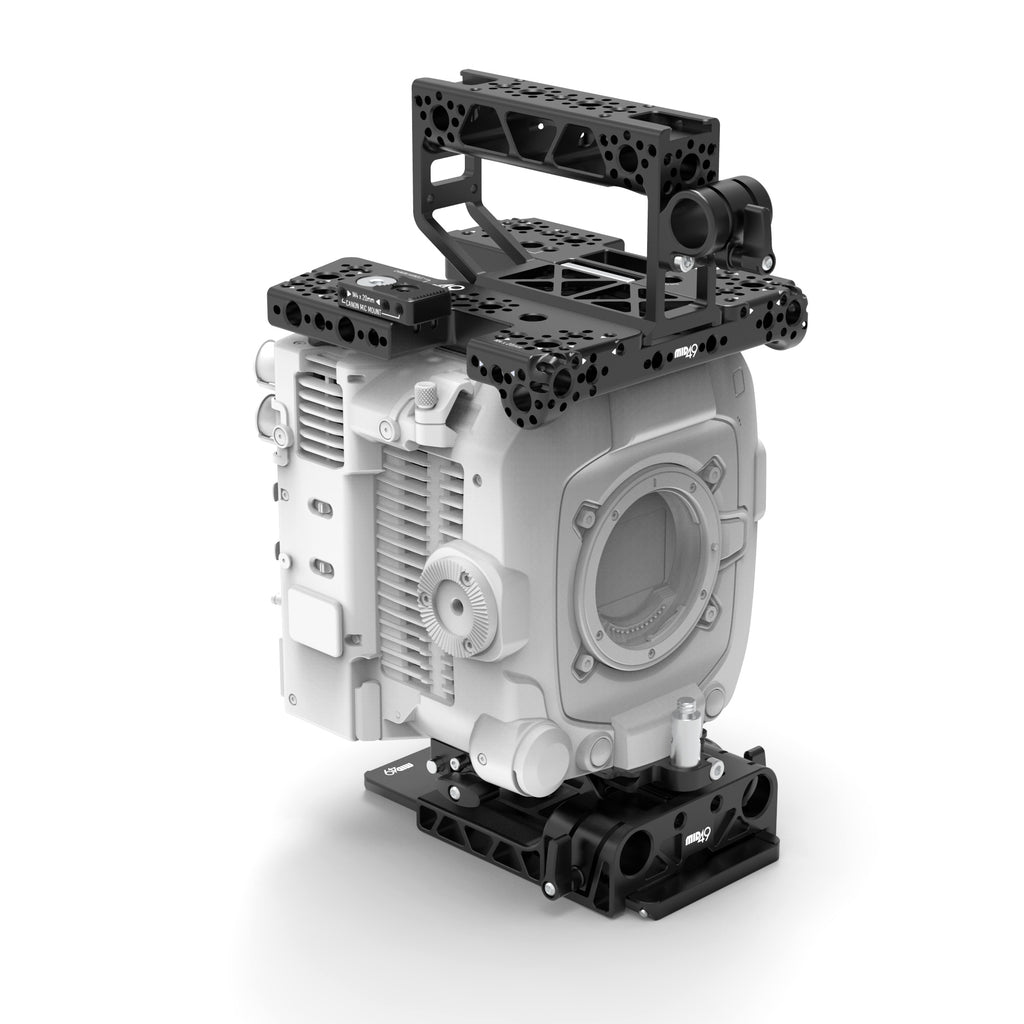

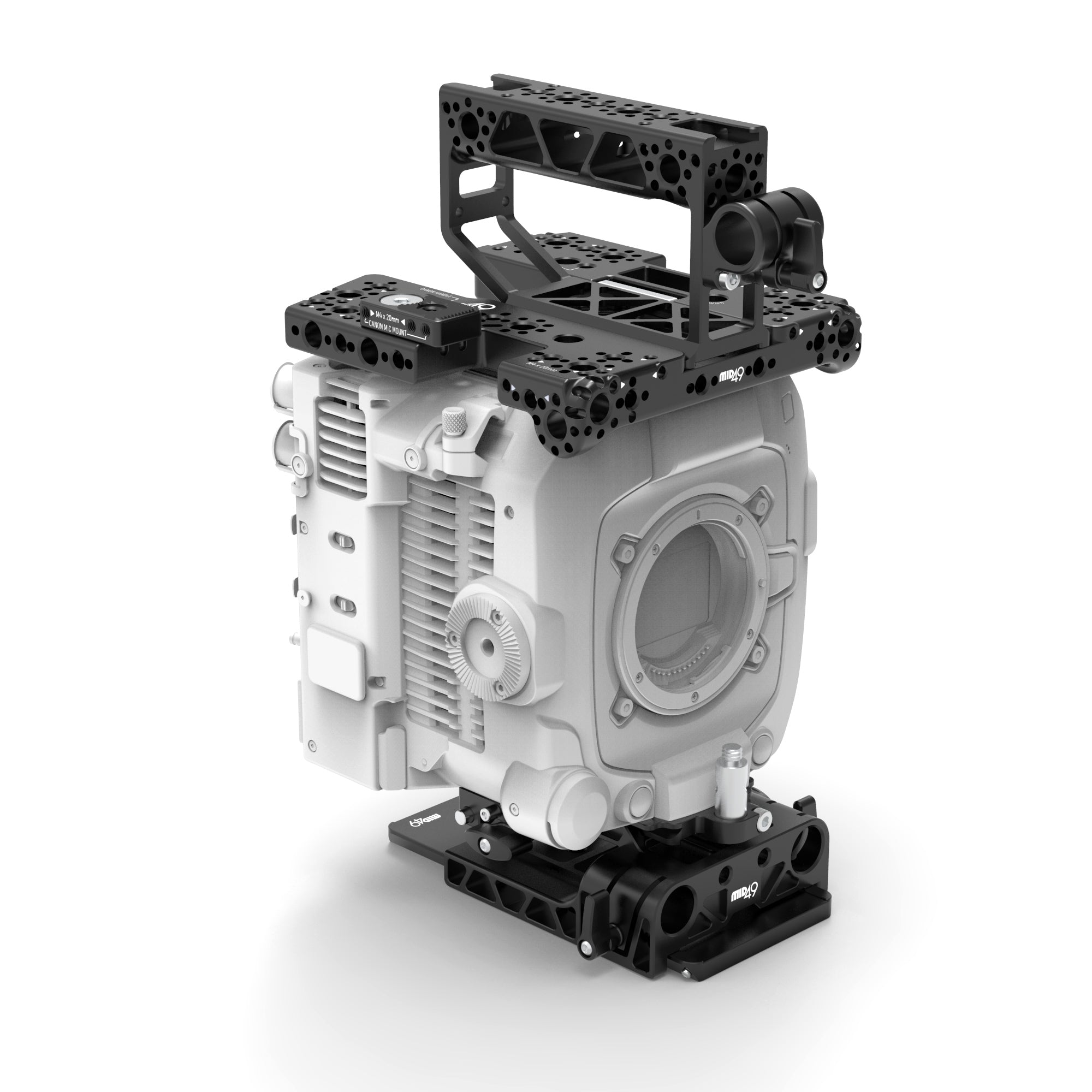

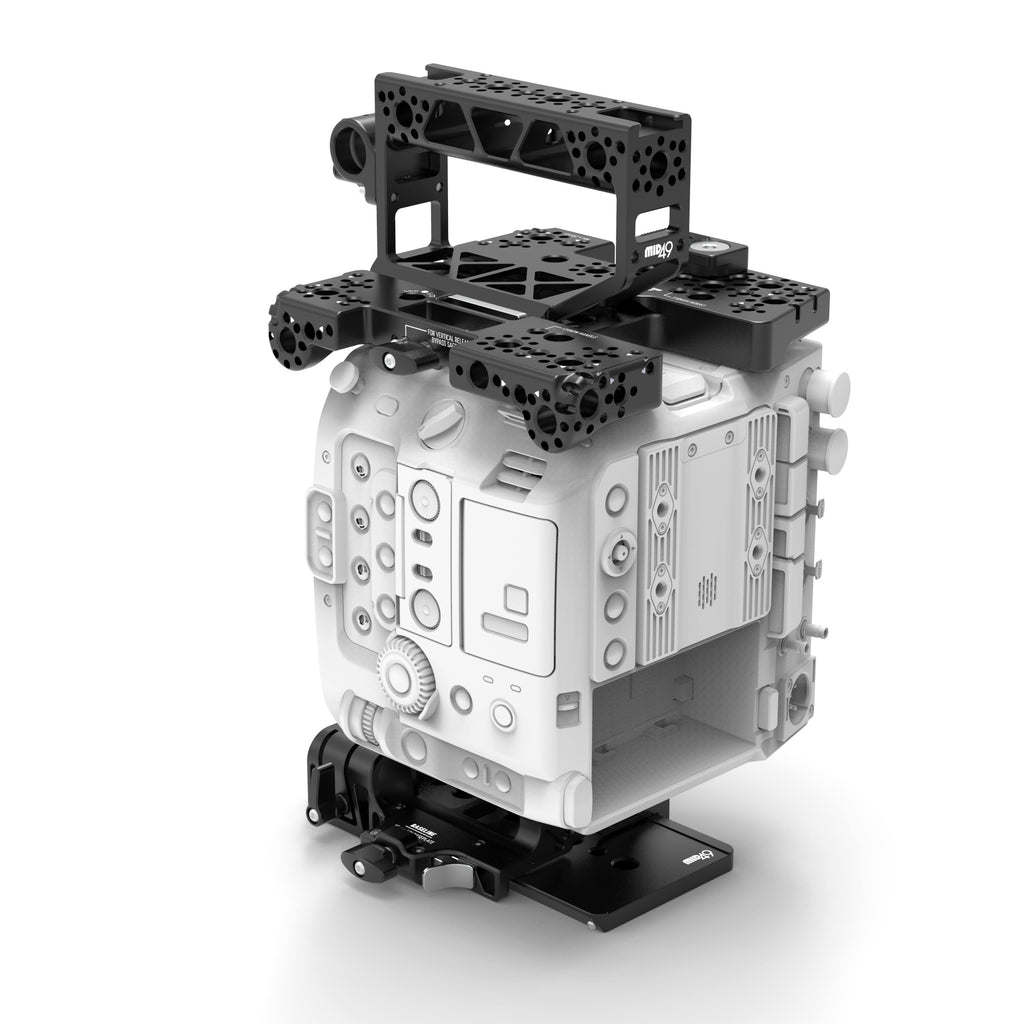

Base Kit For Canon C400

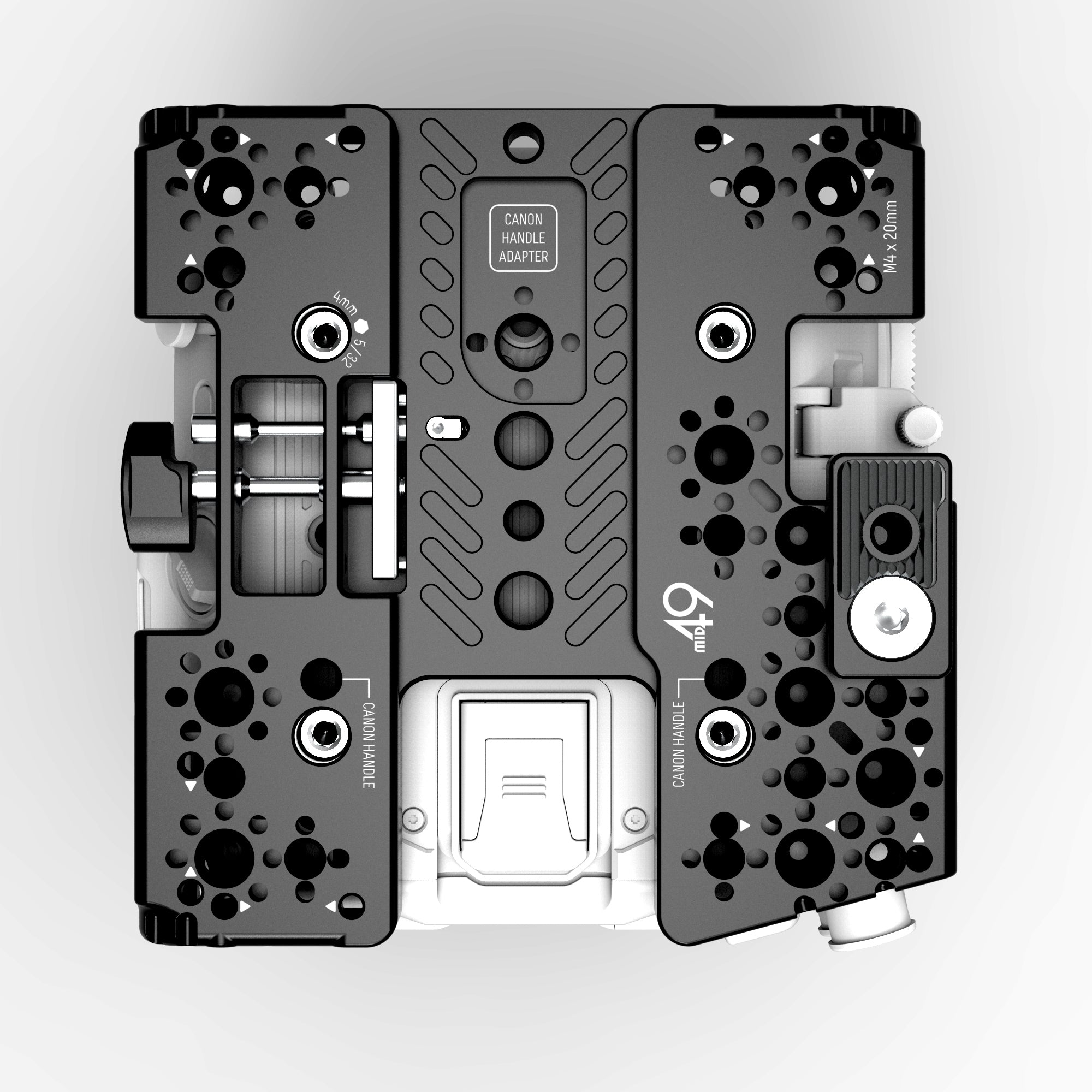

Top Plate (Canon C400)
Attaches to the top of the camera and provides 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins, M4x20mm ARRI standard threaded holes, and includes an adapter for attaching Canon's original C400 top handle (ARRI 3/8-16 to Canon Striped Rosette / Canon Mic Mount). When not using the adapter for Canon's handle, it can be positioned on the Top Plate to provided mounting points for Canon's included microphone shock mount.

ARCA Top Handle
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.

Baseline 15mm LW (Canon C400)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.

Attaches by two M4 screws spaced 20mm apart, center to center, and is great for attaching lens motors in a compact configuration.

**************

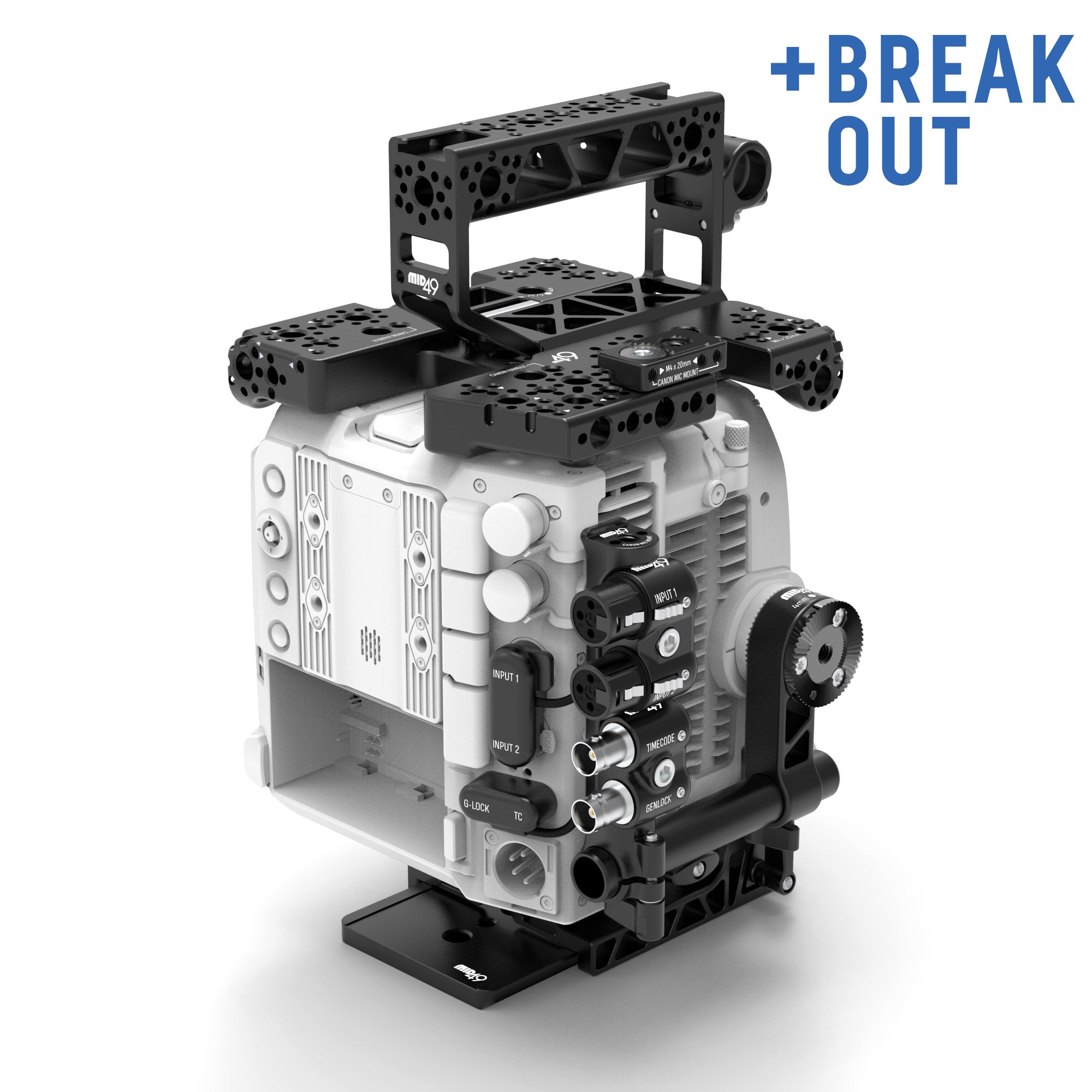

Add on the optional Breakout Boxes and Side Plate Bundle for Canon C400 which includes:

Breakout Side Plate for Canon C400
Attaches to the ARRI rosette on the side of the camera and provides a 15mm rod clamp for attaching lens motors, a female ARRI rosette for attaching Canon's handgrip, and a breakout box mounting area with 1/4-20's and recessed cable loops

Audio Breakout AB-10 (Canon C400) is a passive adapter that converts the camera's two mini XLRs using a custom, low-profile connection to two standard, full-size XLRs.

DIN Timecode Genlock Breakout EB-10 (Canon C400) converts the DIN 1.0/2.3 connectors using a custom, low-profile connection to standard BNCs for Timecode and Genlock.

Also included is a 1/4-20 knurled knob for attaching Canon's microphone shock mount to the top of the breakout panel.
