Description

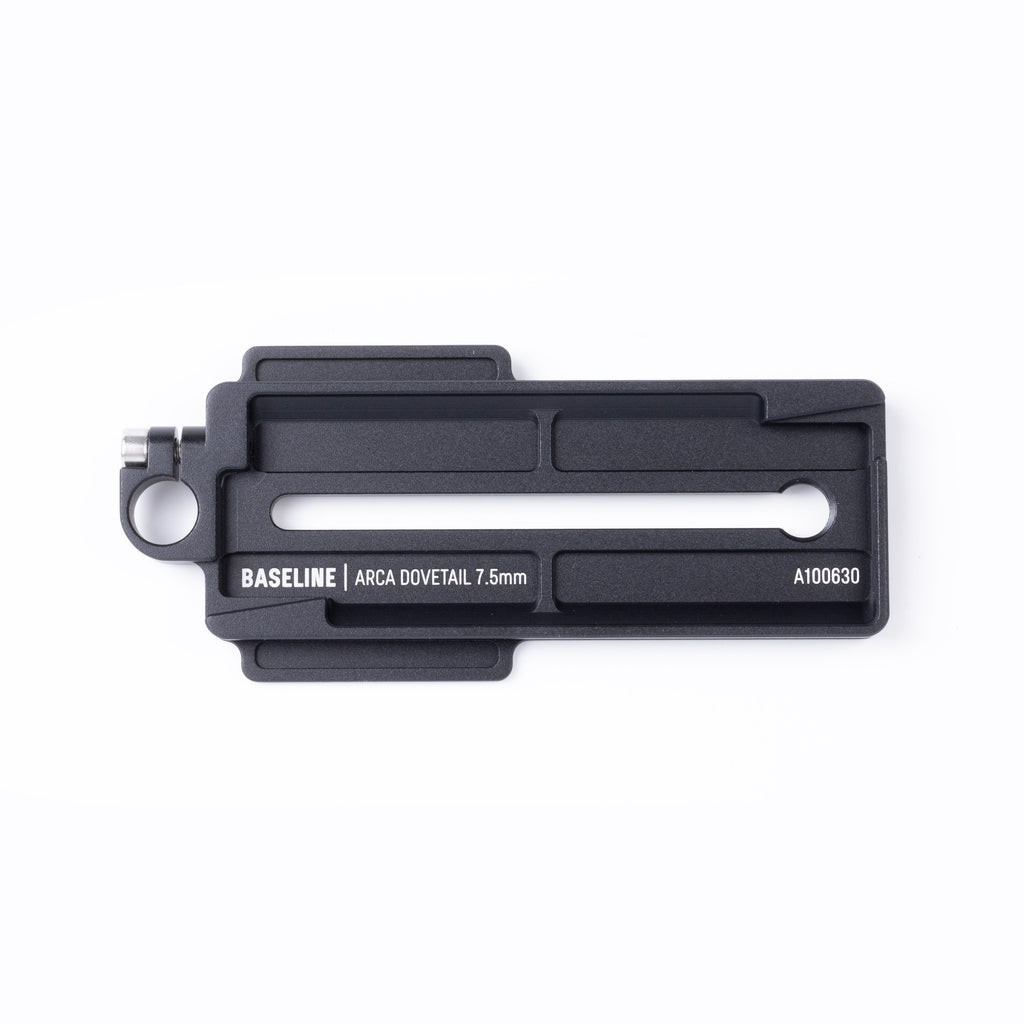

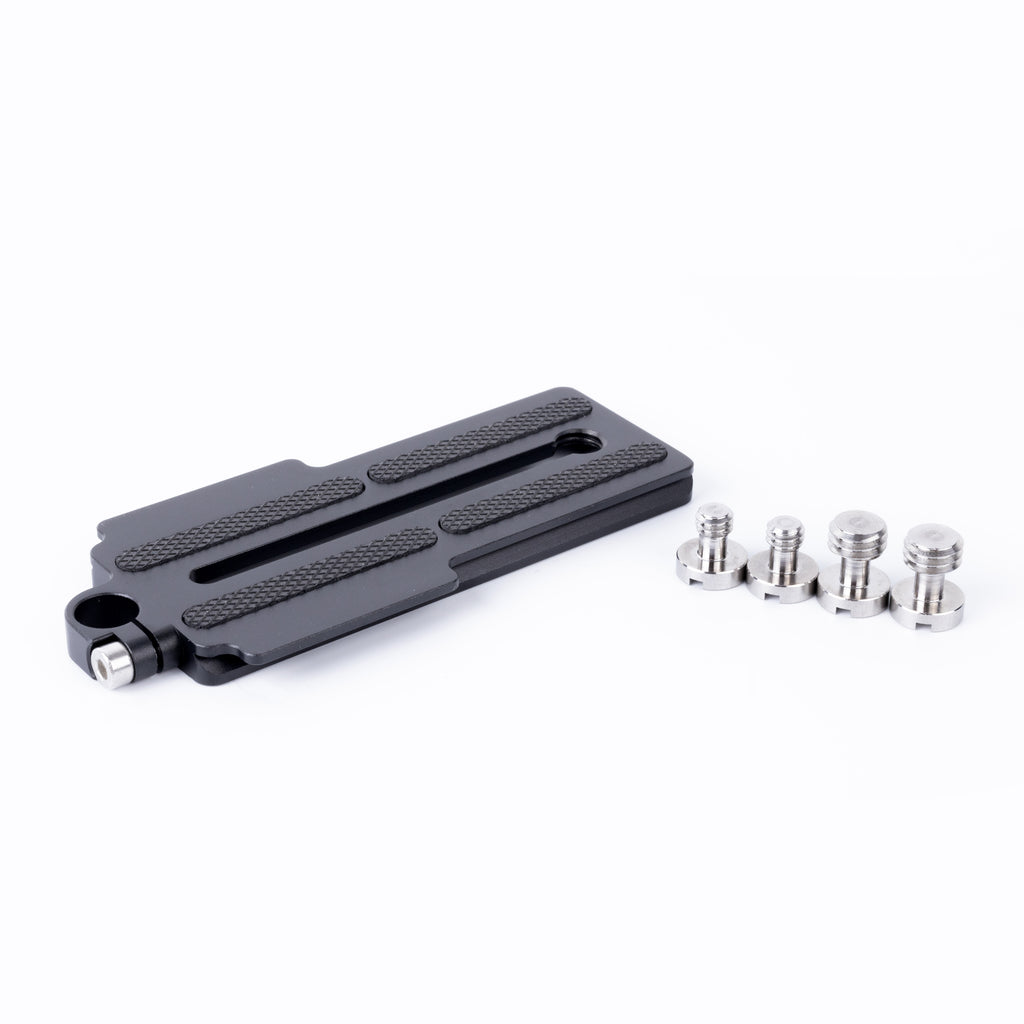

Baseline ARCA Dovetail (7.5mm Height) is an ARCA Swiss standard camera dovetail designed to be used with certain cameras listed below. Center screw slot for included 1/4-20 and 3/8-16 mounting screws. Vertical hole available for Lens Support Post Set (1/4-20) (sold separately) to support lens adaptors like Metabones, etc.
"7.5mm" height refers to the distance from the bottom of the dovetail to the top of the dovetail. Combine with the below Baseline Cores and listed cameras for lightweight 15mm rods at the correct lens height.
Baseline Core 15mm LW (0mm Platform Height)
- Sony FX9, FS7, FS7mkII
- Canon C100, C300, C500, C100mkII, C300mkII
Baseline Core 15mm LW (13mm Platform Height)
- Canon C300mkIII, C500mkII, C200, C200B, C700
- Blackmagic Pocket 6K
- Kinefinity MAVO mark2
Baseline Core 15mm LW (23mm Platform Height)
- RED V-Raptor
Product Weight: 1.98oz (56g)
Product Dimensions (WxLxH): 1.93 x 4.41 x 0.28in (49 x 112 x 7mm)
