Description

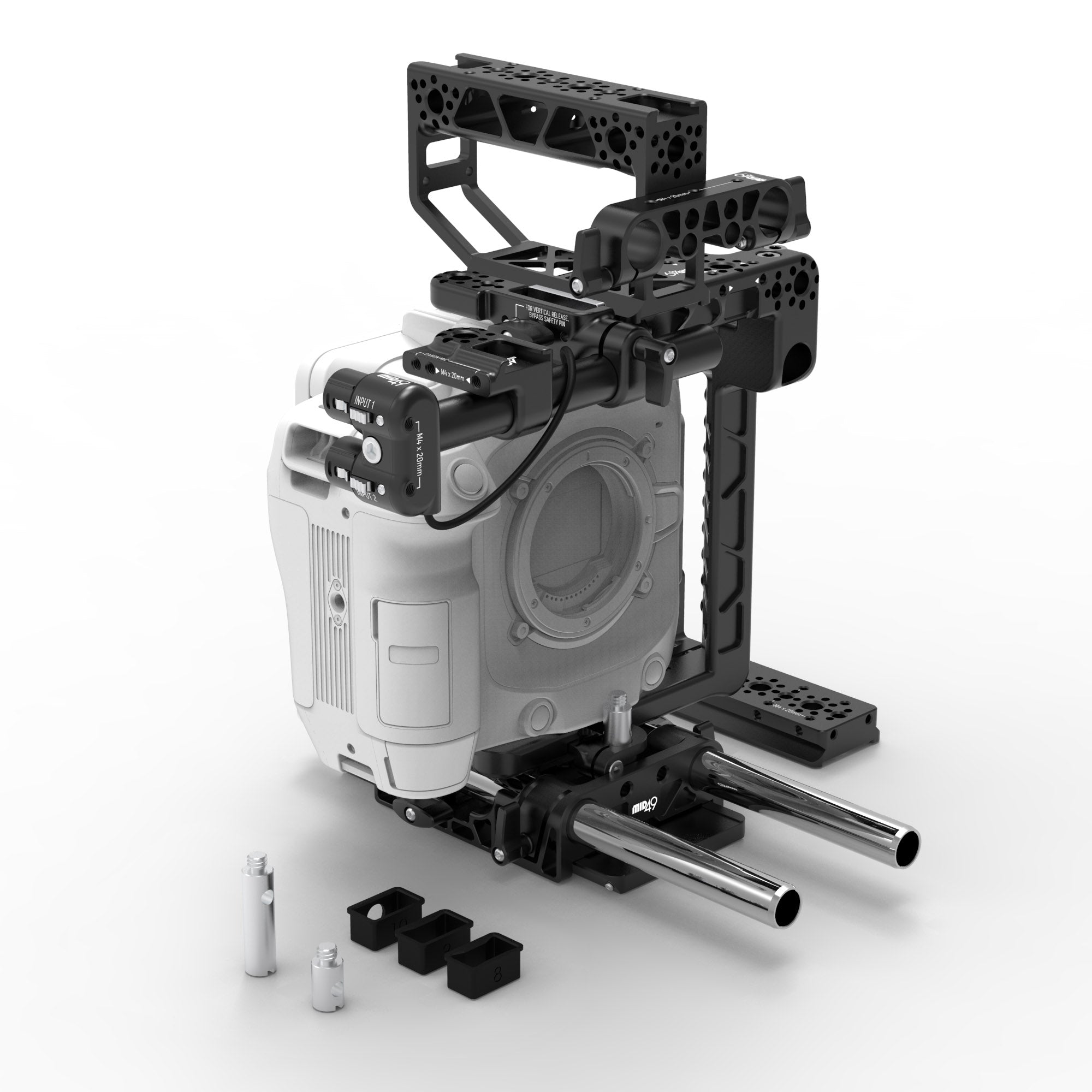

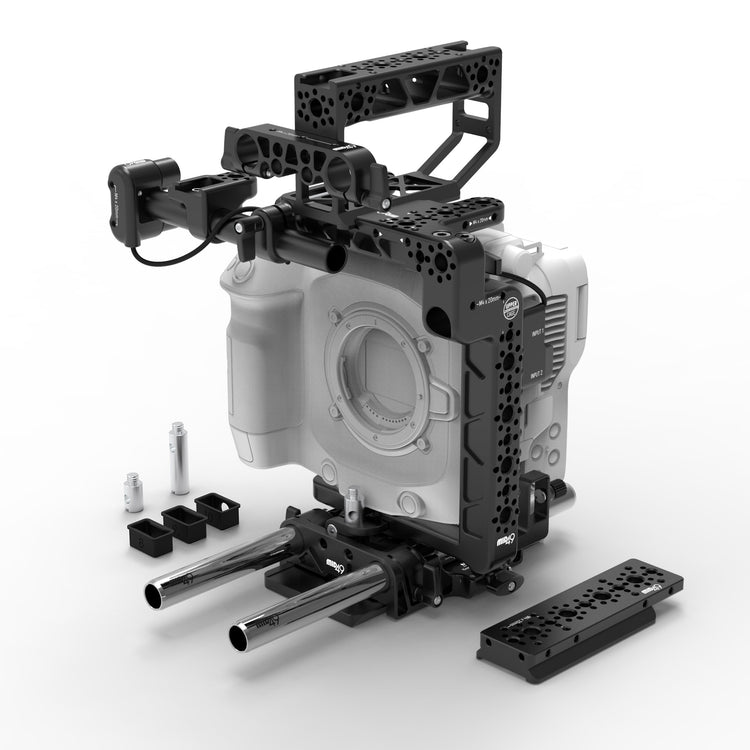

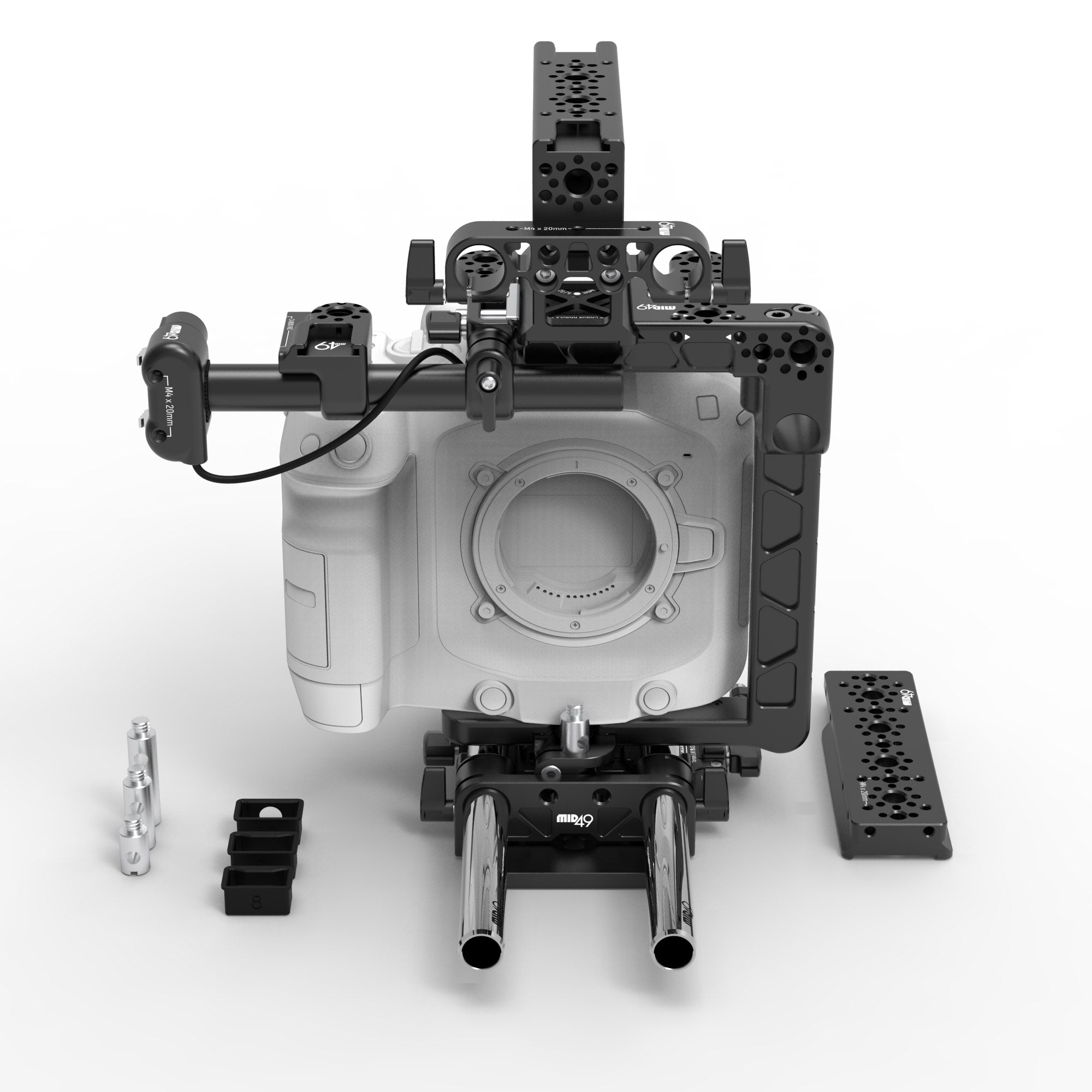

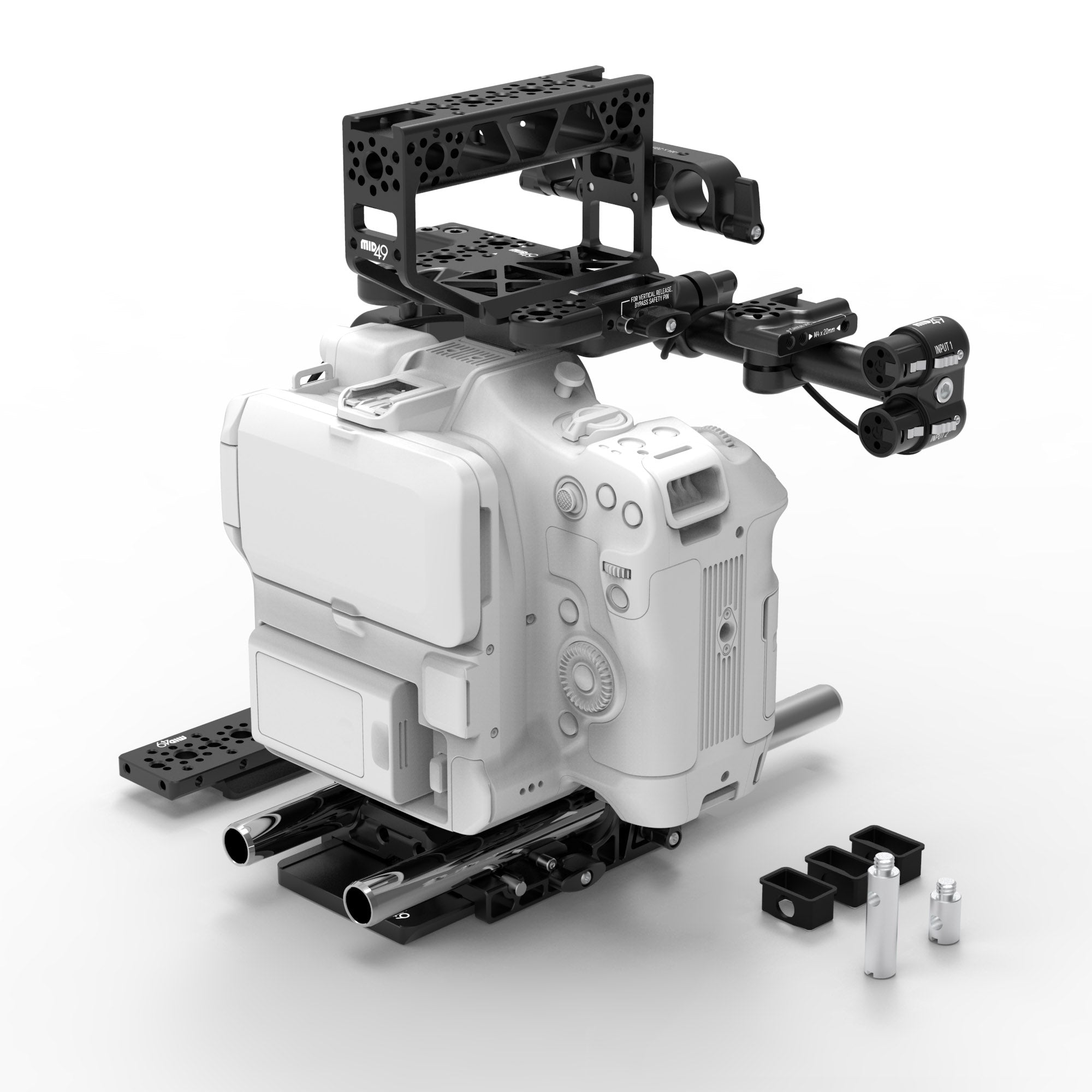

Mid Kit for Canon C80 is an accessory kit that includes:

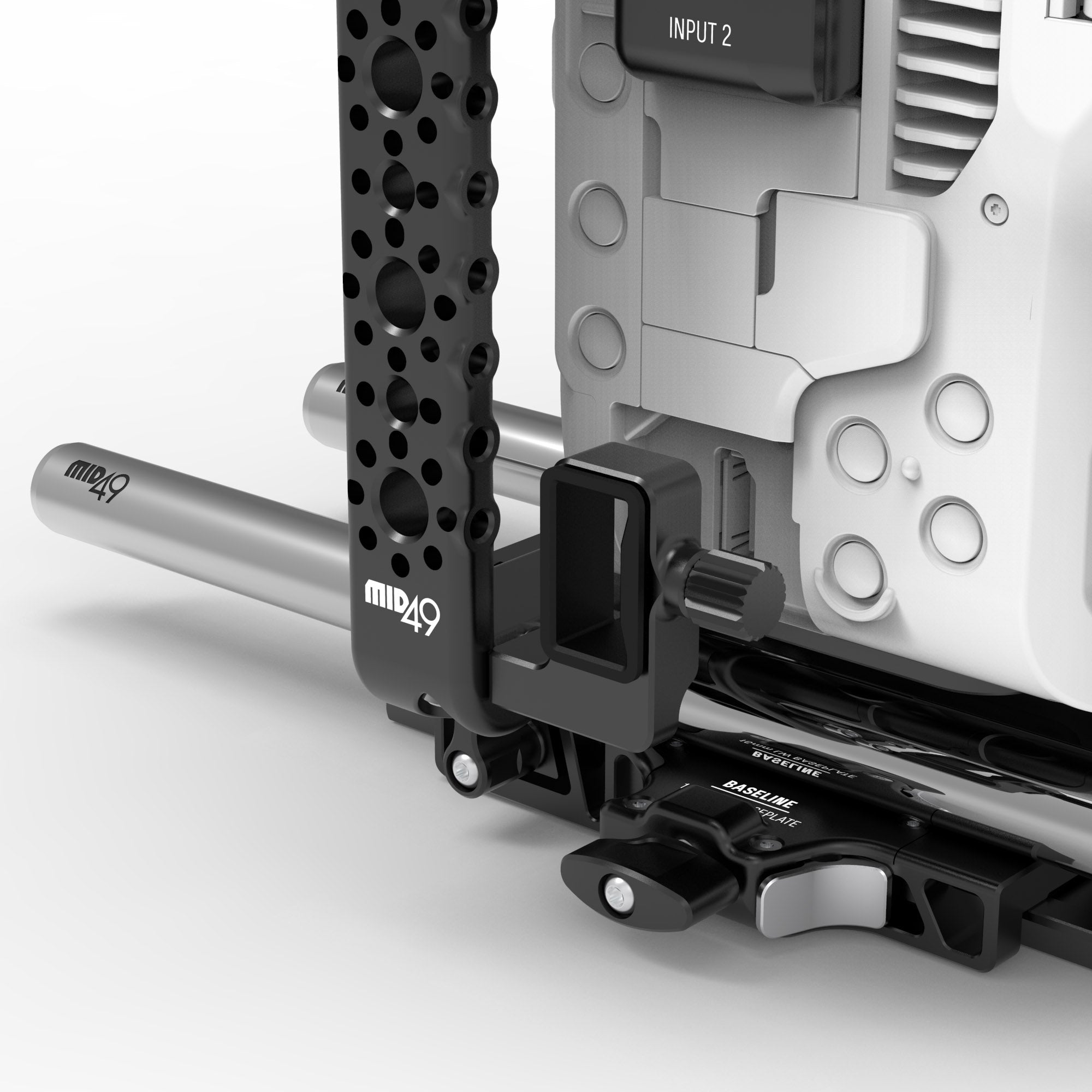

Form fitting cage with 1/4-20, 3/8-16, and M4x20mm threaded holes in several places along with a shoe mount and 15mm rod clamps. ARCA Swiss dovetail slot on top accepts included ARCA Top Handle and Top Plate. The included 15mm accessory rod provide additional mounting for included AB-4 XLR adapter. Lower ARCA Swiss dovetail attaches to included baseplate and lens support adapter attaches to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Core)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Baseline ARRI Dovetail
Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Baseline ARRI Dovetail
Baseline ARRI Dovetail is the lower ARRI mounting plate that interfaces with the Baseline Core.
Sliding camera handle that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes plus two hot shoe mounts.

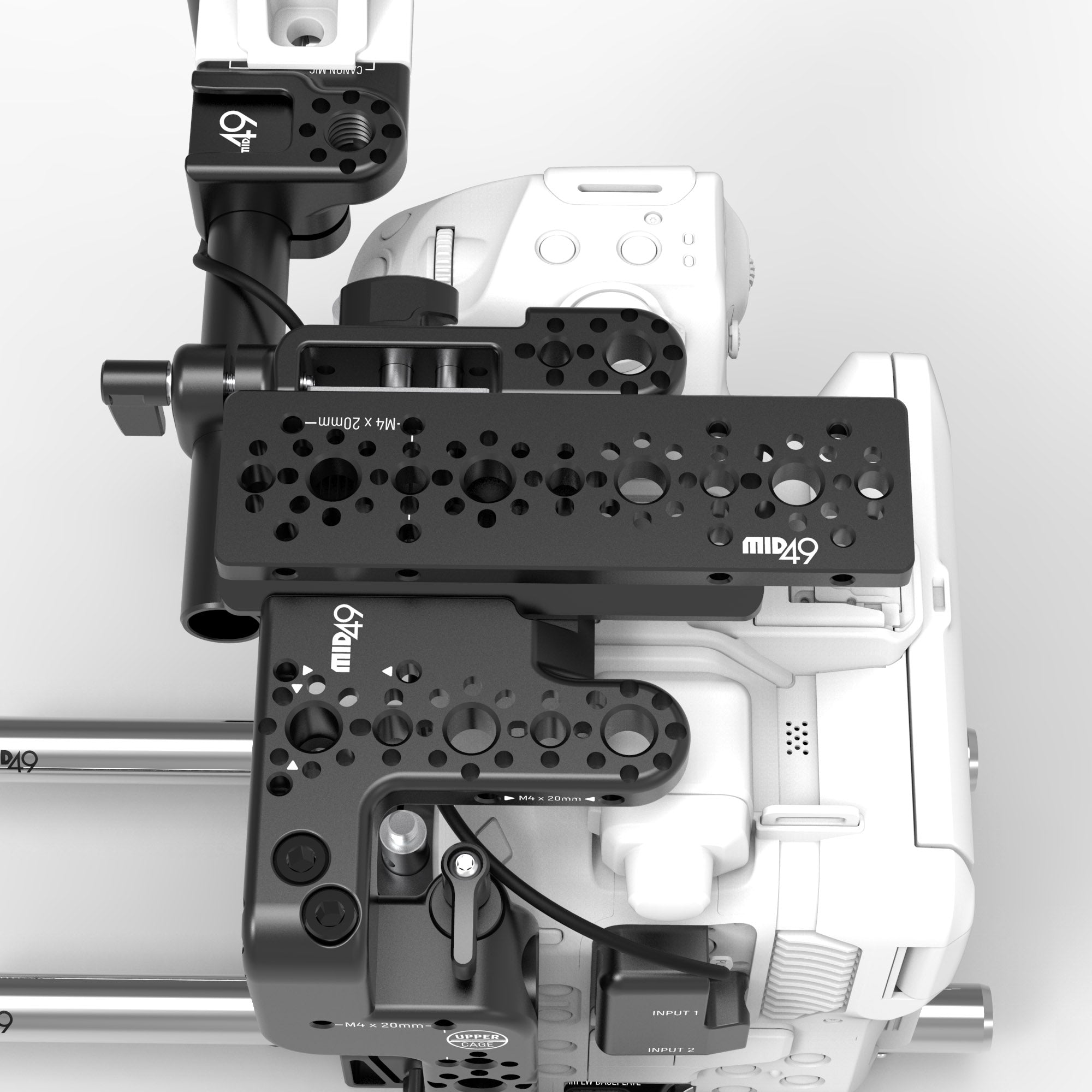

Sliding top plate that has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm threaded holes. 114mm dovetail length.
Attaches to the Top Handle or Top Plate to provide 15mm LW rod support.

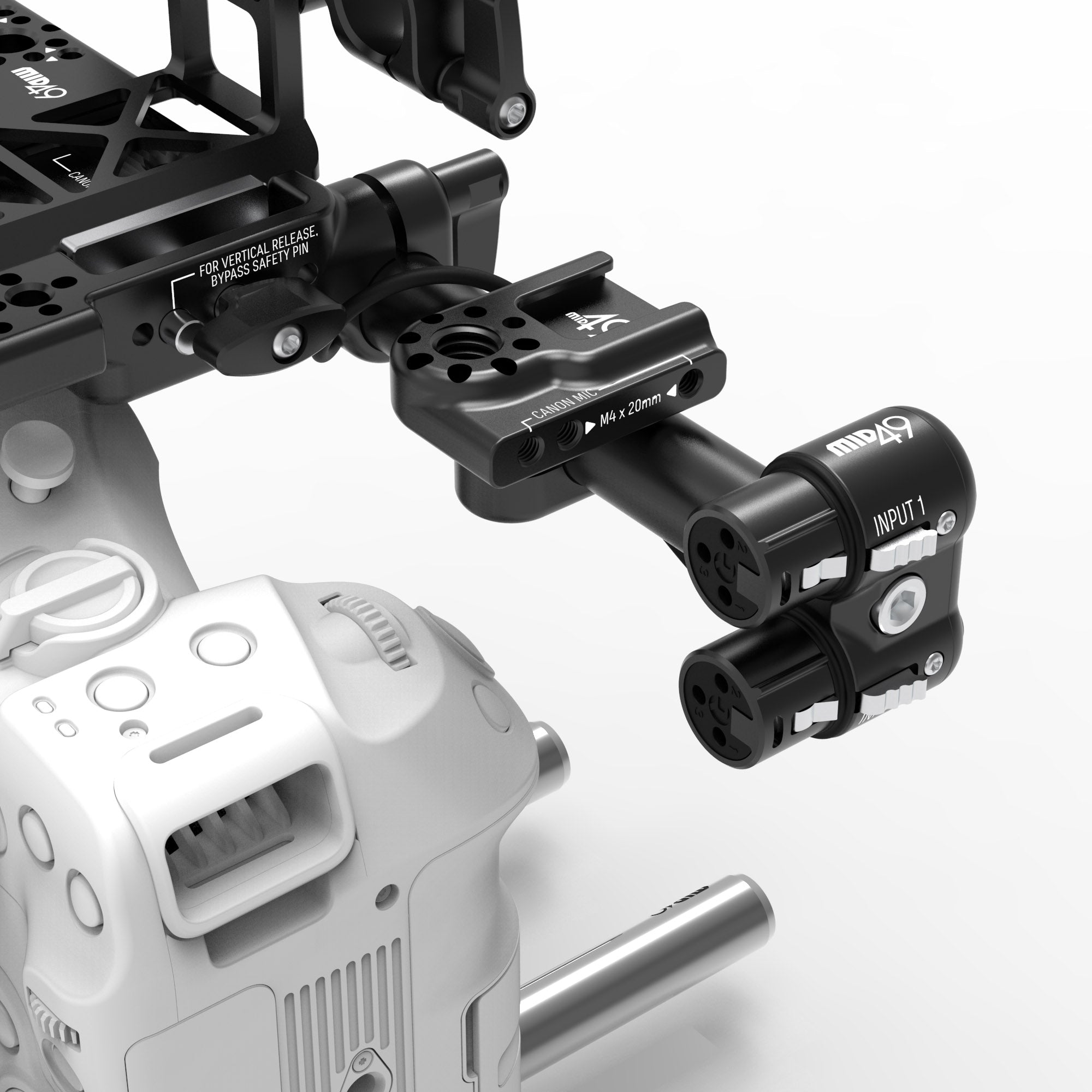

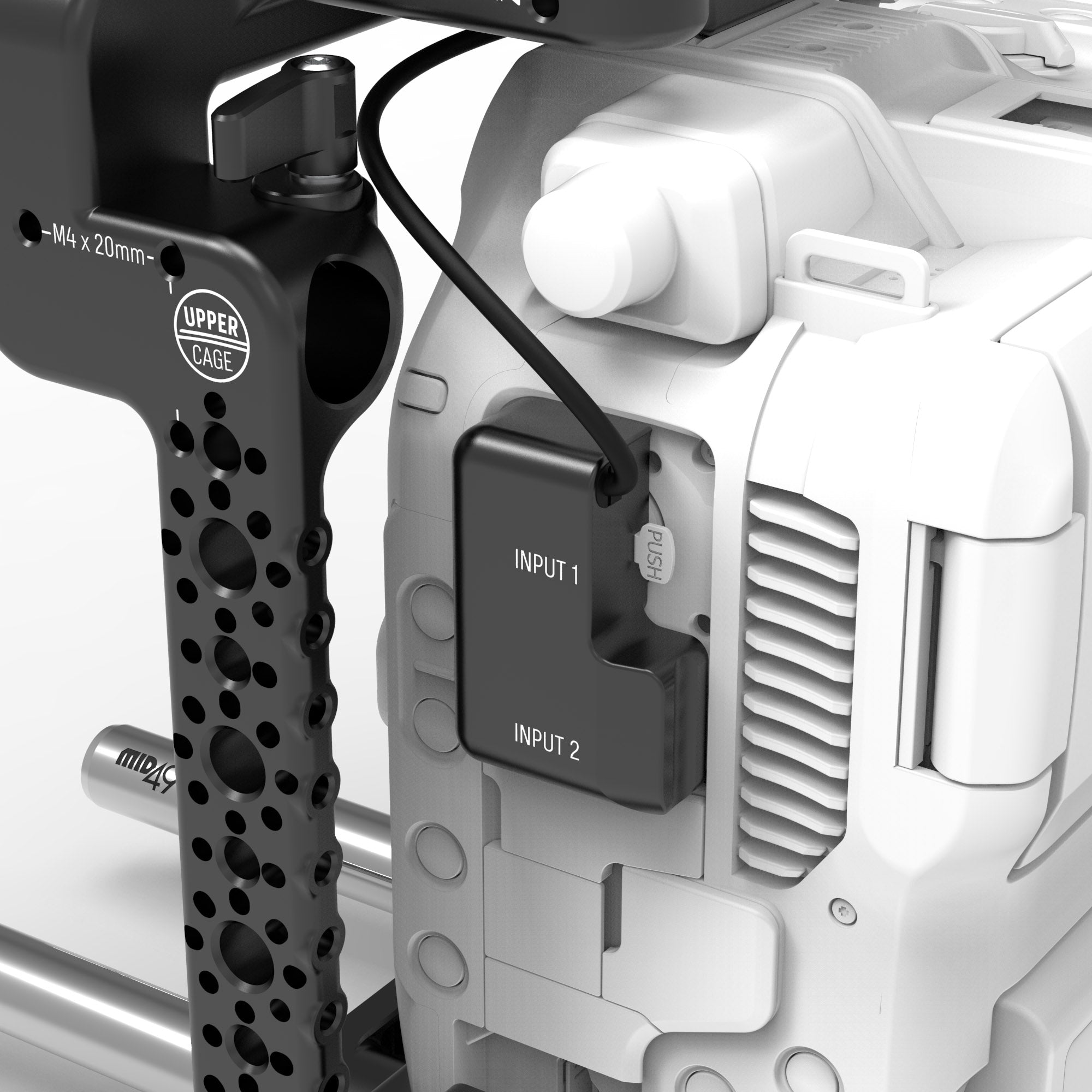

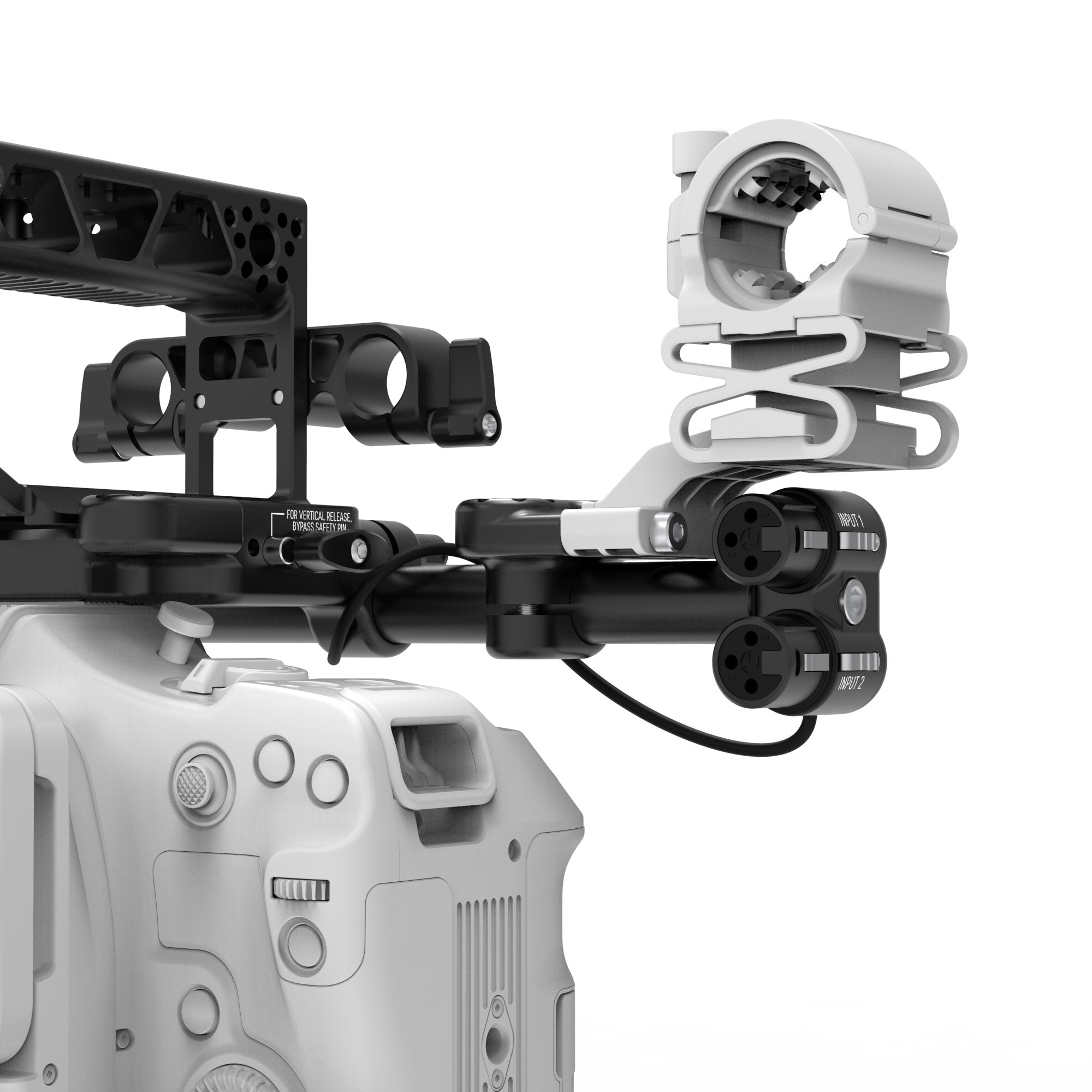

Adapts the camera's two mini XLRs to standard, full-size XLRs.
Product Weight: 42.0oz (1192g)
Product Dimensions (WxLxH): 9.0 x 7.2 x 10.26in (228 x 183 x 261mm)
Product Dimensions (WxLxH): 9.0 x 7.2 x 10.26in (228 x 183 x 261mm)
