Description

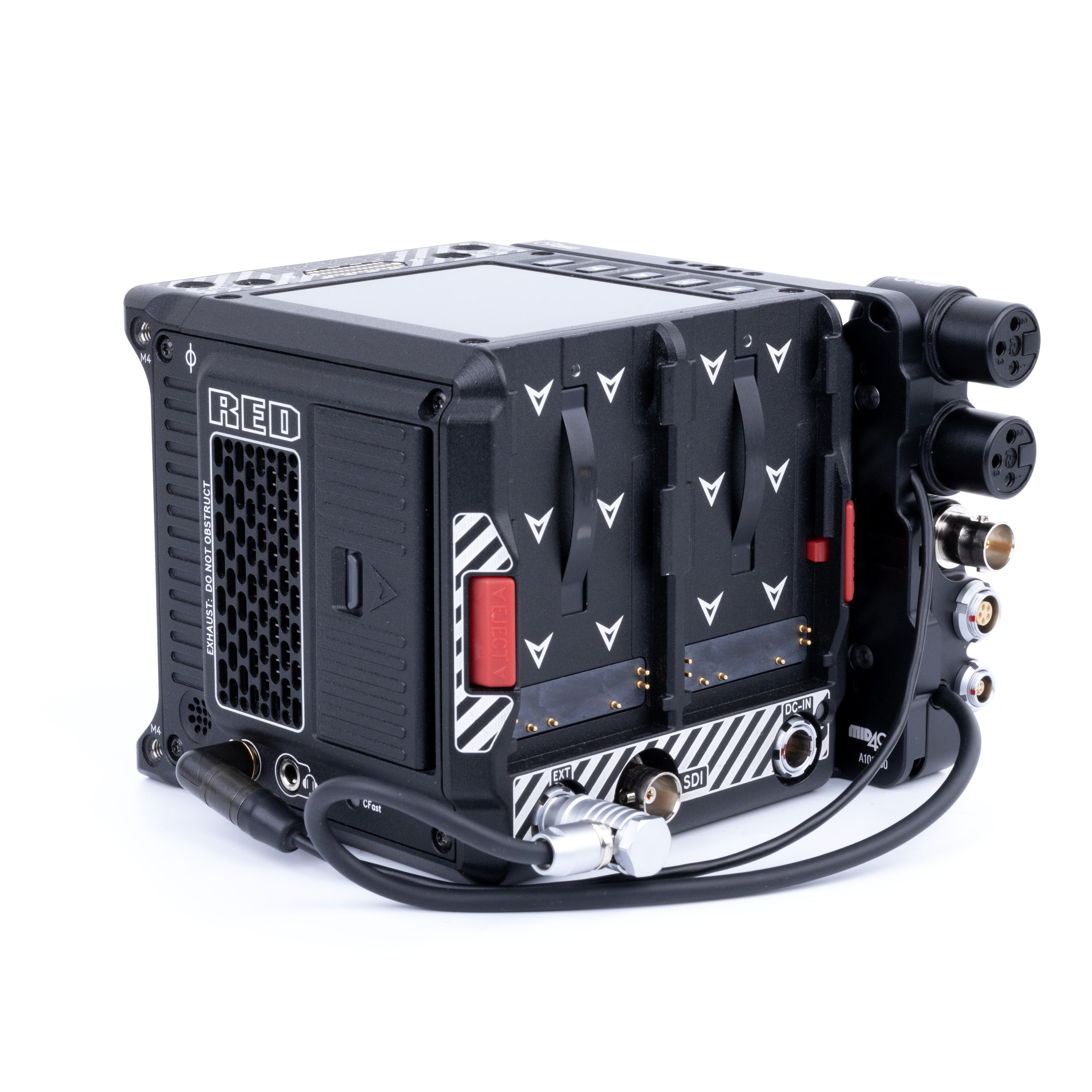

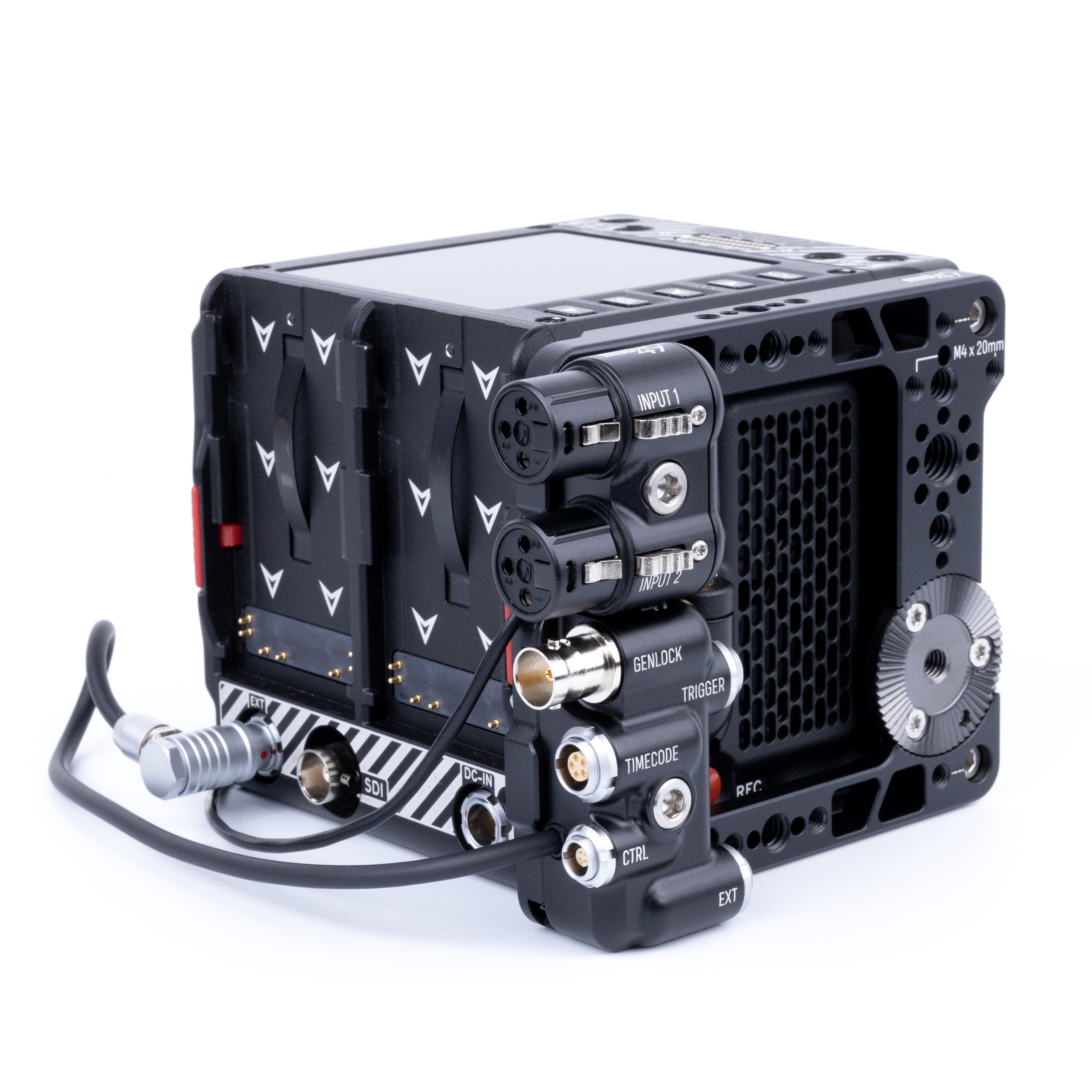

RED Komodo- Breakout Boxes and Side Plate Bundle includes:
RED Komodo Breakout Side Plate
A mounting plate that attaches to the side of the RED Komodo and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Rear 1/4-20's provide ideal mounting locations for breakout boxes, and recessed cable loops in the side plate allow for clean cable management. See the install guide video here.
AB-3 (RED Komodo, DSMC2, DSLR, Stereo 3.5mm TRS)
A passive adapter that converts the camera's 3.5mm plug to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.
EB-1 (RED Komodo, Komodo-X, V-Raptor)
An EXT port converter that provides industry-standard connectors:
| Genlock | 75-ohm BNC |
| Timecode | 5-pin 0B |
| CTRL | 4-pin 00 |
| Trigger | 3-pin Fischer |
| EXT Pass-Through | 9-pin 0B |
Product Weight: 7.00oz (200g)
Product Dimensions (WxLxH): 4.69 x 3.72 x 1.28in (119 x 95 x 33mm)
