Description

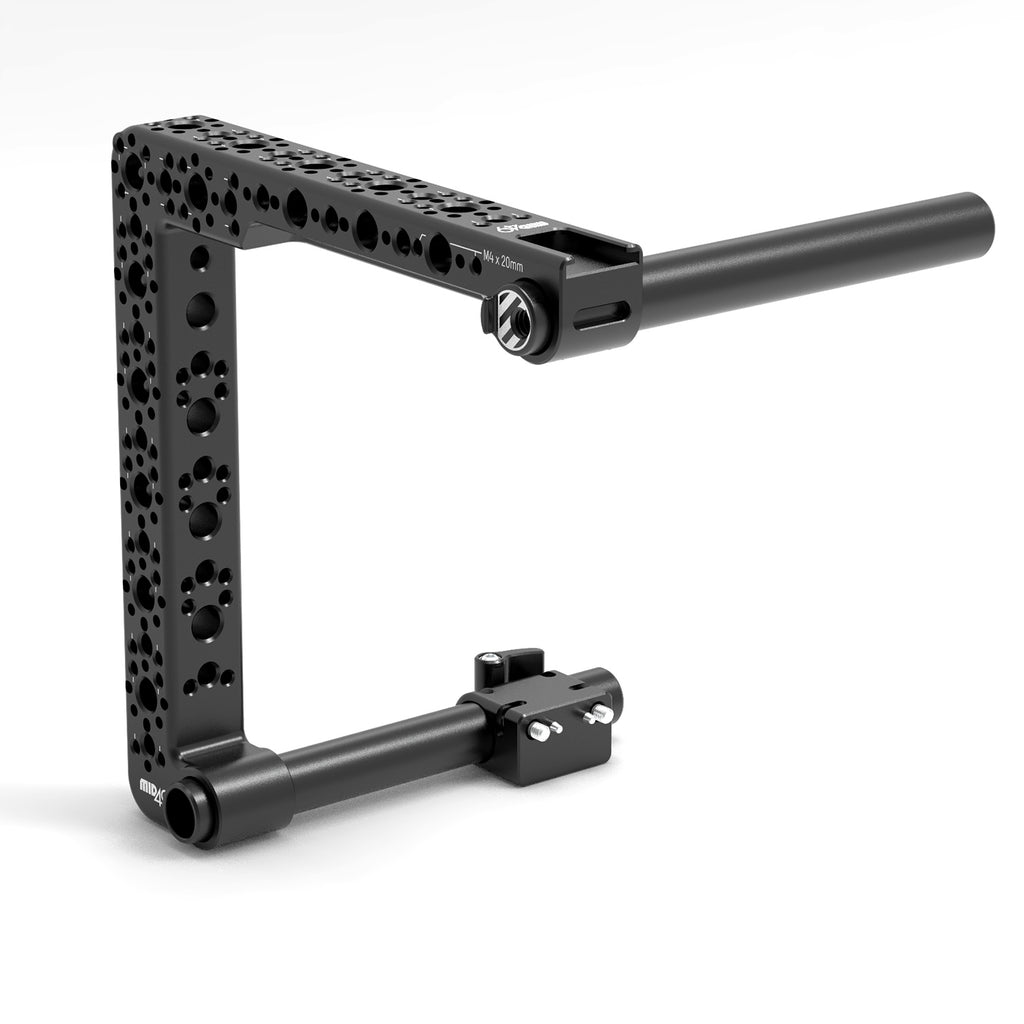

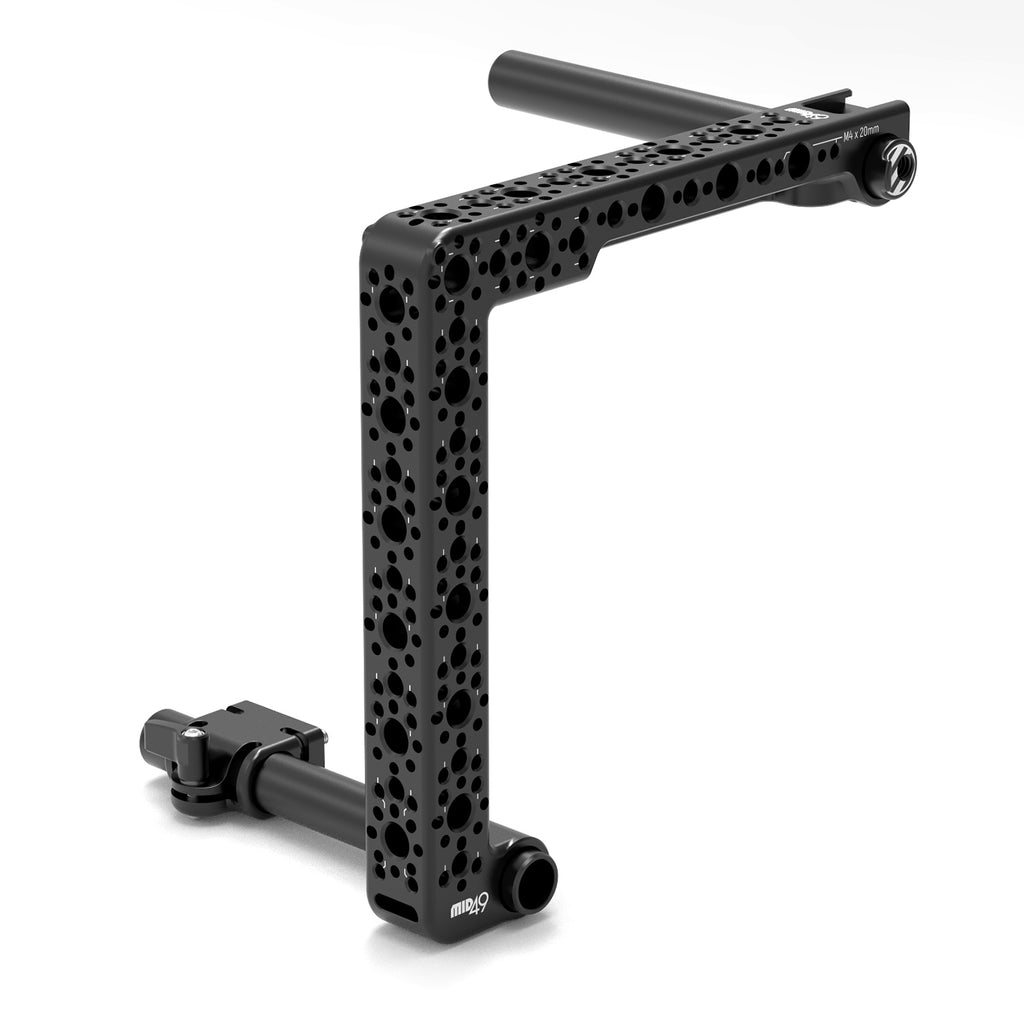

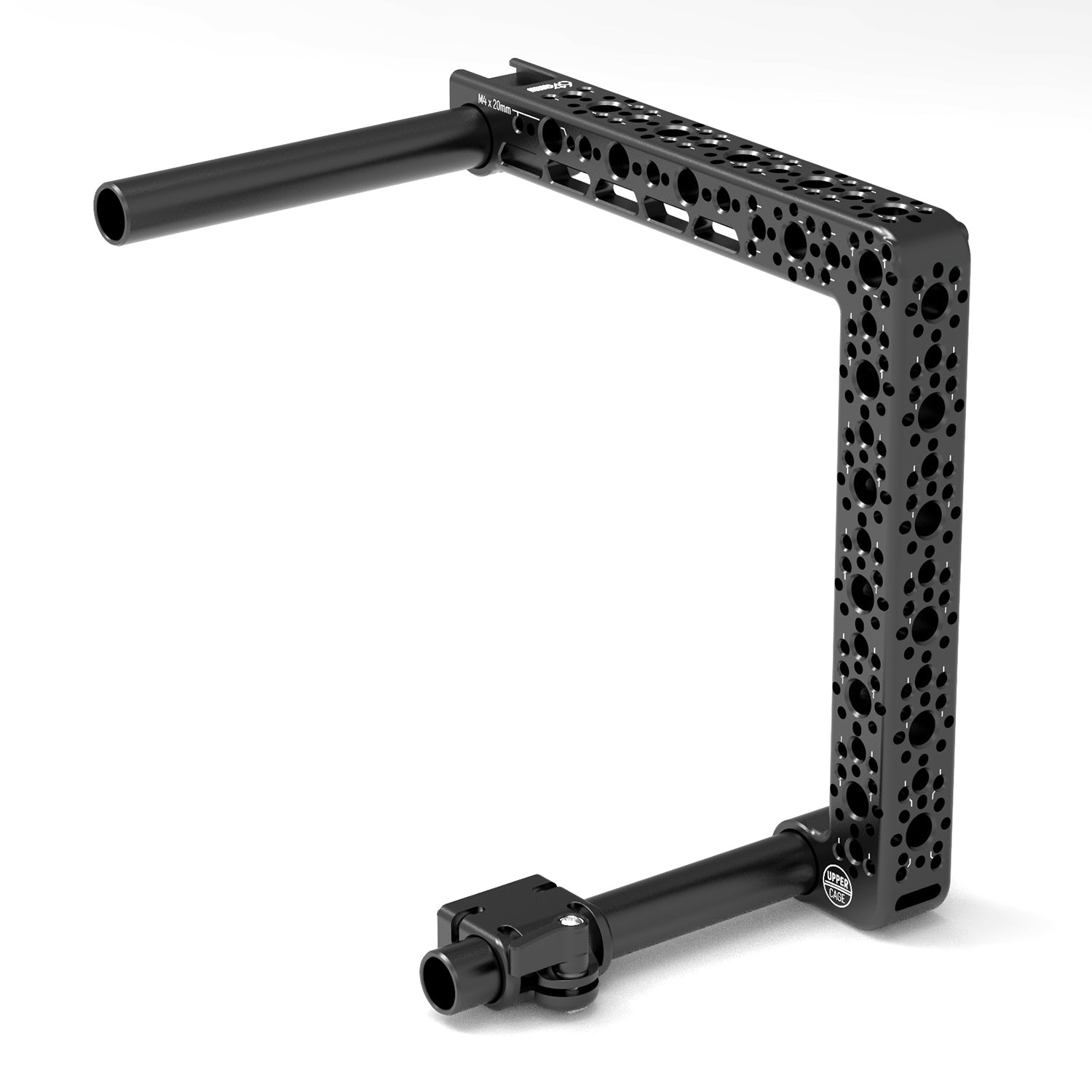

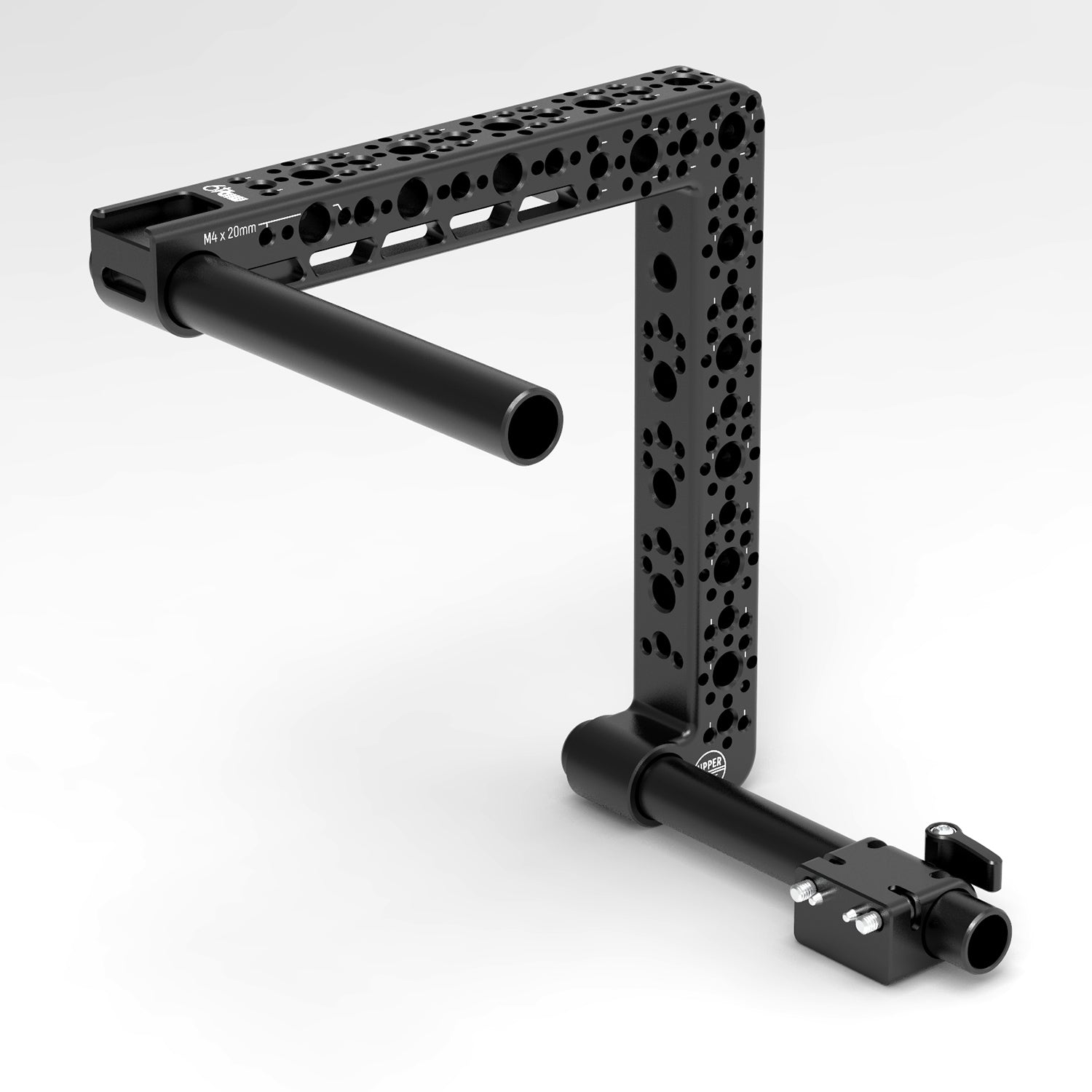

Right Side Bracket (Upper Cage) attaches to the Upper Cages by two included 15mm rods. The top rod has a special recess and 1/4-20 threaded hole to accept the audio breakout boxes AB-3 (Fujifilm GFX100 II), AB-4 (Canon C80, C70), or AB-6 (Blackmagic FF), depending on which camera you have.
Choose between the Right Side Bracket for the GFX, or Blackmagic/Canon C80/C70 versions.
The included lower 15mm rod clamp attaches to the rear of the Upper Cage bottom plate by two M4 screws and locating pins.
Arrays of 1/4-20 and 3/8-16 threaded holes with ARRI accessory pins are available on many sides along with M4x20mm holes. The top front features a shoe mount for adding the optional Microphone Shock Mount (Hot Shoe).
Product Weight: 9.60oz (274g)
Product Dimensions (WxLxH): 6.49 x 6.71 x 0.86in (165 x 170 x 22mm)
