TWIST Mount EVF Kit with Knuckle

SKU: M49-EVF-KIT-0

Price:
Sale price$210.00

Description

TWIST Mount EVF Kit with Knuckle includes the Double Sided NATO Rail to 15mm Rod, which can attach to a sideways 15mm rod clamp like the optional items Multi-Function Rod Bracket (MFRB 15mm LW), Single 15mm Rod Clamp (M4 x 20mm), or Canon 1/4-20 Striped Rosette 15mm Rod Clamp (sold separately).

The NATO rail has built-in variable friction via the thumbscrew, and safety pins are on each end to prevent accidental accessory removal.

Included TWIST Mount EVF Knuckle has a NATO clamp on one end and a variable friction 15mm mount on the other. With the variable friction design, you can grab and twist the monitor without loosening the thumbscrew.

Choose your Kit:
  • TWIST Mount EVF Kit with Knuckle Only
    • Includes the NATO rail and Knuckle described above
  • TWIST Mount EVF Kit for Canon C400, C300mkIII, C500mkII, LM-V2
    • Includes the NATO rail, Knuckle, and Canon Monitor Spud
    • Works with Canon C400, C300mkIII, C500mkII, and LM-V2
  • TWIST Mount EVF Kit with ARRI M6 Rosette
    • Includes the NATO rail, Knuckle, and male ARRI M6 Rosette Spud
    • Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
    • Works with Z CAM 2.89" EVF101
    • Works with original PORTKEYS OEYE
  • TWIST Mount EVF Kit
    • Includes the NATO rail, Knuckle, and male ARRI 1/4-20 Spud
    • Works with Blackmagic Design PYXIS Monitor
    • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
    • Works with ARRI Camera Control Monitor CCM-1
  • TWIST Mount EVF Kit with ARRI 3/8-16
    • Includes the NATO rail, Knuckle, and male ARRI 3/8-16 Spud
    • Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)

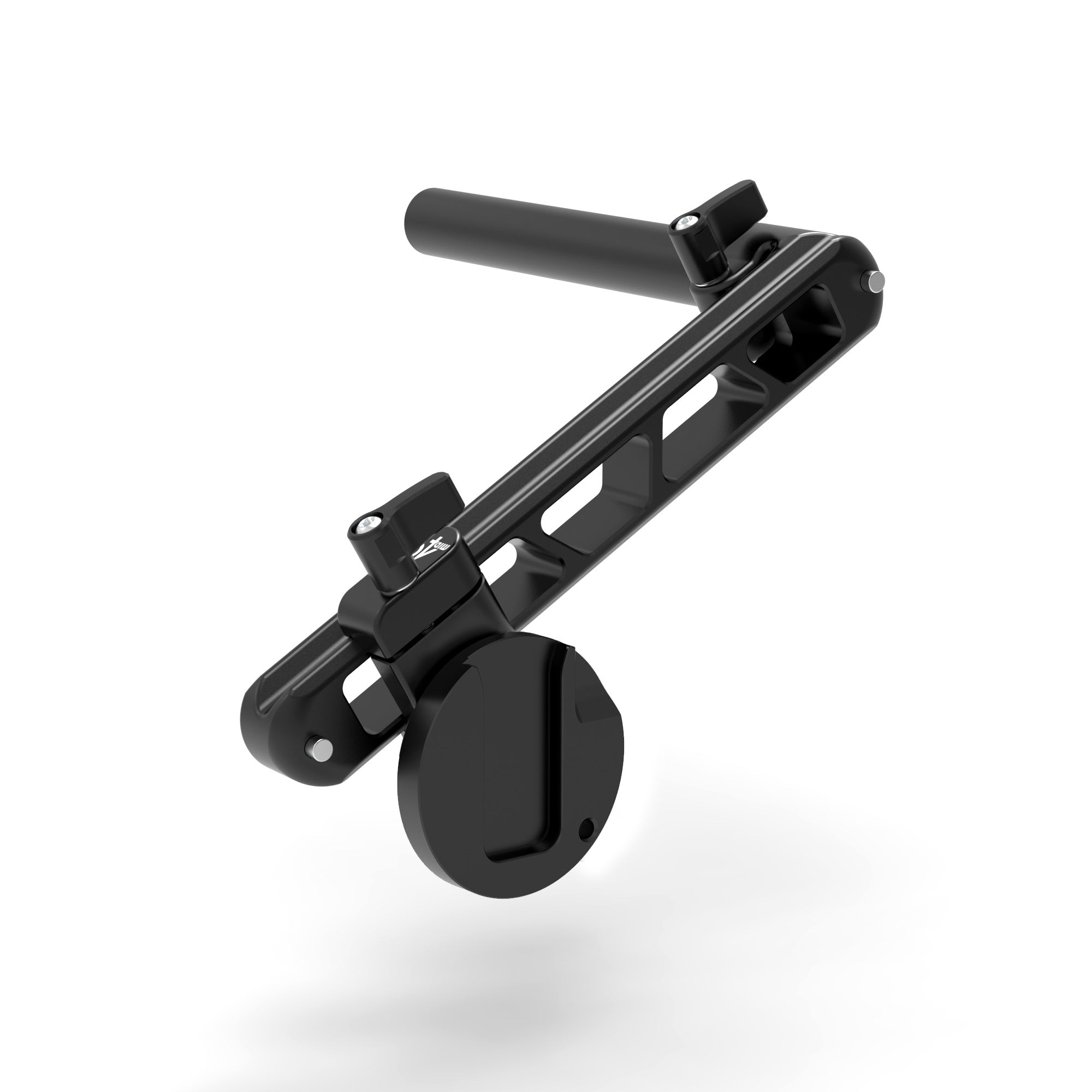

  • TWIST Mount EVF Kit with Sony / PortKeys 1/4-20
    • Includes the NATO rail, Knuckle, and male Sony 1/4-20 Spud
    • Works with Sony Burano directly and also the EVF Pivot Adapter
    • Works with PORTKEYS LH7P (be careful, the monitor is plastic)
      Works with PORTKEYS 5” BM5 IV
  • TWIST Mount EVF Kit with L Bracket 1/4-20
    • Includes the NATO rail, Knuckle, and L Bracket with 1/4-20 screws
    • Works with PORTKEYS LEYE III (note their HDMI cable may conflict with NATO rail in certain positions
    • Works with original RED DSMC1 EVF
  • TWIST Mount EVF Kit with Female ARRI 1/4-20
    • Includes the NATO rail, Knuckle, and female ARRI 1/4-20 Spud
    • Works with any 1/4-20 product, including those with ARRI spaced locating pins (3mm diameter pin on 10.4mm spacing center to center)
  • TWIST Mount EVF Kit with Female ARRI 3/8-16
    • Includes the NATO rail, Knuckle, and female ARRI 1/4-20 Spud
    • Works with any 3/8-16 product, including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)
  • TWIST Mount EVF Kit for 1/4-20 Rosette
    • Includes the NATO rail, Knuckle, and 1/4-20 Rosette Spud
    • Works with 1/4-20 Rosette on the Kinefinity EAGLE SDI (or HDMI) e-Viewfinder
    • Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
    • This is NOT a regular ARRI rosette
  • TWIST Mount EVF Kit for ARRI Viewfinder Wedge
    • Includes the NATO rail, Knuckle, and male ARRI M6 Rosette Spud
    • Works with ARRI standard EVF wedge products like EVF-1, EVF-2, MVF-1, MVF-2
    • Works with other ARRI wedge adapters like ARRI VFA-4, K2.0015520, etc.
    • Works with 3rd party products that utilize ARRI-style mounting wedges.
  • TWIST Mount EVF Kit with Old-Style SmallHD 1/4-20
    • Includes the NATO rail, Knuckle, and spud for older style SmallHD 1/4-20 with wide locating tabs
    • Works with legacy 5" SmallHD monitors like 501, 502, Focus 5, Focus Bolt, Action 5
    • Works with legacy 7" SmallHD monitors like 701, 702, Focus 7
  • TWIST Mount EVF Kit for Blackmagic Viewfinder Wedge
    • Includes the NATO rail, Knuckle, and spud for Blackmagic Design dovetail wedges
    • Works with URSA Cine EVF - CINEURSAB/EVF
    • Works with URSA Cine EVF Extension - CINEURSAB/EVFEXT
    • Works with PYXIS Monitor Kit - CINEURSABB/AMKIT
  • TWIST Mount Kit with Monitor Right Angle Adapter + Spud with Old-Style SmallHD 1/4-20
    • Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for Old-Style SmallHD 1/4-20
    • Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
  • TWIST Mount Kit with Monitor Right Angle Adapter + Spud with ARRI 1/4-20
    • Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for ARRI 1/4-20
    • Works with Blackmagic Video Assist (remove locating pins)
    • Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
    • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
    • Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)
  • TWIST Mount Kit with Monitor Right Angle Adapter + Spud with ARRI 3/8-16
    • Includes the NATO rail, Knuckle, Right Angle Spud Adapter, and spud for ARRI 3/8-16
    • Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)
  • TWIST Mount Kit with Monitor Right Angle Adapter + Spud with Sony / PortKeys 1/4-20
    • Works with PORTKEYS BM5 IV, BM5 IV WR, LH5P II
    • Works with PORTKEYS PT5 II, PT6
    • Works with PORTKEYS LH7P, LH7H, HD7H
    • Works with PORTKEYS BM7 II DS U, HS8
  • TWIST Mount EVF Combo Kit
    • Includes the NATO rail, Knuckle, and ARRI M6 Rosette, ARRI 1/4-20, ARRI 3/8-16, L Bracket 1/4-20, Female ARRI 1/4-20, Female ARRI 3/8-16
    • Note this does not include the specific Canon, Sony, Blackmagic, ARRI dovetail wedge, Kinefinity, and old SmallHD attachments




Double Sided NATO Dimensions:
Product Weight: 2.89oz (82g)
Product Dimensions (WxLxH): 1.2 x 5.9 x 5.8in (31 x 150 x 148mm)

TWIST Mount EVF Knuckle Only Dimensions (See Spud page for Spud Dimensions)
Product Weight: 1.1oz (30g)
Product Dimensions (WxLxH): 1.1 x 2.8 x 0.6in (27 x 72 x 14mm)

  • All Cameras
