TWIST Mount Spud

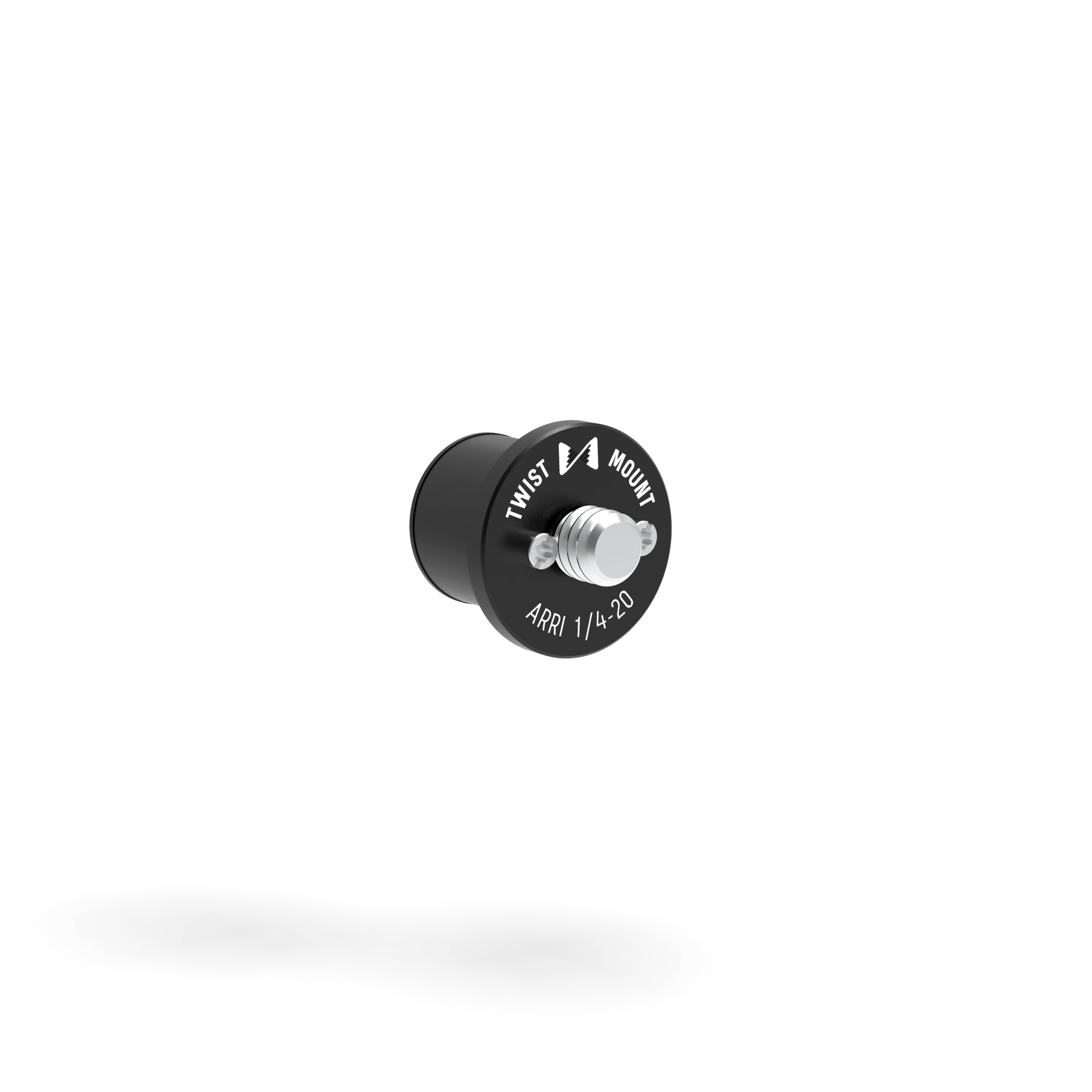

• TWIST Mount Spud with ARRI 1/4-20
  • Works with Blackmagic Design PYXIS Monitor
  • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
  • Works with ARRI Camera Control Monitor CCM-1

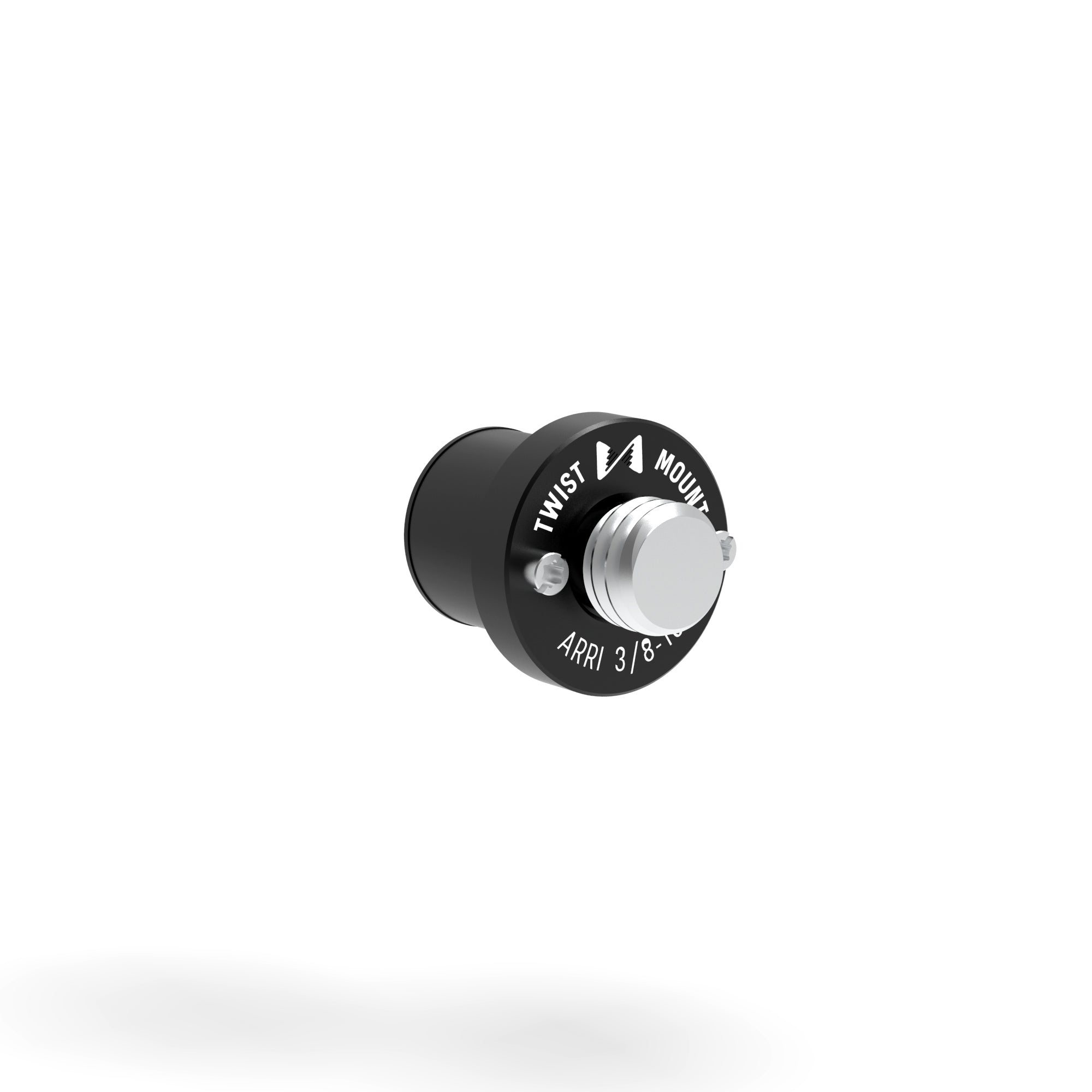

• TWIST Mount Spud with ARRI 3/8-16

  • Works with Atomos Shogun Ultra Monitor-Recorder (ATOMSHG002)
• TWIST Mount Spud with Old-Style SmallHD 1/4-20

  • Works with legacy 5" SmallHD monitors like 501, 502, Focus 5, Focus Bolt, Action 5

  • Works with legacy 7" SmallHD monitors like 701, 702, Focus 7, Cine 7, Indie 7

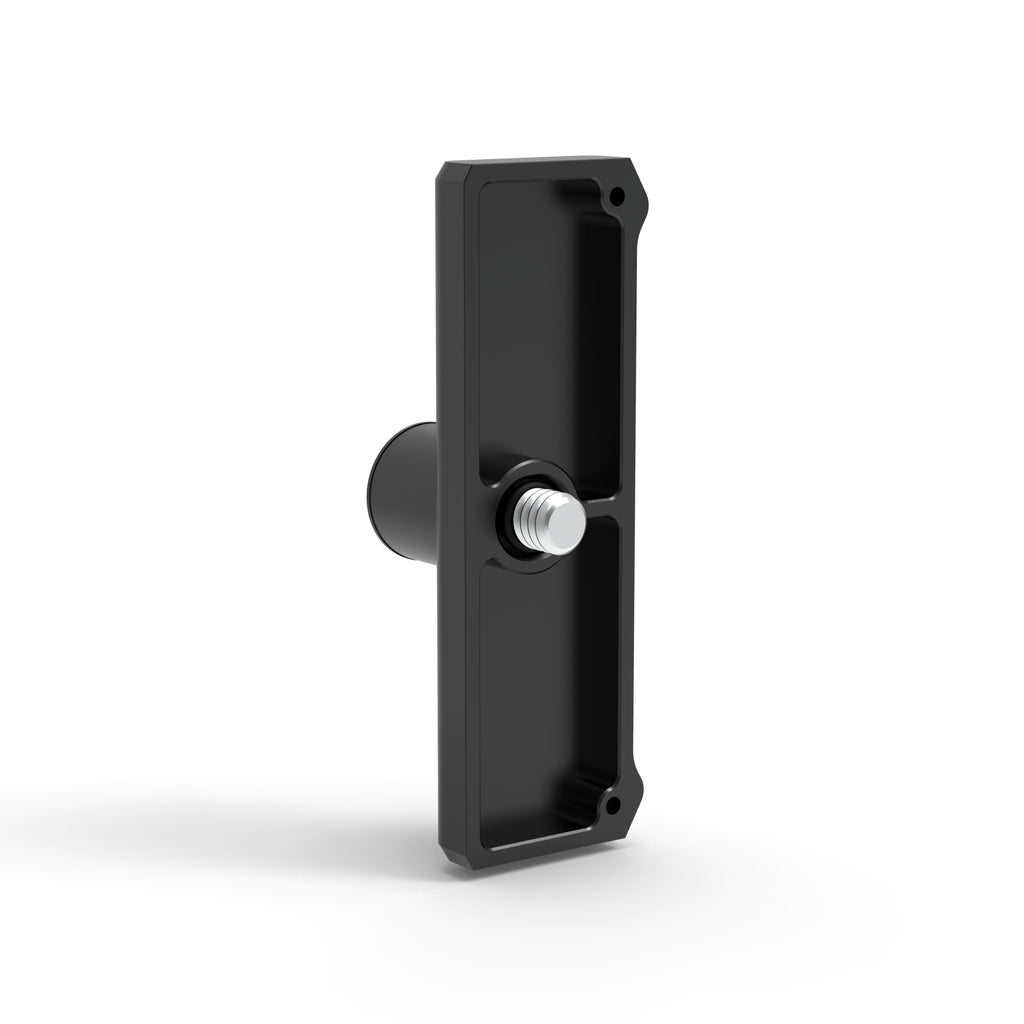

• TWIST Mount Spud for Canon C400, C300mkIII, C500mkII, LM-V2
  • Works with Canon C400, C300mkIII, C500mkII, and LM-V2

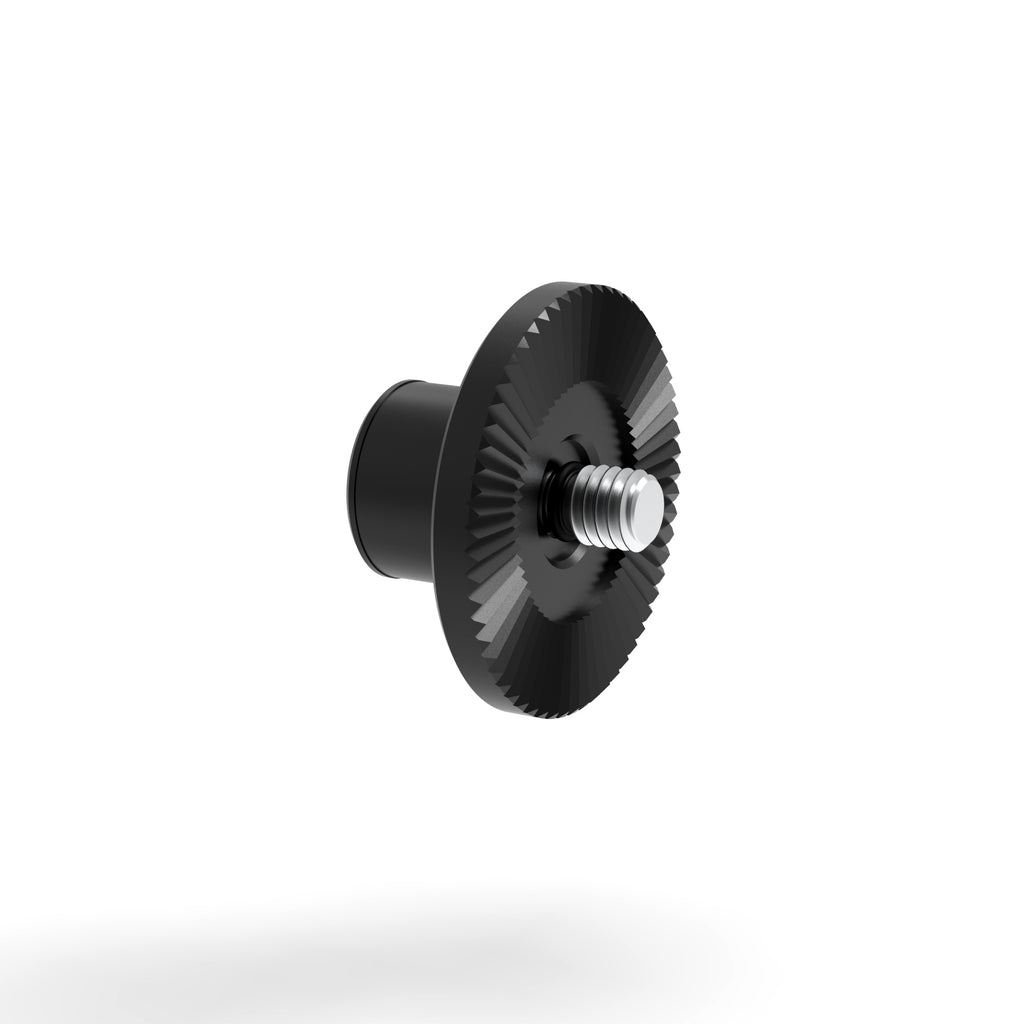

• TWIST Mount Spud with ARRI M6 Rosette

  • Works with Z CAM 2.89" EVF101
  • Works with original PORTKEYS OEYE

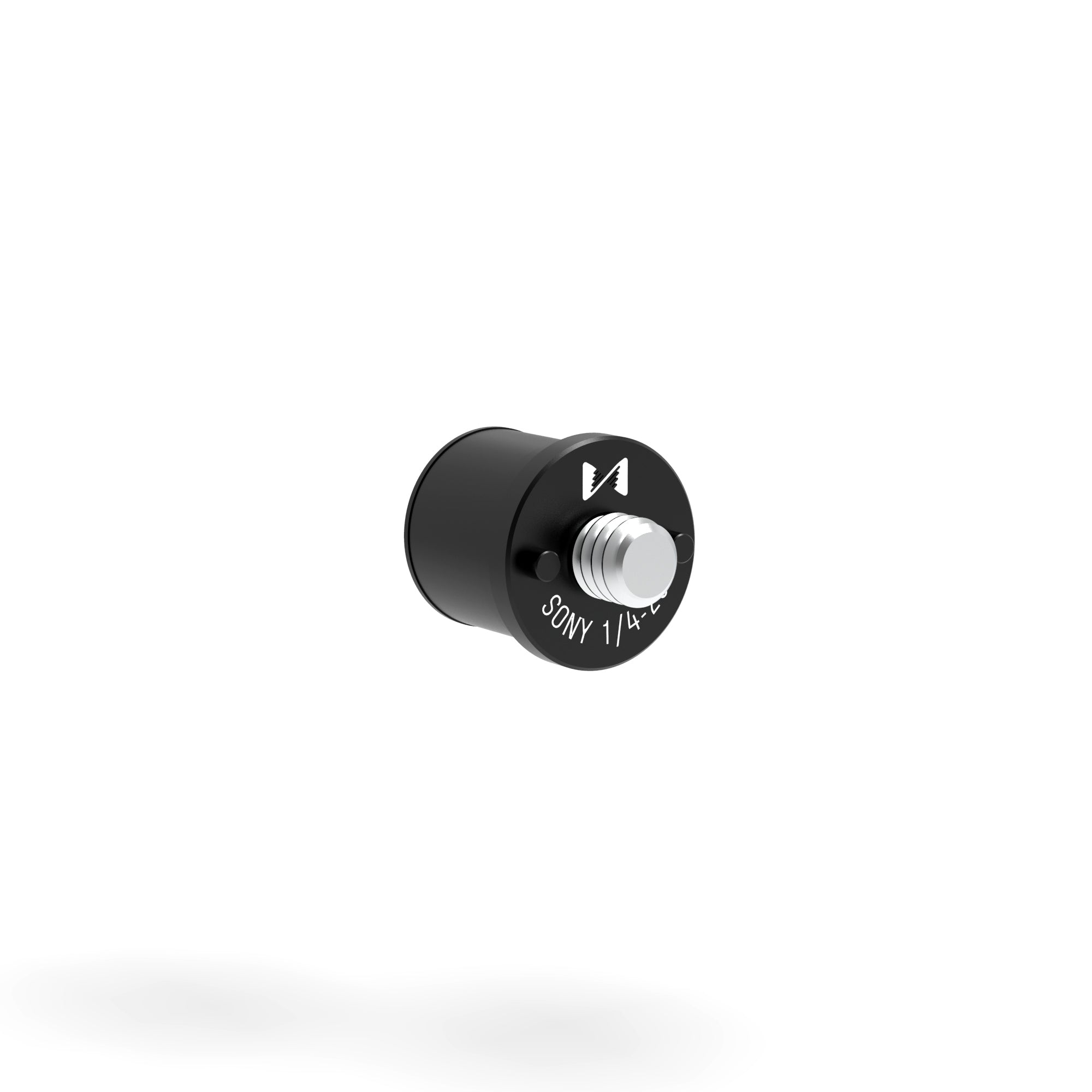

• TWIST Mount Spud with Sony / PortKeys 1/4-20

  • Works with Sony Burano directly and also the EVF Pivot Adapter

  • Works with PORTKEYS LH7P (be careful, the monitor is plastic)
    Works with PORTKEYS 5” BM5 IV

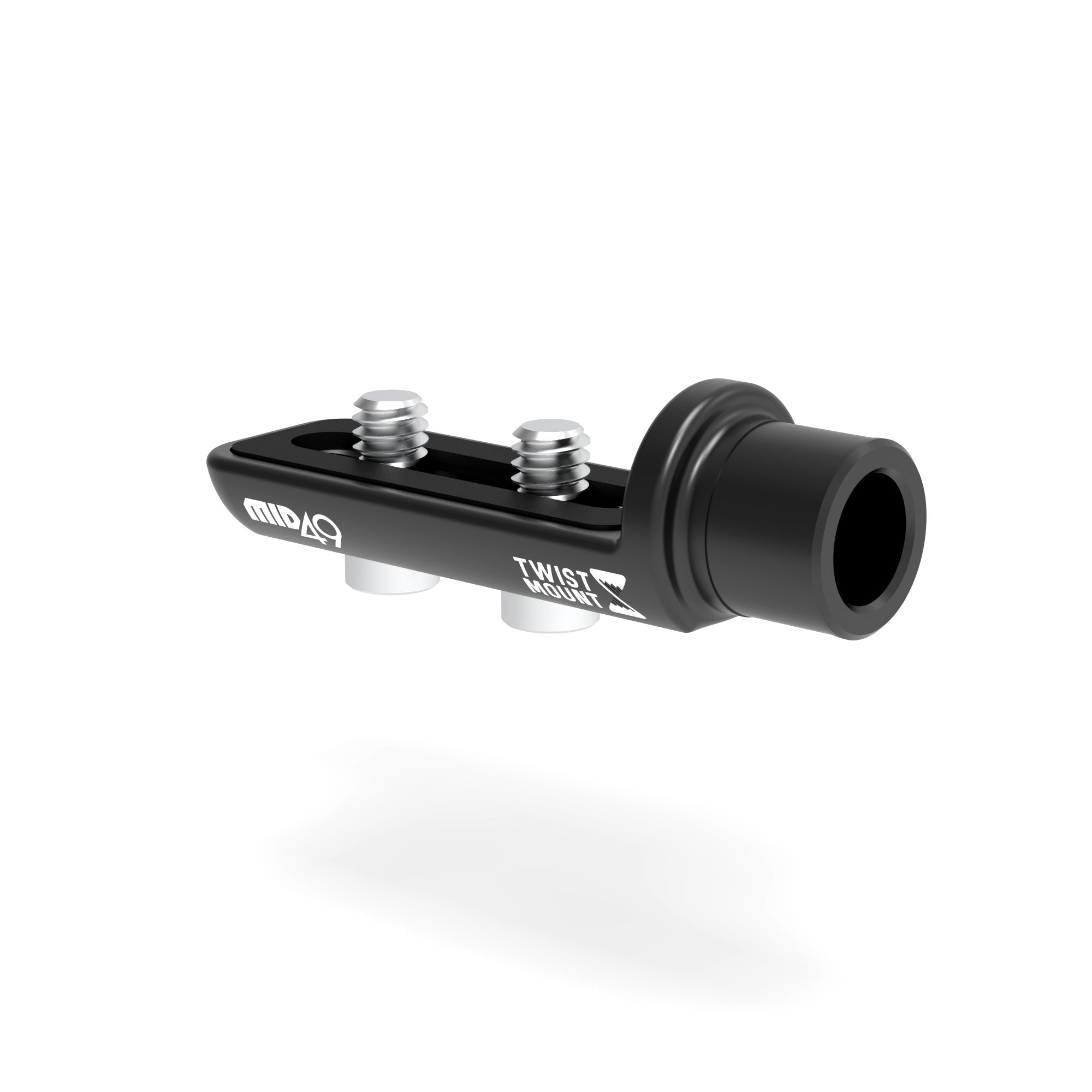

• TWIST Mount Spud with L Bracket 1/4-20

  • Includes the L Bracket with two 1/4-20 screws

  • Works with PORTKEYS LEYE III (note their HDMI cable may conflict with NATO rail in certain positions)

  • Works with original RED DSMC1 EVF

  • This can also be used in combination with the Knuckle to mount wireless transmitters and other accessories to a NATO rail

• TWIST Mount Spud with Female ARRI 1/4-20

  • Works with any 1/4-20 product including those with ARRI spaced locating pins (3mm diameter pin on 10.4mm spacing center to center)

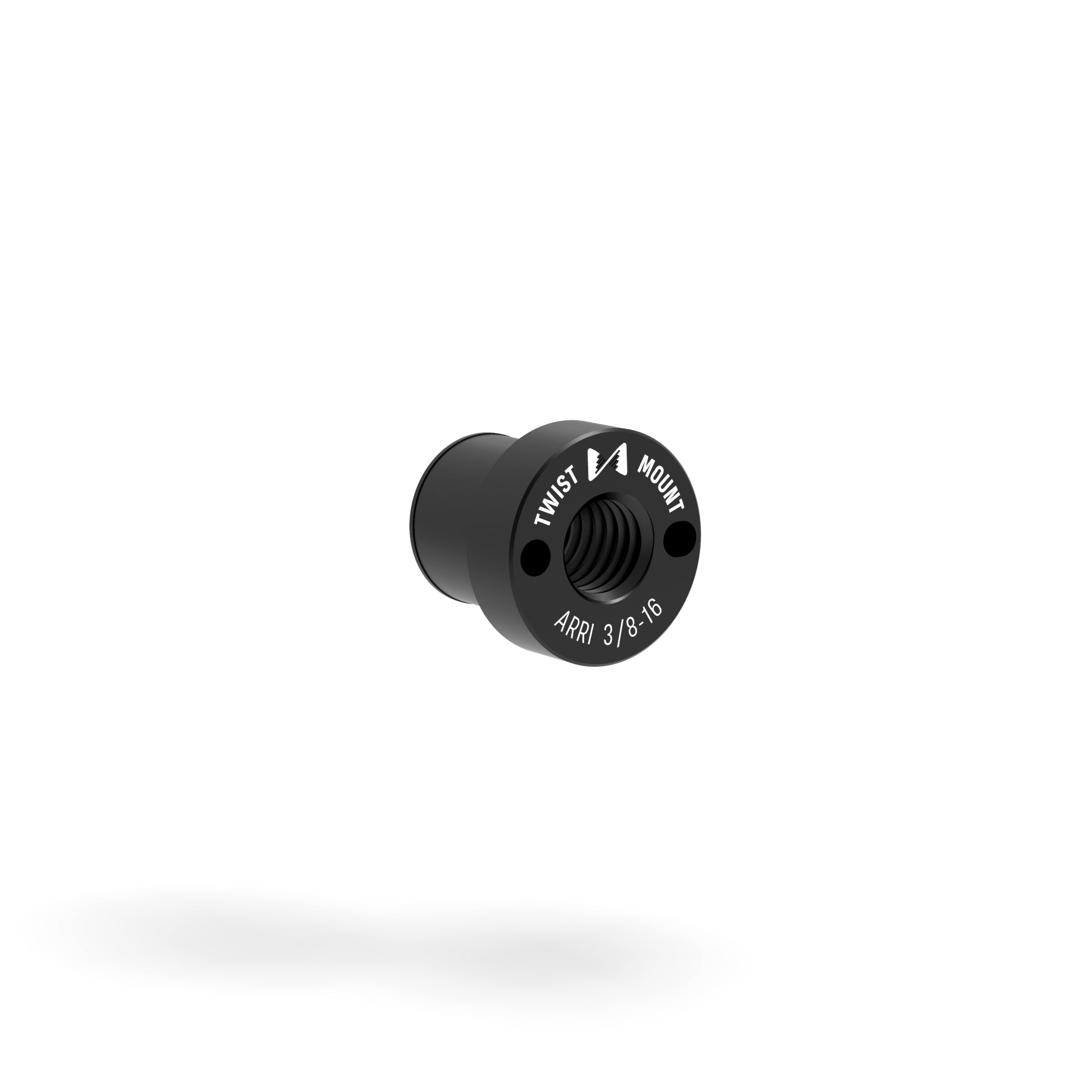

• TWIST Mount Spud with Female ARRI 3/8-16

  • Works with any 3/8-16 product including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)

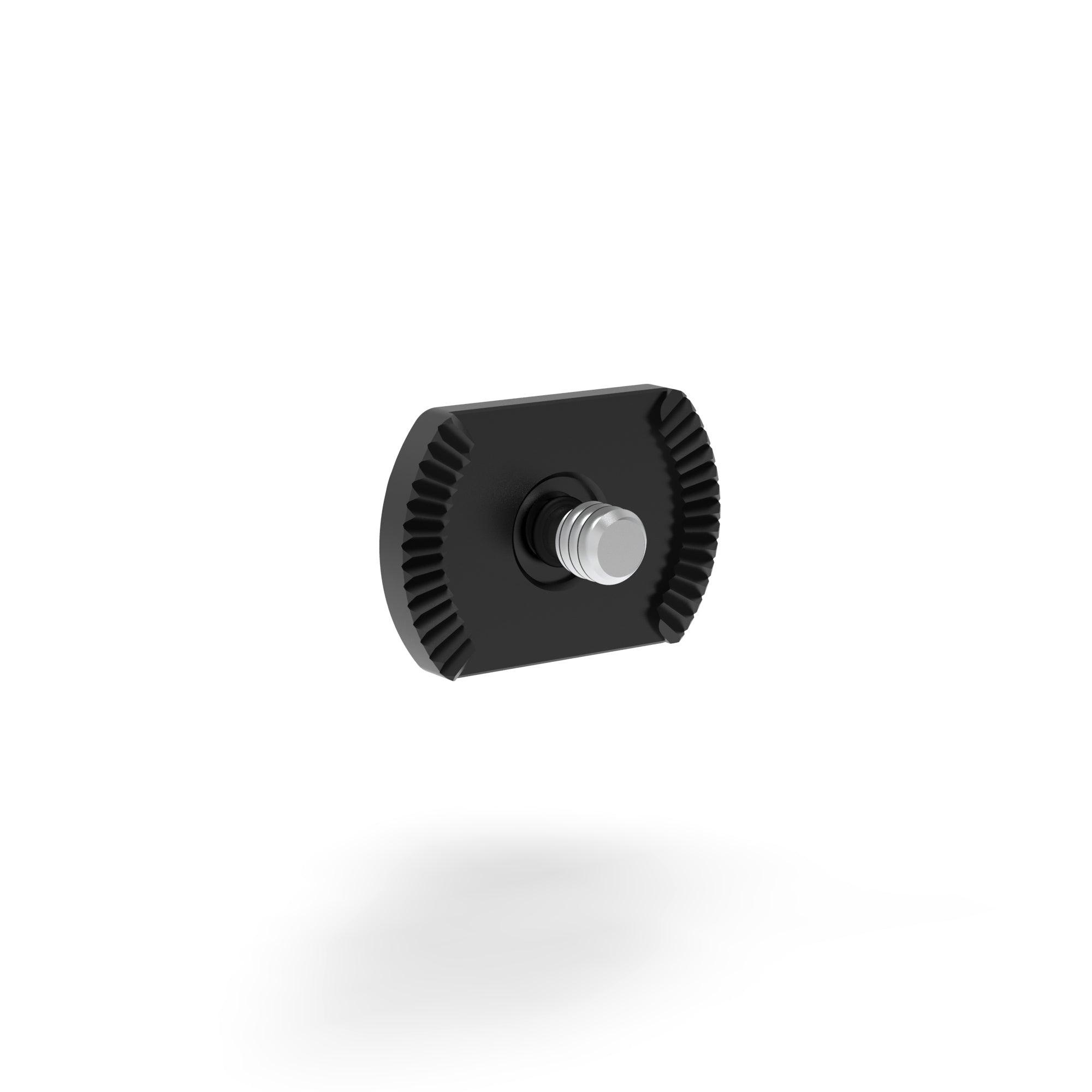

• TWIST Mount Spud for 1/4-20 Rosette
  • Works with 1/4-20 Rosette on the Kinefinity EAGLE SDI (or HDMI) e-Viewfinder

  • Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
  • This is NOT a regular ARRI rosette

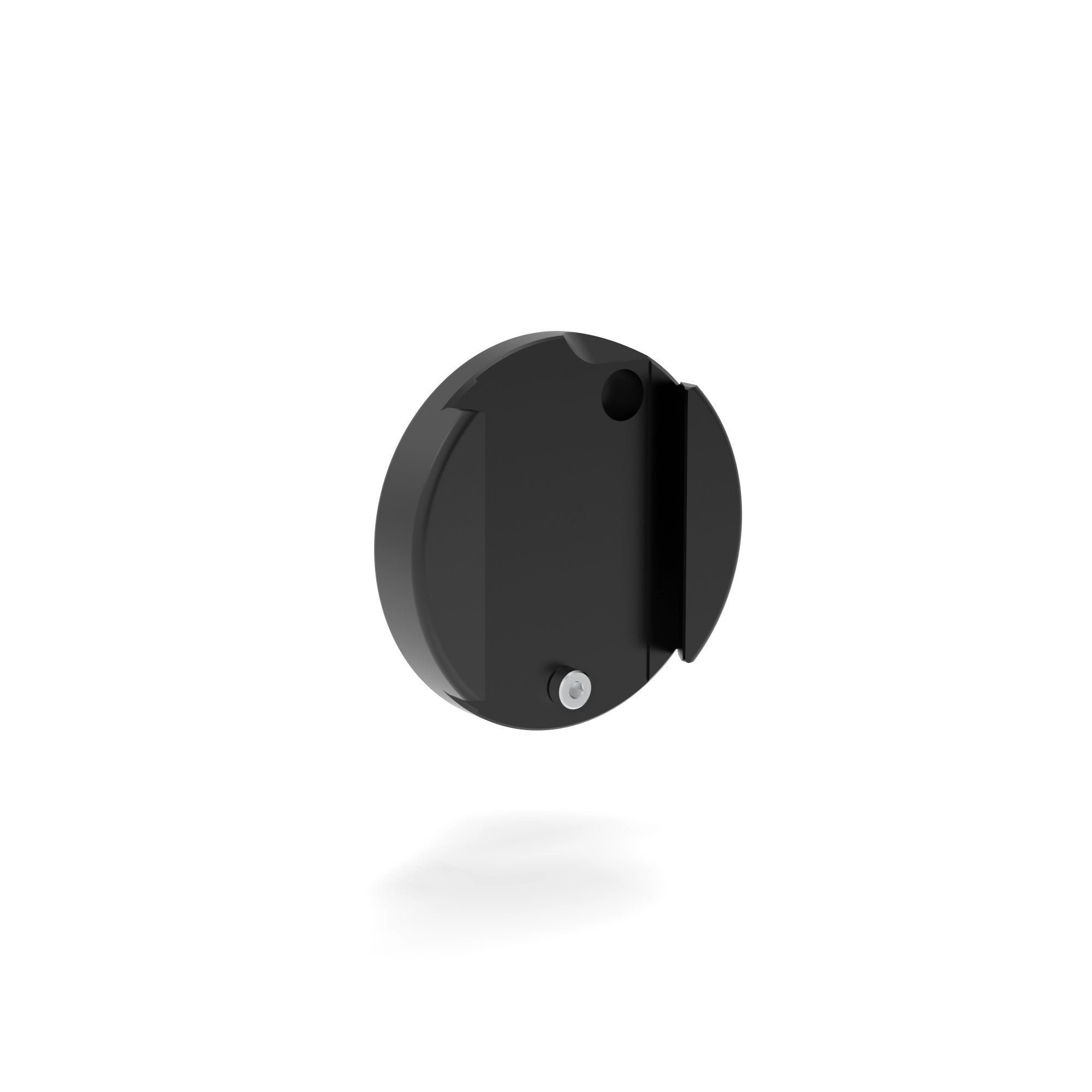

• TWIST Mount Spud for ARRI Viewfinder Wedge
  • Works with ARRI standard EVF wedge products like EVF-1, EVF-2, MVF-1, MVF-2

  • Works with other ARRI wedge adapters like ARRI VFA-4, K2.0015520, etc.

  • Works with 3rd party products that utilize ARRI-style mounting wedges.

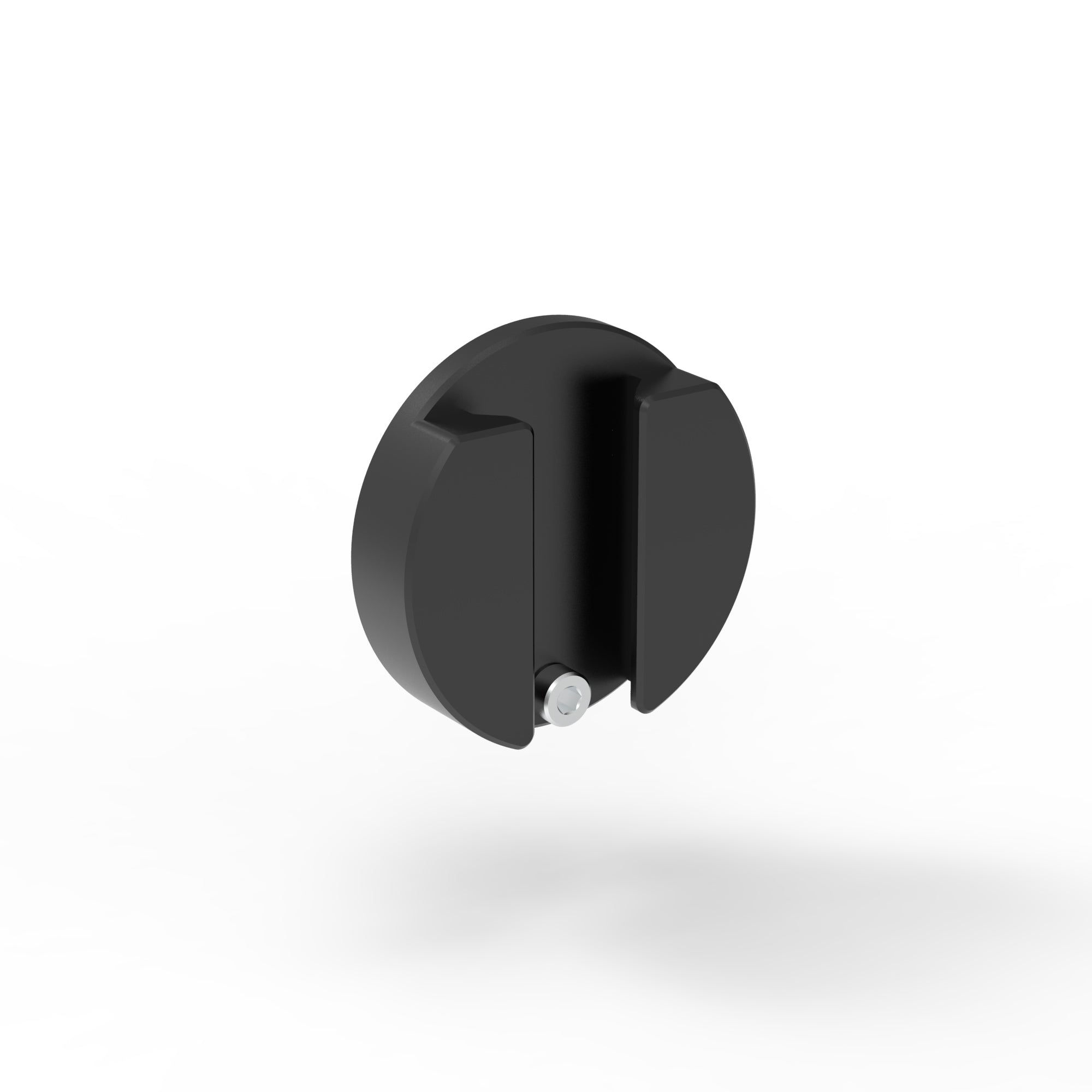

• TWIST Mount Spud for Blackmagic Viewfinder Wedge

  • Works with URSA Cine EVF - CINEURSAB/EVF

  • Works with URSA Cine EVF Extension - CINEURSAB/EVFEXT

  • Works with PYXIS Monitor Kit - CINEURSABB/AMKIT

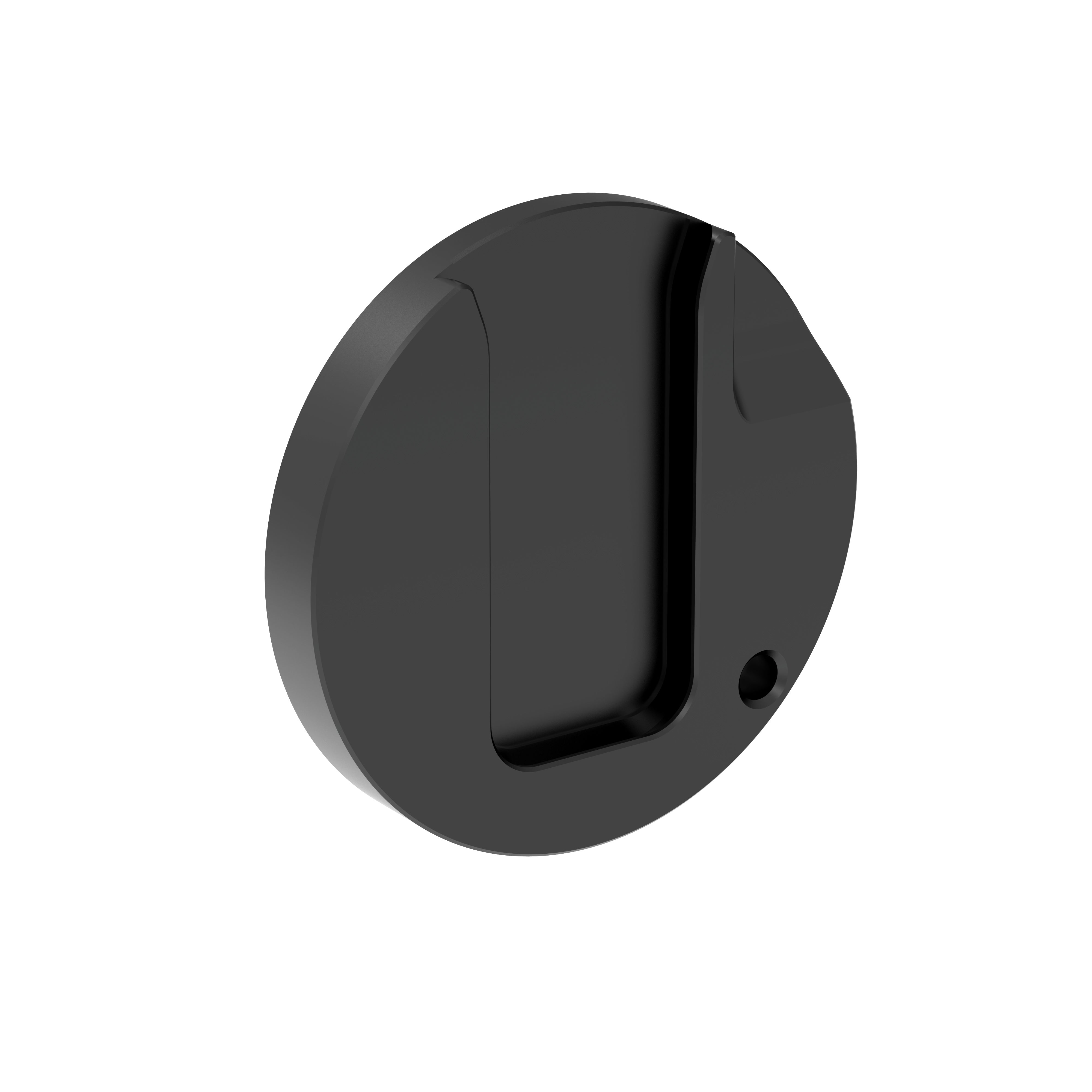

• TWIST Mount Spud for Sony FX6
  • Attaches to the FX6 monitor to provide a rigid "flop stop" mount
  • Monitor folding capability is maintained

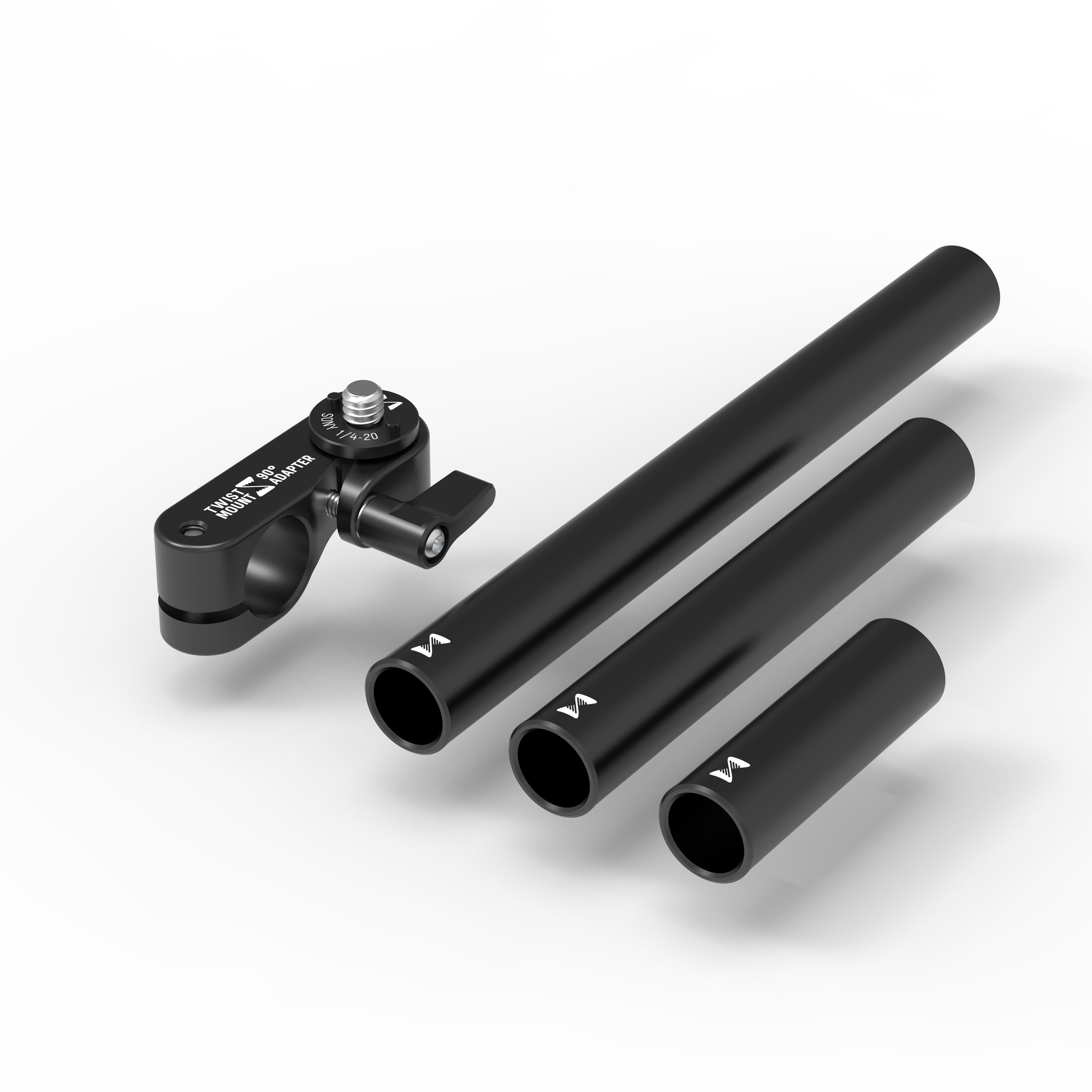

• TWIST Mount Monitor Right Angle Adapter + Spud with Old-Style SmallHD 1/4-20
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Older version SmallHD monitors where locating pins are short and wide
  • Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
  • Works with SmallHD AC7, Indie 7, 702, 703, Cine 7
• TWIST Mount Monitor Right Angle Adapter + Spud with ARRI 1/4-20
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Works with Blackmagic Video Assist (remove locating pins)
  • Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
  • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
  • Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)

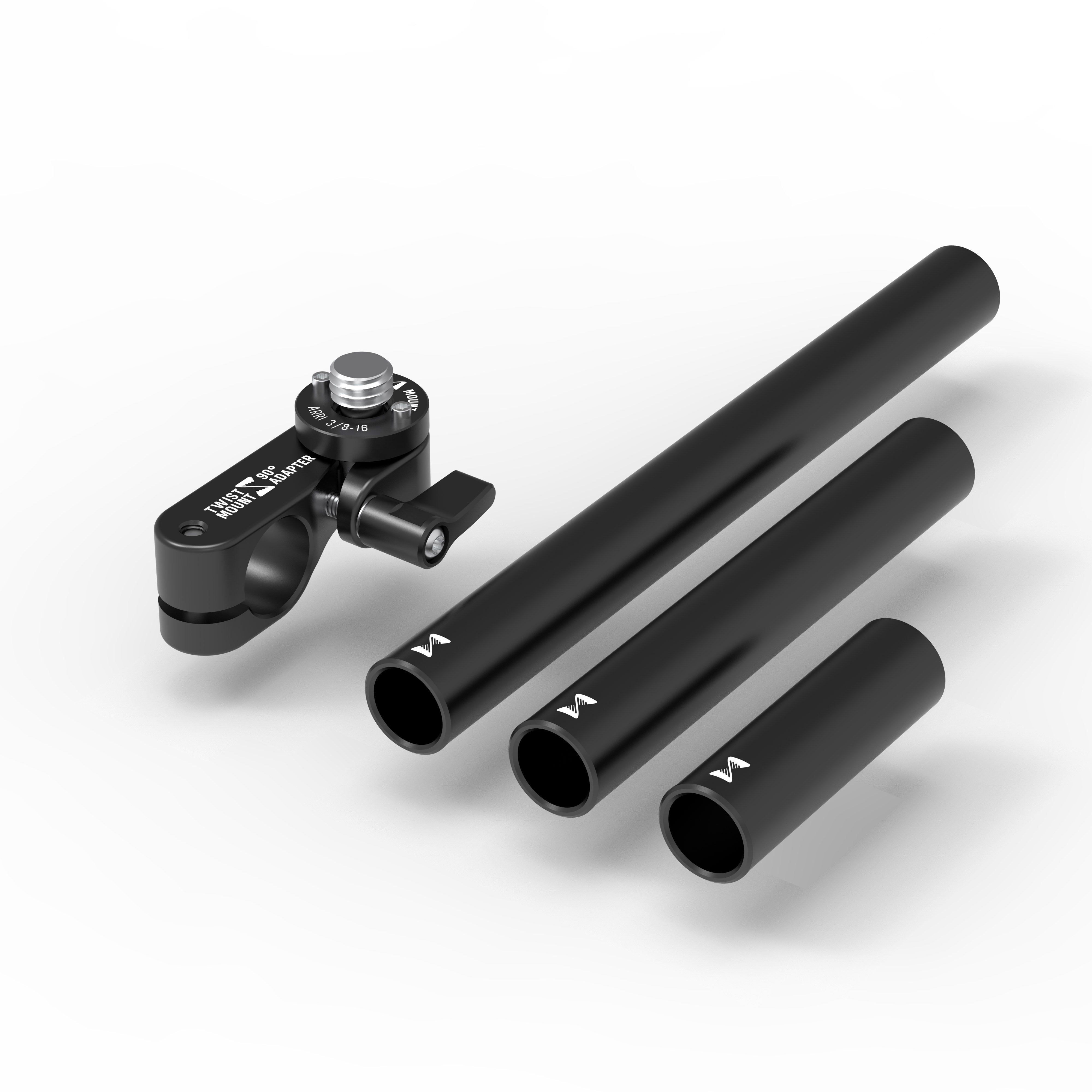

• TWIST Mount Monitor Right Angle Adapter + Spud with ARRI 3/8-16
  • TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.
  • Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)
• TWIST Mount Monitor Right Angle Adapter + Spud with Sony / PortKeys 1/4-20
  • Works with PORTKEYS BM5 IV, BM5 IV WR, LH5P II
  • Works with PORTKEYS PT5 II, PT6
  • Works with PORTKEYS LH7P, LH7H, HD7H
  • Works with PORTKEYS BM7 II DS U, HS8

The below TWIST Mount Spuds are specifically designed for the TWIST Ball Monitor Mount and are also sold separately. Check out the TWIST Ball Compatibility Chart here.

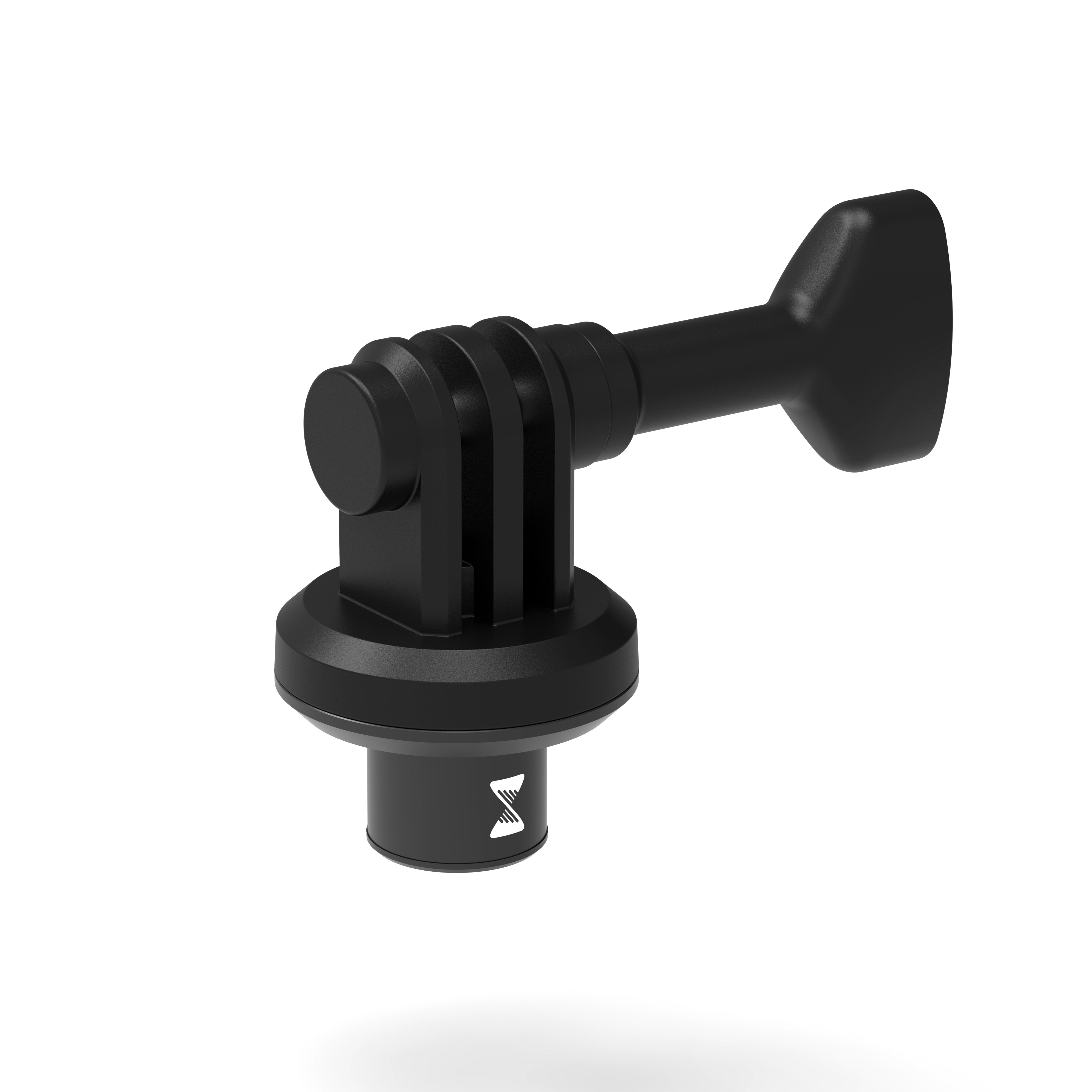

• TWIST Mount Spud for Action Cameras (GoPro, DJI Osmo Action, Insta360)
  • Standard receptacle for 2-prong action camera feet
  • Works with GoPro, DJI Osmo Action, Insta360
  • Works with many other 3rd party action camera products

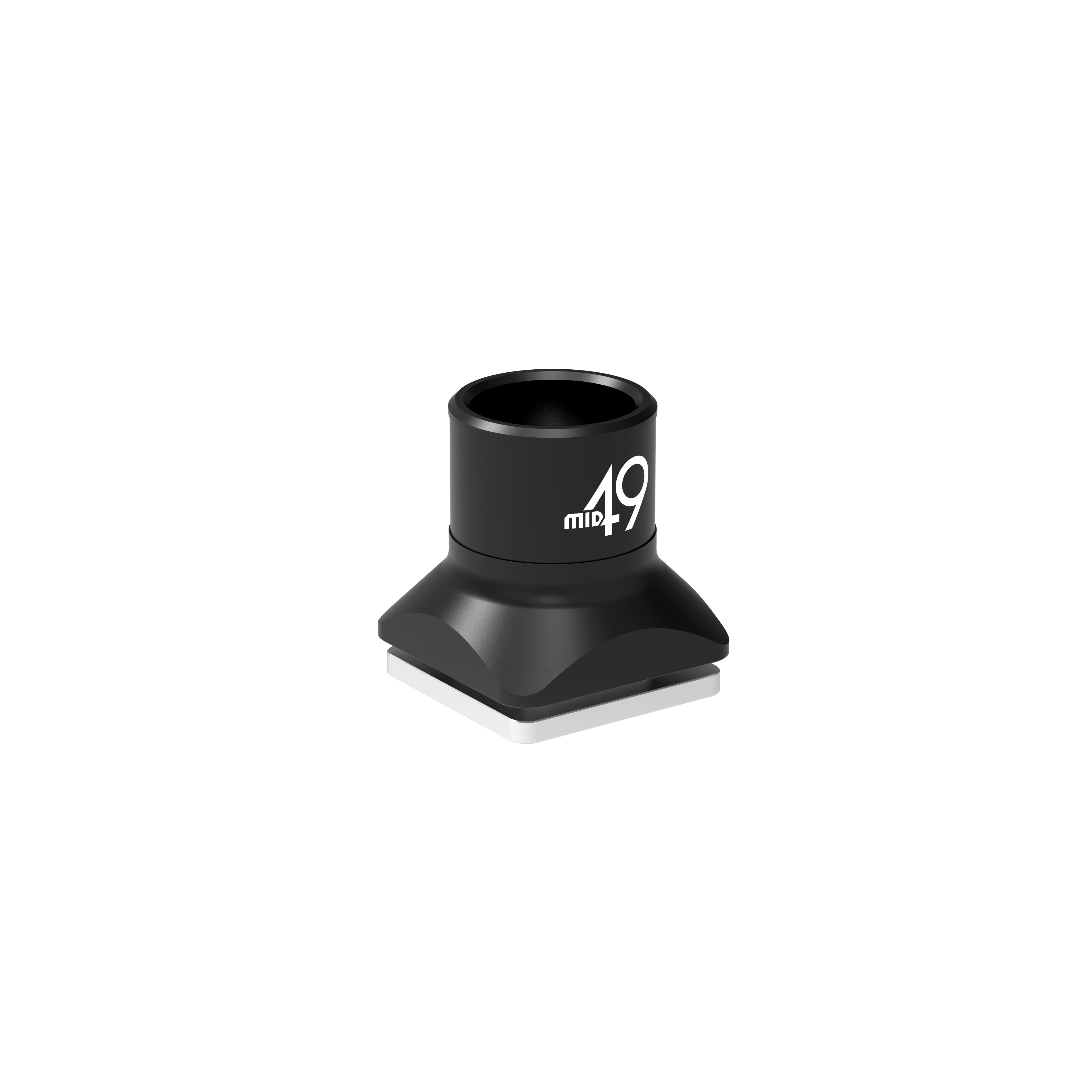

• TWIST Mount Spud with Male Hot Shoe

  • Clamps to standard camera shoe mounts

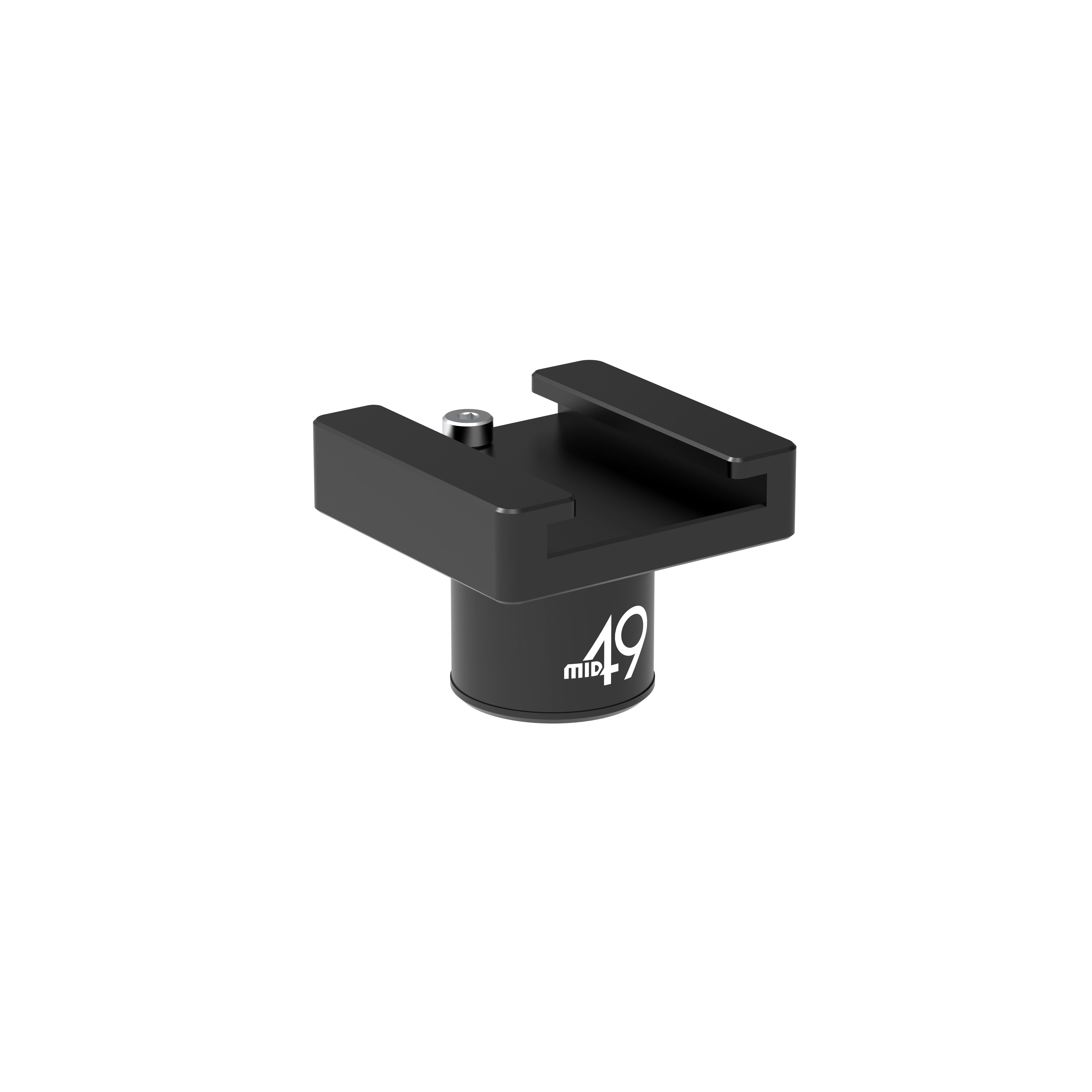

• TWIST Mount Spud with Female Hot Shoe

  • Female shoe receptacle for standard shoe accessories

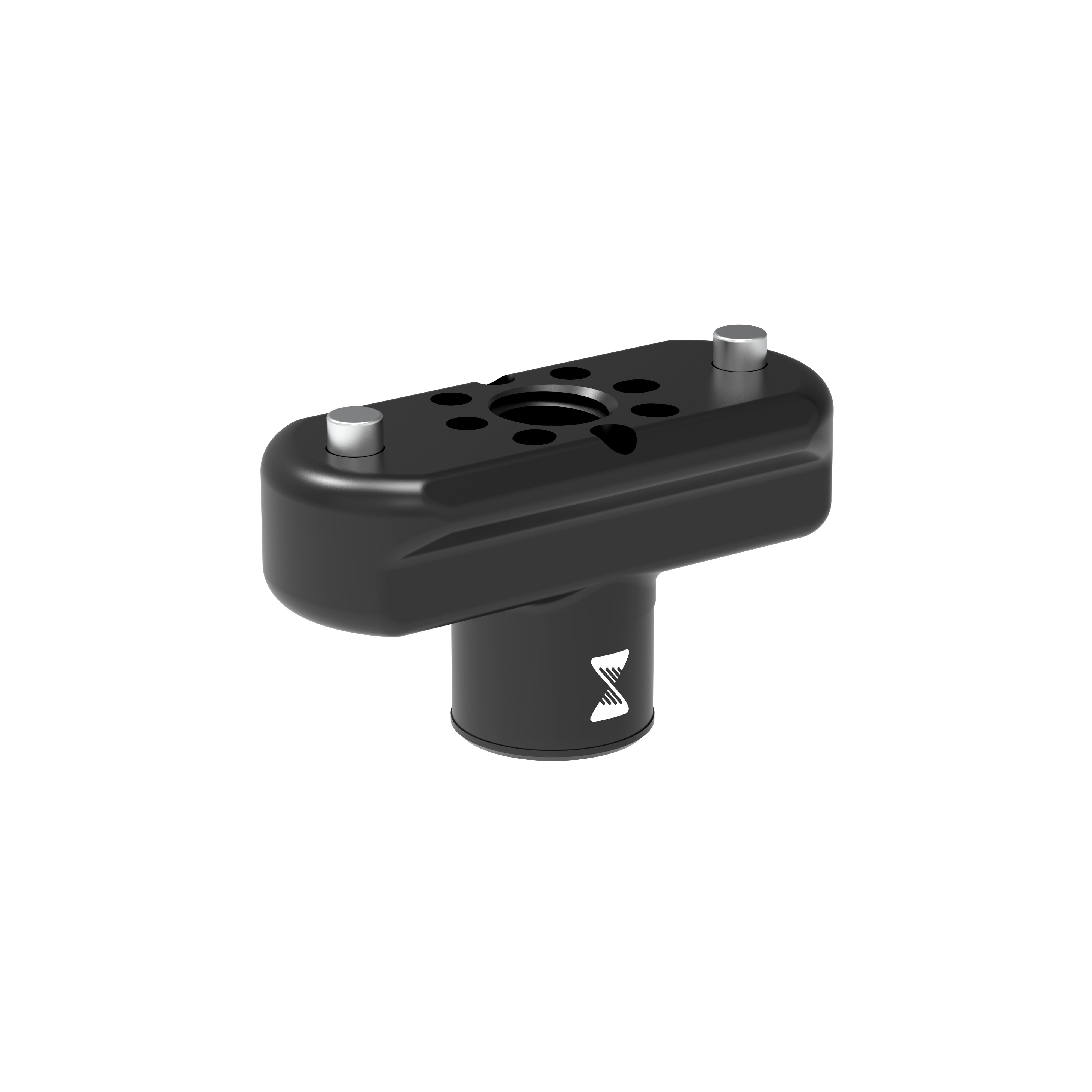

• TWIST Mount Spud with NATO Rail

  • Standard NATO rail with safety pins on each end
  • Mounting area between pins is 30mm

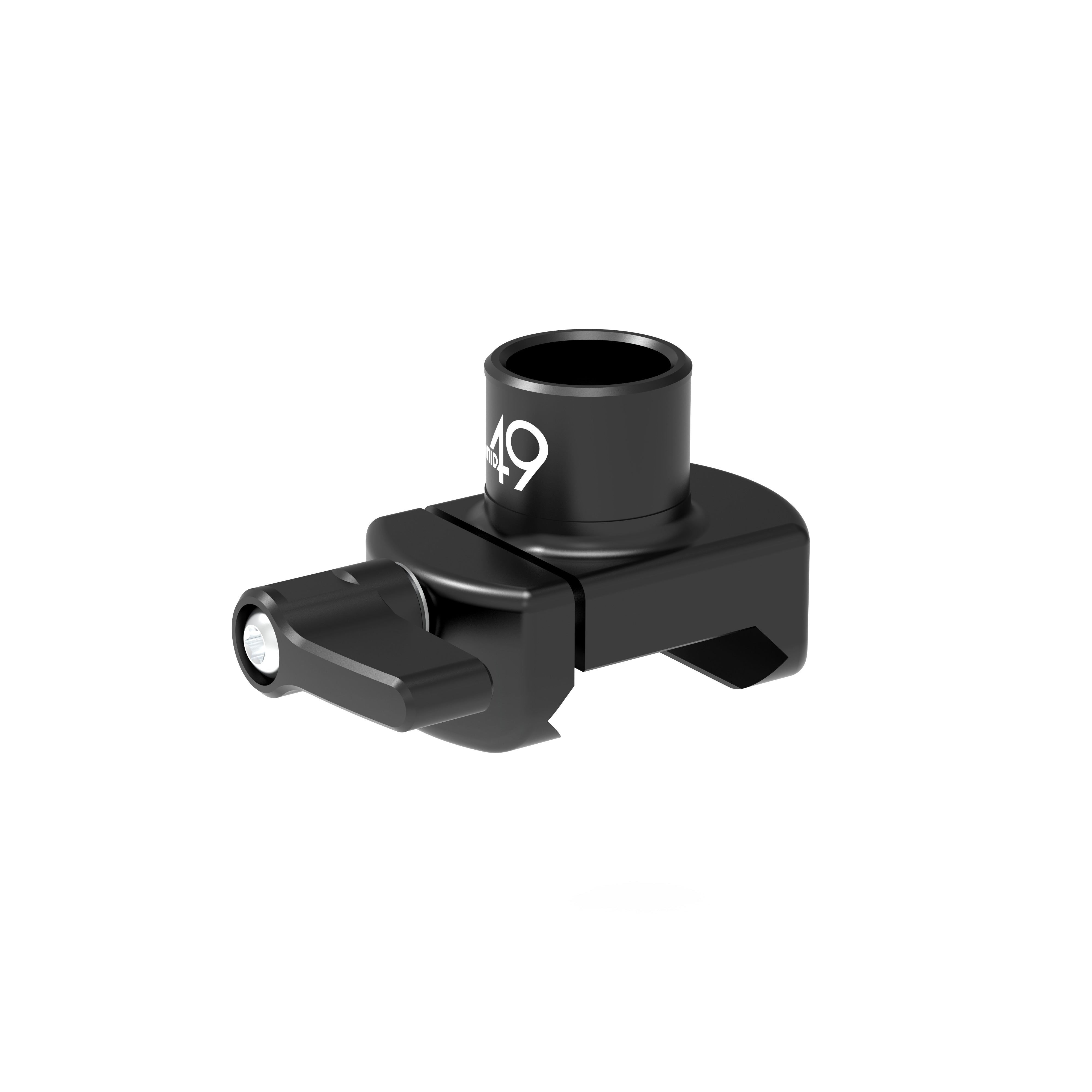

• TWIST Mount Spud with NATO Clamp

  • Standard NATO clamp with ratcheting thumbscrew
  • Clamping area between outside edges 21mm

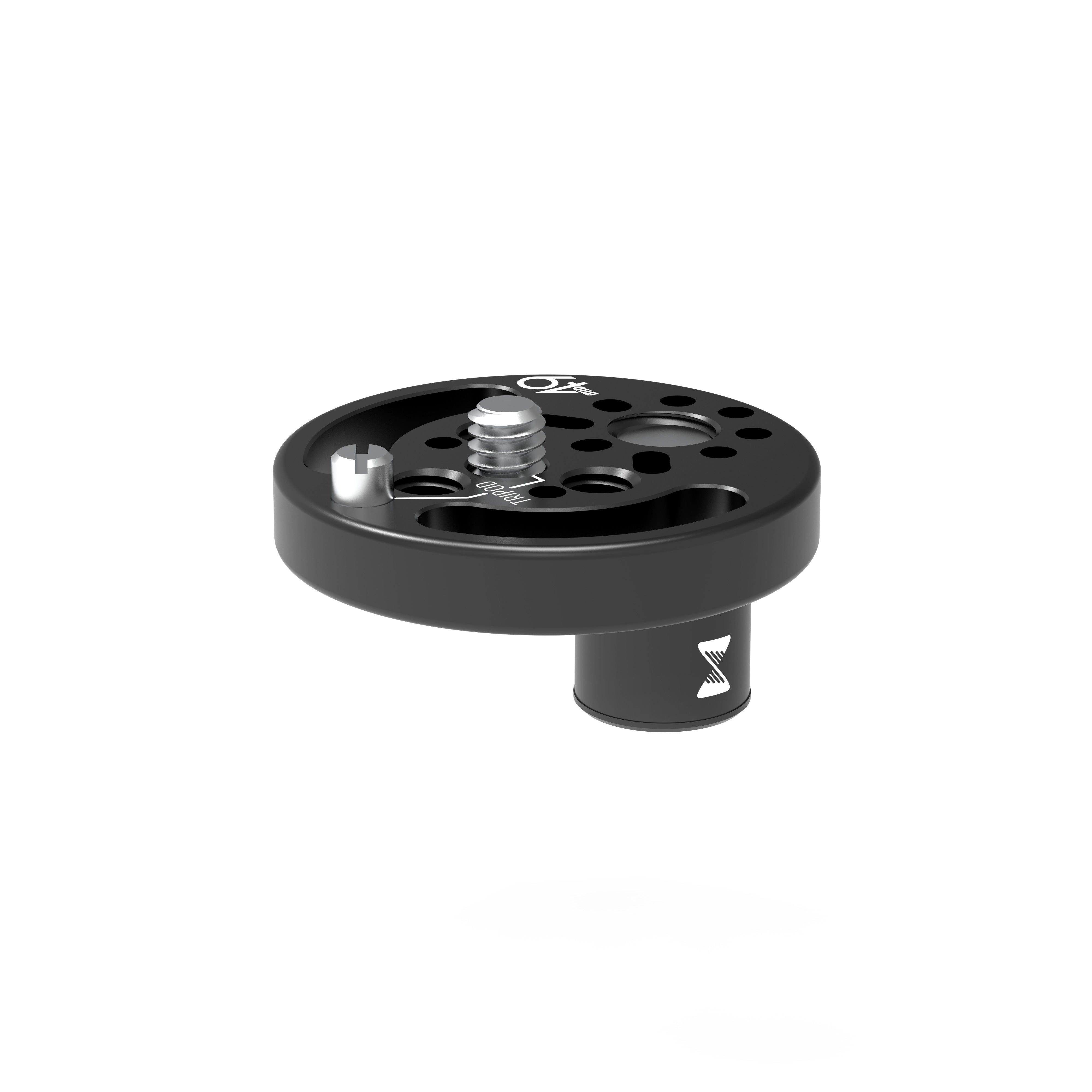

• TWIST Mount Spud with Tripod Expansion Adapter

  • Includes a 5mm locating pin and 1/4-20 screw for attaching small cameras with a standard "tripod" mount
  • Remove the locating pin and screw this adapter into any two 1/4-20 threaded holes between 16.5 and 33mm center to center
  • Threaded ARRI 1/4-20 and 3/8-16 holes also available

TWIST Mount EVF Spud for Canon C300mkIII, C500mkII, LM-V2 Dimensions
Product Weight: 0.78oz (22g)
Product Dimensions (WxLxH): 0.9 x 2.9 x 0.9in (22 x 73 x 23mm)

TWIST Mount EVF Spud with ARRI M6 Rosette Dimensions
Product Weight: 0.4oz (12g)
Product Dimensions (WxLxH): 1.3 x 1.3 x 0.8in (32 x 32 x 19mm)

TWIST Mount EVF Spud with ARRI 1/4-20 Dimensions
Product Weight: 0.4oz (10g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.75in (20 x 20 x 19mm)

TWIST Mount EVF Spud with ARRI 3/8-16 Dimensions
Product Weight: 0.4oz (12g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 21mm)

TWIST Mount EVF Spud with Sony 1/4-20 Dimensions
Product Weight: 0.3oz (8g)
Product Dimensions (WxLxH): 0.7 x 0.7 x 0.8in (17 x 17 x 19mm)

TWIST Mount EVF Spud with L Bracket 1/4-20 Dimensions
Product Weight: 0.6oz (18g)
Product Dimensions (WxLxH): 0.8 x 2.5 x 0.8in (20 x 63 x 19mm)

TWIST Mount EVF Spud with Female ARRI 1/4-20 Dimensions
Product Weight: 0.4oz (10g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 19mm)

TWIST Mount EVF Spud with Female ARRI 3/8-16 Dimensions
Product Weight: 0.3oz (8g)
Product Dimensions (WxLxH): 0.8 x 0.8 x 0.8in (20 x 20 x 19mm)
