Description

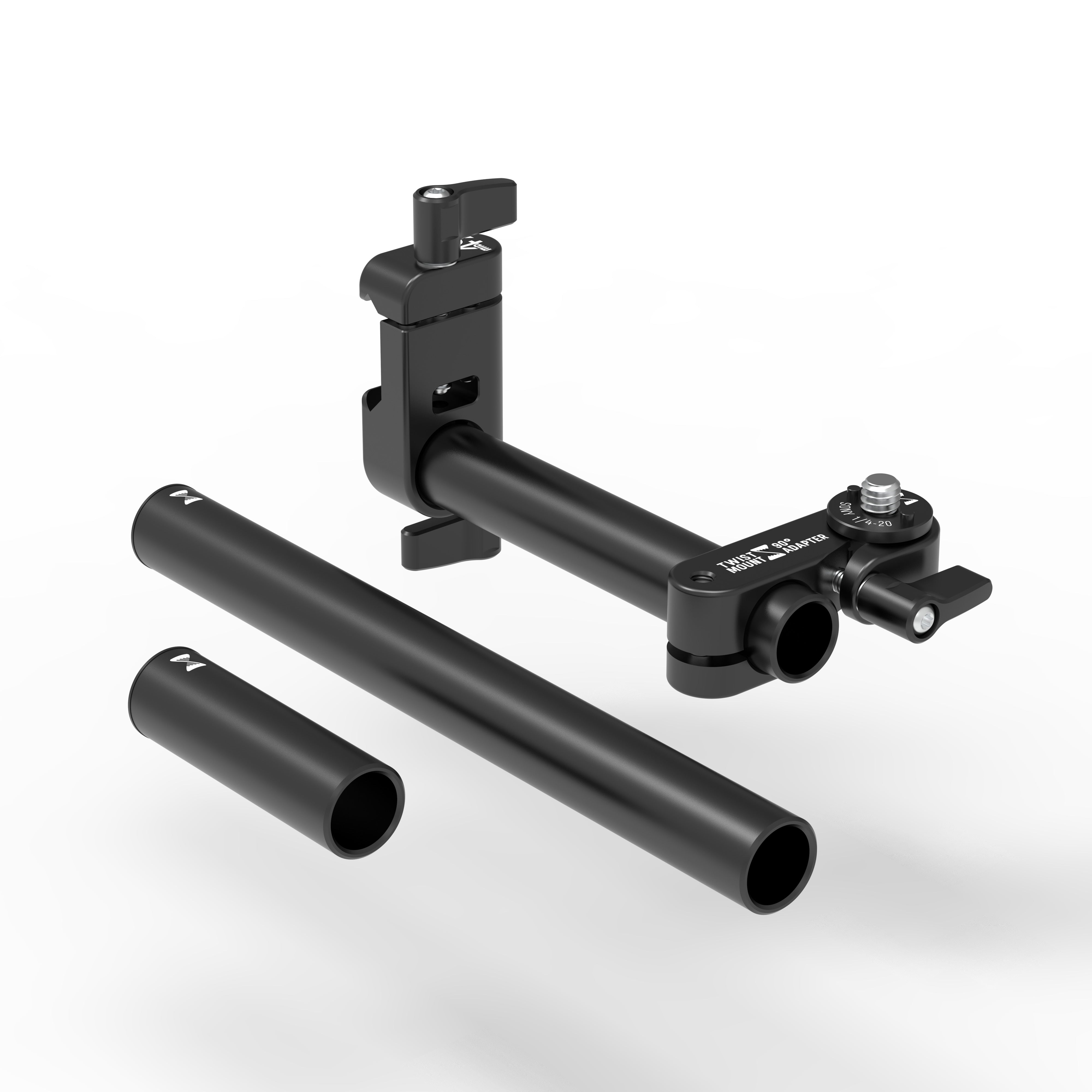

TWIST Mount Monitor Knuckle has a NATO clamp on one end and a variable friction 15mm mount on the other. With the variable friction design, you can grab and twist the monitor without loosening the thumbscrew.

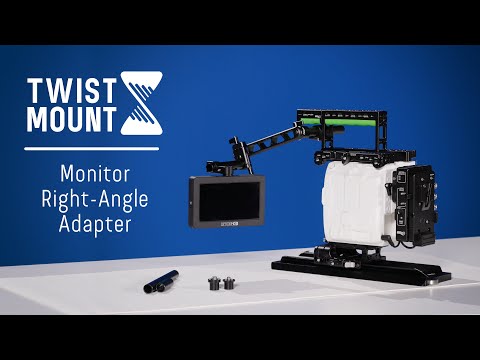

The Right Angle Spud Adapter allows monitors without side mounting points to be adapted to the TWIST Mount system and includes three lengths of 15mm rod with the TWIST grove on the end: 50mm, 100mm, and 150mm.
Choose the appropriate Spud screw type, attach it to the top or bottom of your monitor, choose the appropriate length of rod, and install into the TWIST Knuckle.
Spud Options:
-
Old-Style SmallHD 1/4-20
- Older version SmallHD monitors where locating pins are short and wide
- Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
- Works with SmallHD AC7, Indie 7, 702, 703
-
ARRI 1/4-20 (3mm pins spaced 10.4mm apart)
- Works with Blackmagic Video Assist (remove locating pins)
- Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
- Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
- Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)
- Works with PORTKEYS LH7P (be careful, the monitor is plastic)
- Works with PORTKEYS 5” BM5 IV
-
ARRI 3/8-16 (3mm pins spaced 15mm apart)
- Works with Atomos Shogun Monitor-Recorder (ATOMSHG002)
