Description

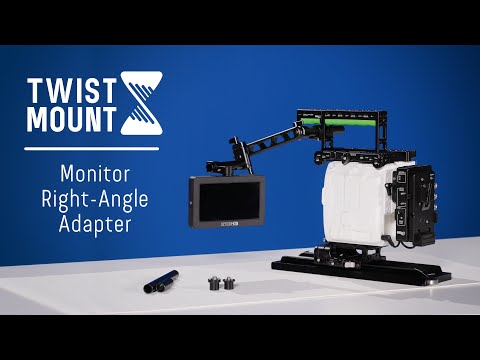

TWIST Mount Monitor Right Angle Spud Adapter allows monitors with top and bottom mounting points to be adapted to the TWIST Mount System.

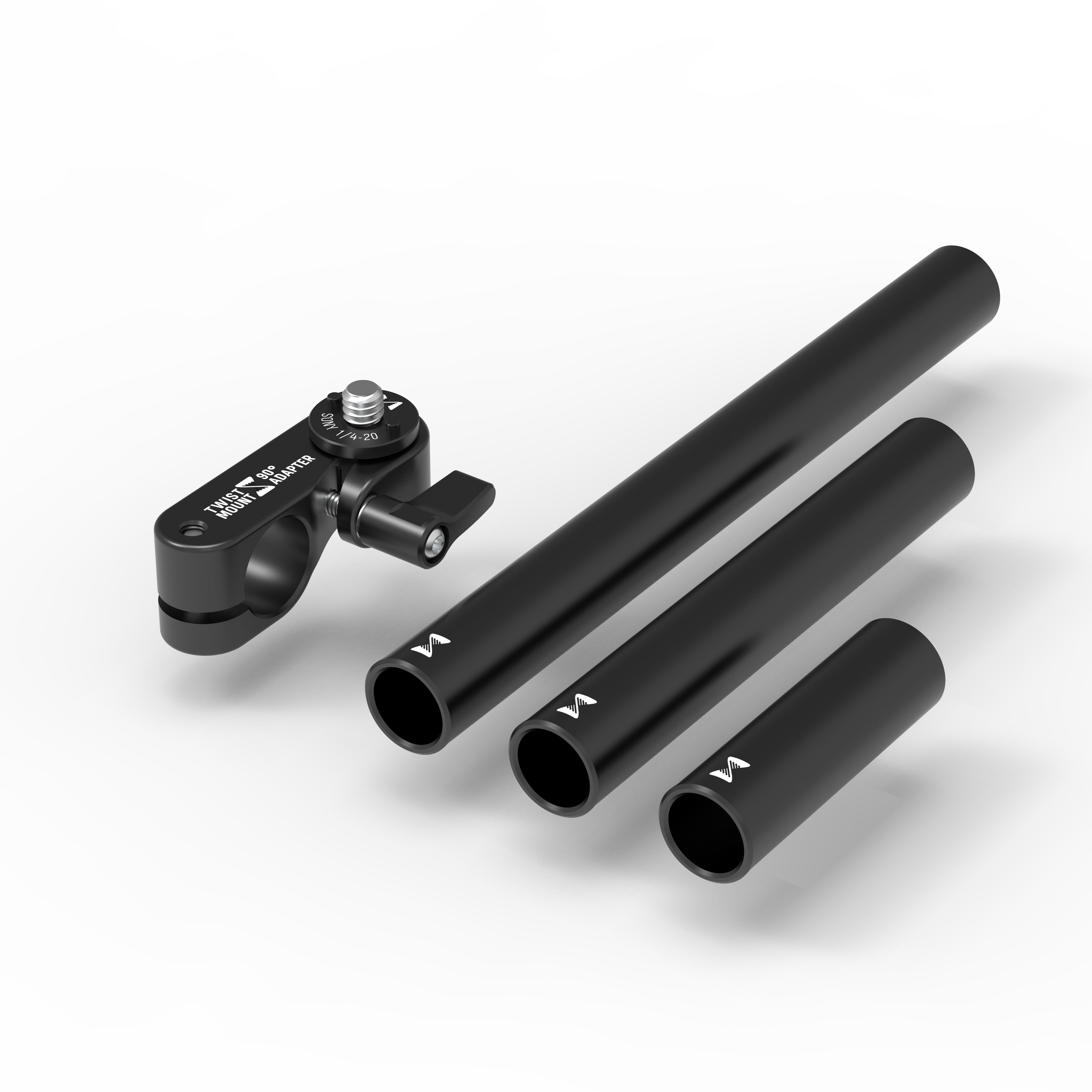

The kit includes the right-angle adapter and three lengths of 15mm rod with the TWIST groove on the end: 50mm, 100mm, and 150mm.
Choose the appropriate Spud, attach it to the top or bottom of your monitor, select the appropriate length of rod, and install that into the TWIST Mount Knuckle (sold separately).
Check out our Compatibility Chart Here.
Check out our Compatibility Chart Here.
Spud Options:
-
Old-Style SmallHD 1/4-20
- Older version SmallHD monitors where locating pins are short and wide
- Works with SmallHD Focus 5, Focus Pro for RED, 502, 503, Action 5
- Works with SmallHD AC7, Indie 7, 702, 703, Cine 7
-
ARRI 1/4-20 (3mm pins spaced 10.4mm apart)
- Works with Blackmagic Video Assist (remove locating pins)
- Works with Atomos Shinobi, Ninja, Shogun (remove locating pins)
- Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
- Works with TVLogic F-5A, F-7H, F-7HS (remove locating pins)
-

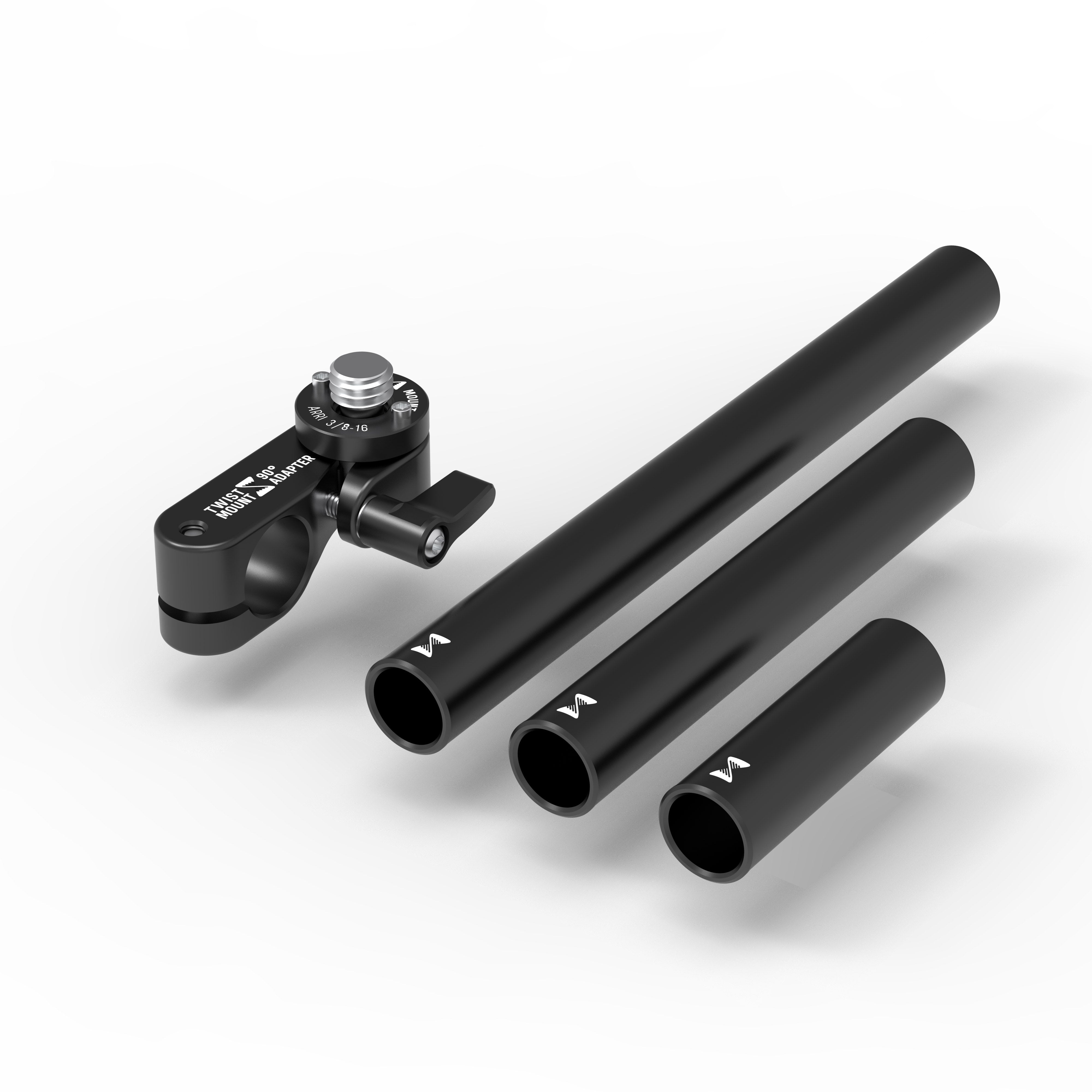

ARRI 3/8-16 (3mm pins spaced 15mm apart)
- Works with Atomos Shogun Ultra Monitor-Recorder (ATOMSHG002)
-
Sony / PortKeys 1/4-20
- Works with PORTKEYS BM5 IV, BM5 IV WR, LH5P II
- Works with PORTKEYS PT5 II, PT6
- Works with PORTKEYS LH7P, LH7H, HD7H
- Works with PORTKEYS BM7 II DS U, HS8
Product Weight (Adapter only): 2.5oz (70g)
