Description

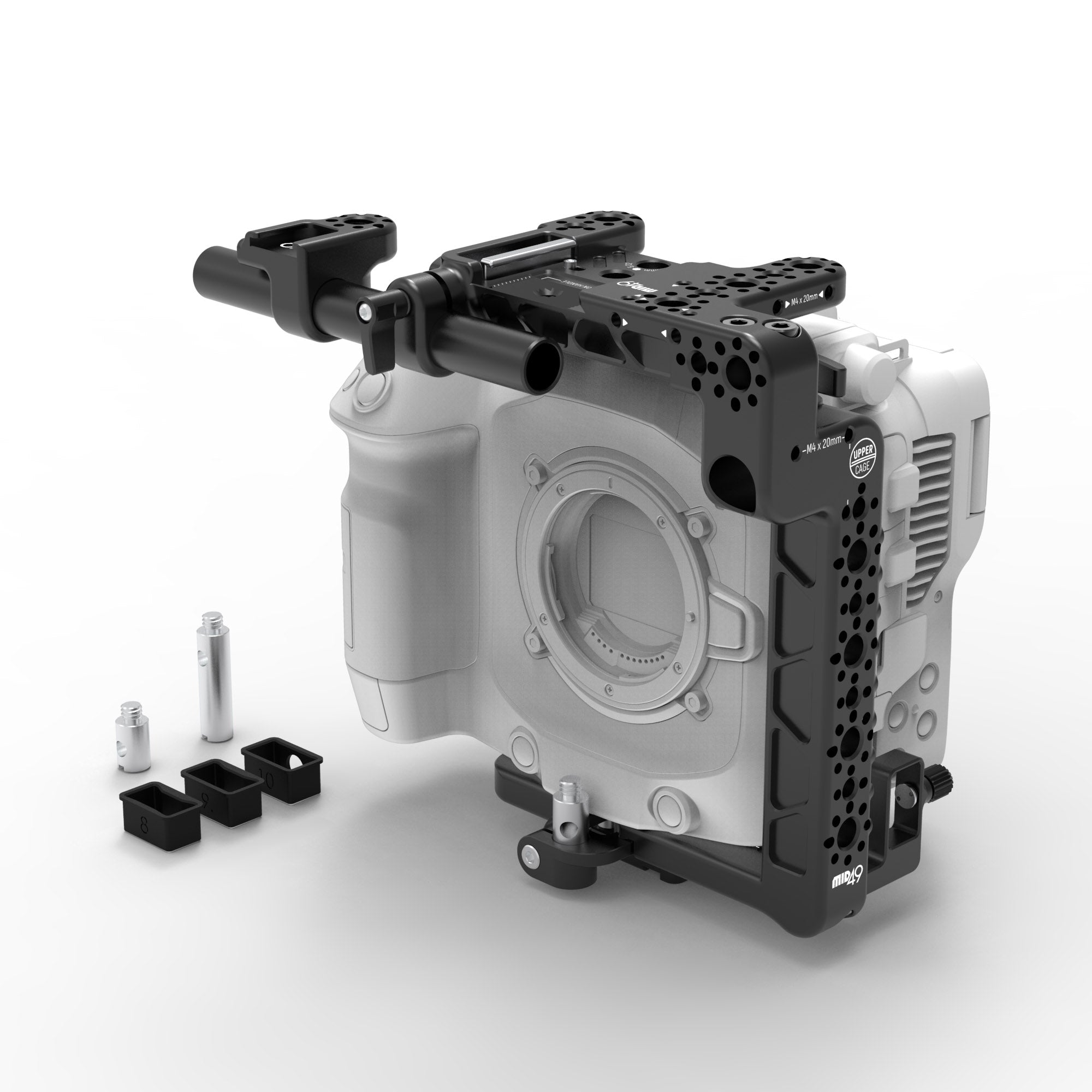

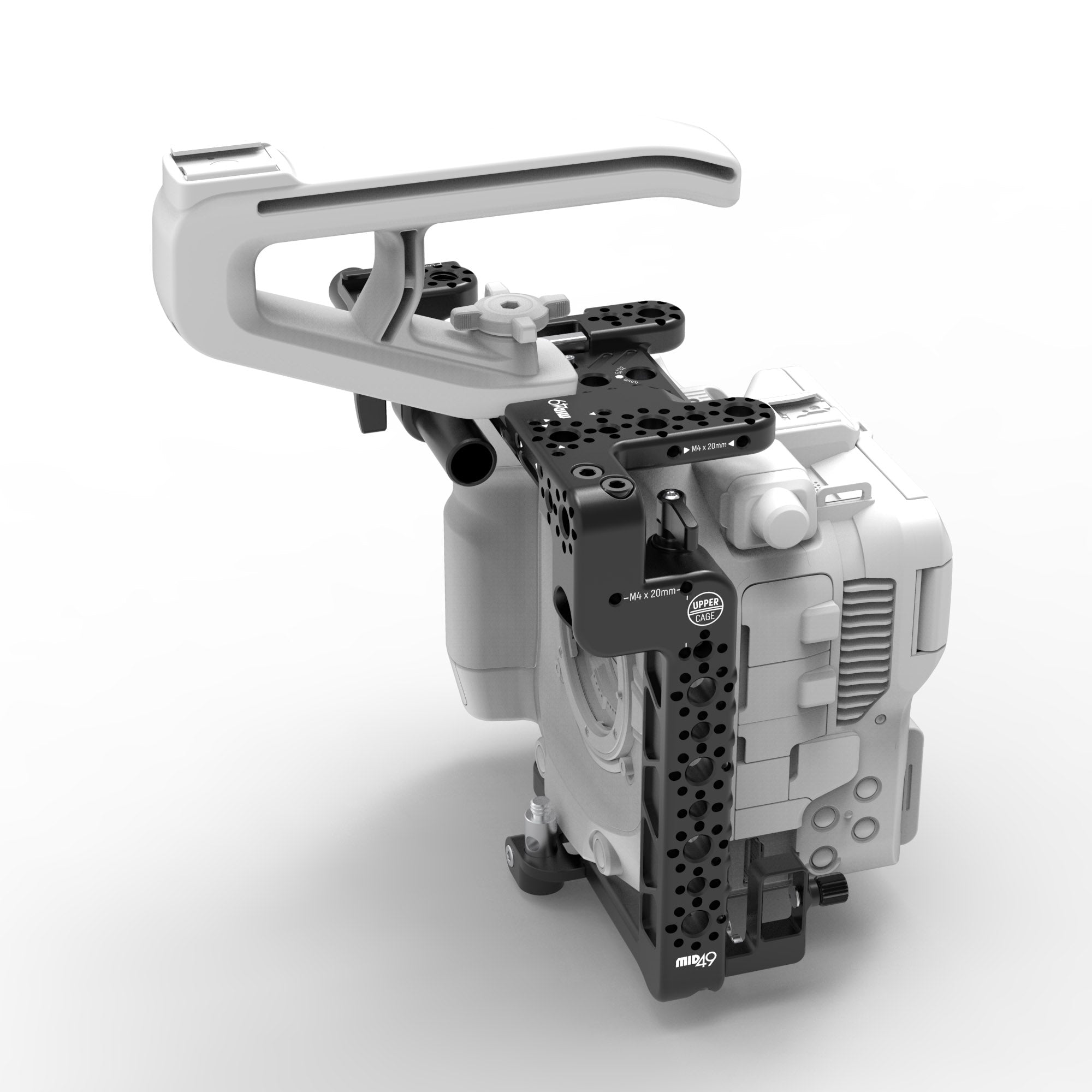

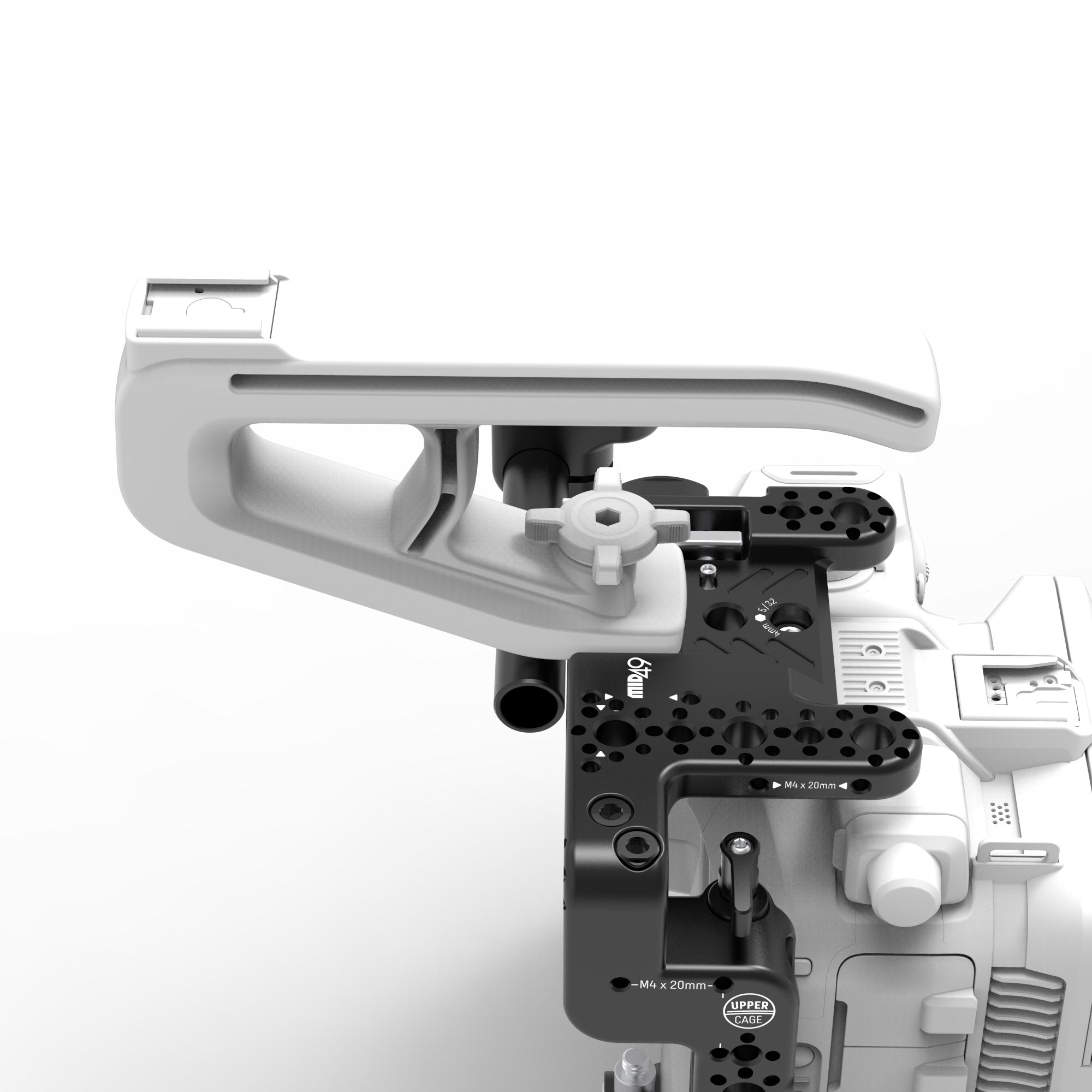

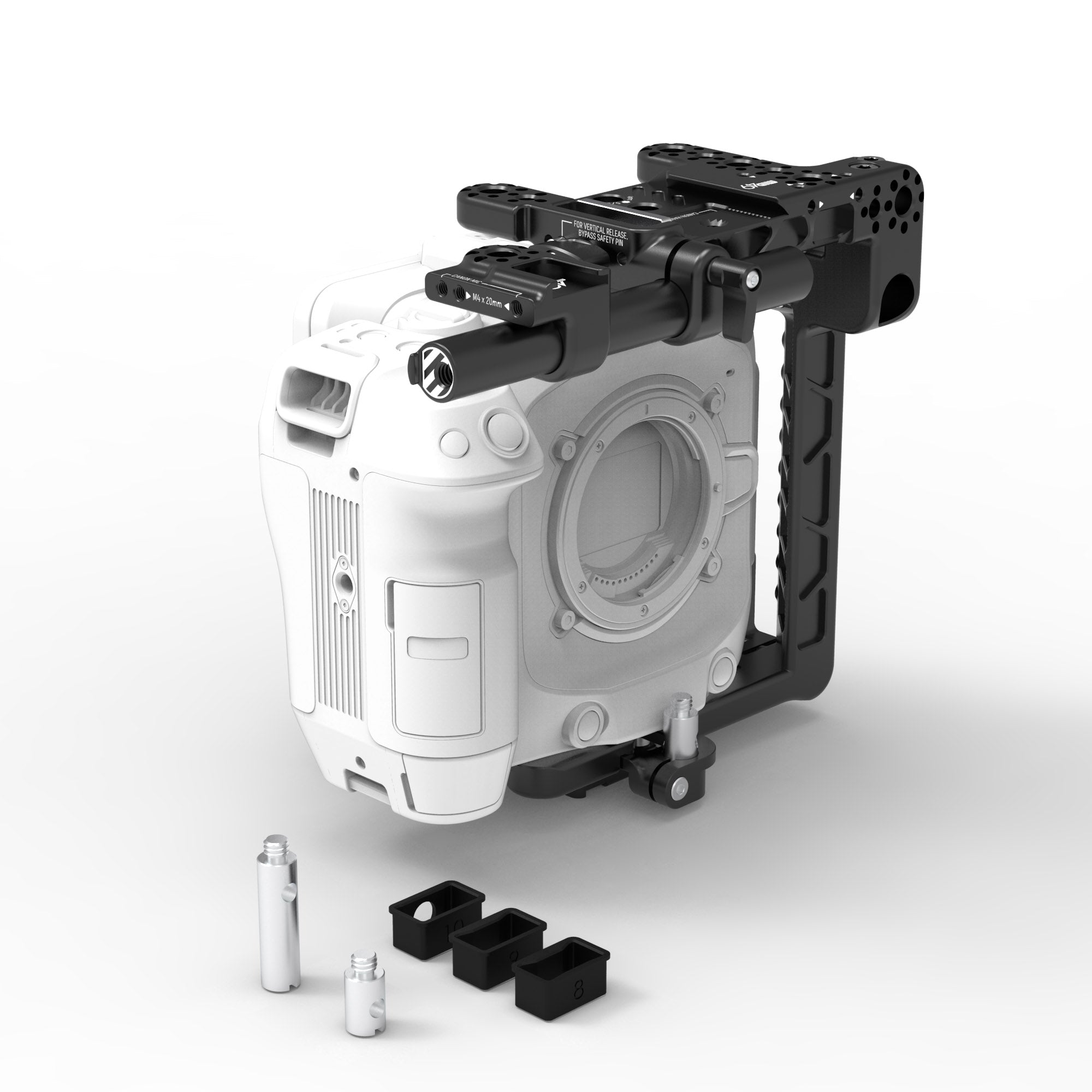

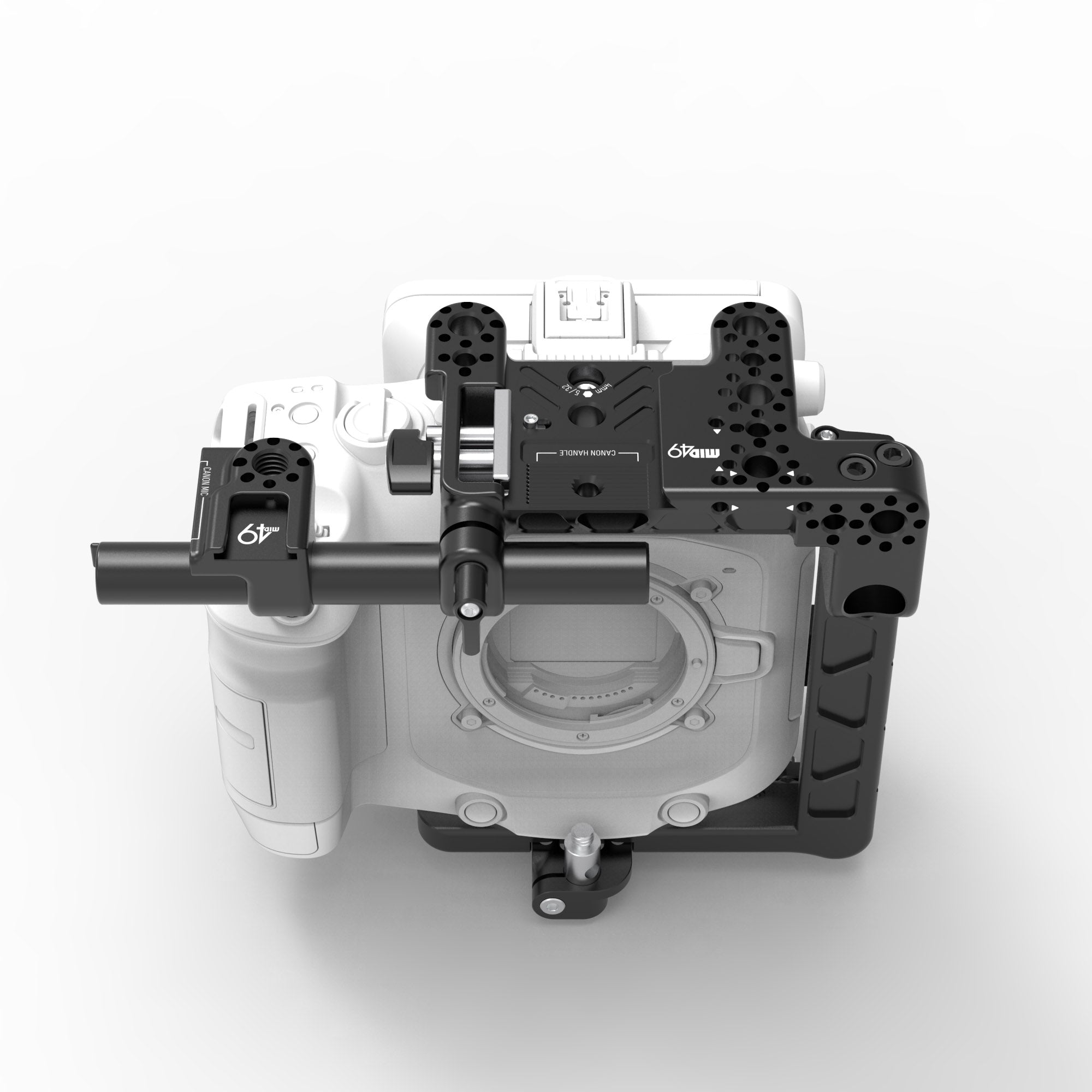

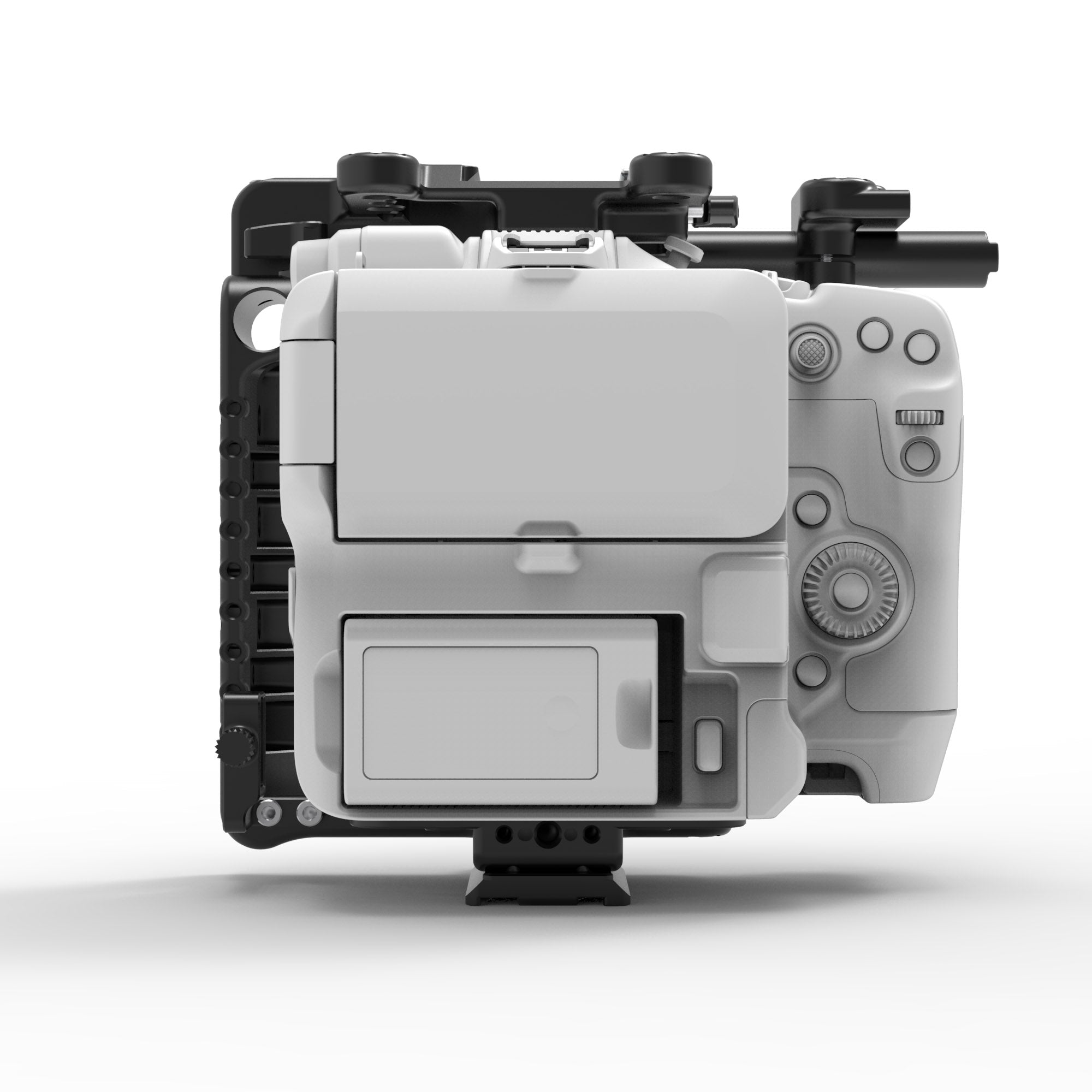

Upper Cage for Canon C80 is a form-fitting cage with 1/4-20, 3/8-16 with ARRI accessory pins, and M4x20mm ARRI-spaced threaded holes in several places. In the center channel, a replica of the Canon striped rosette allows the C80's original handle to be attached.

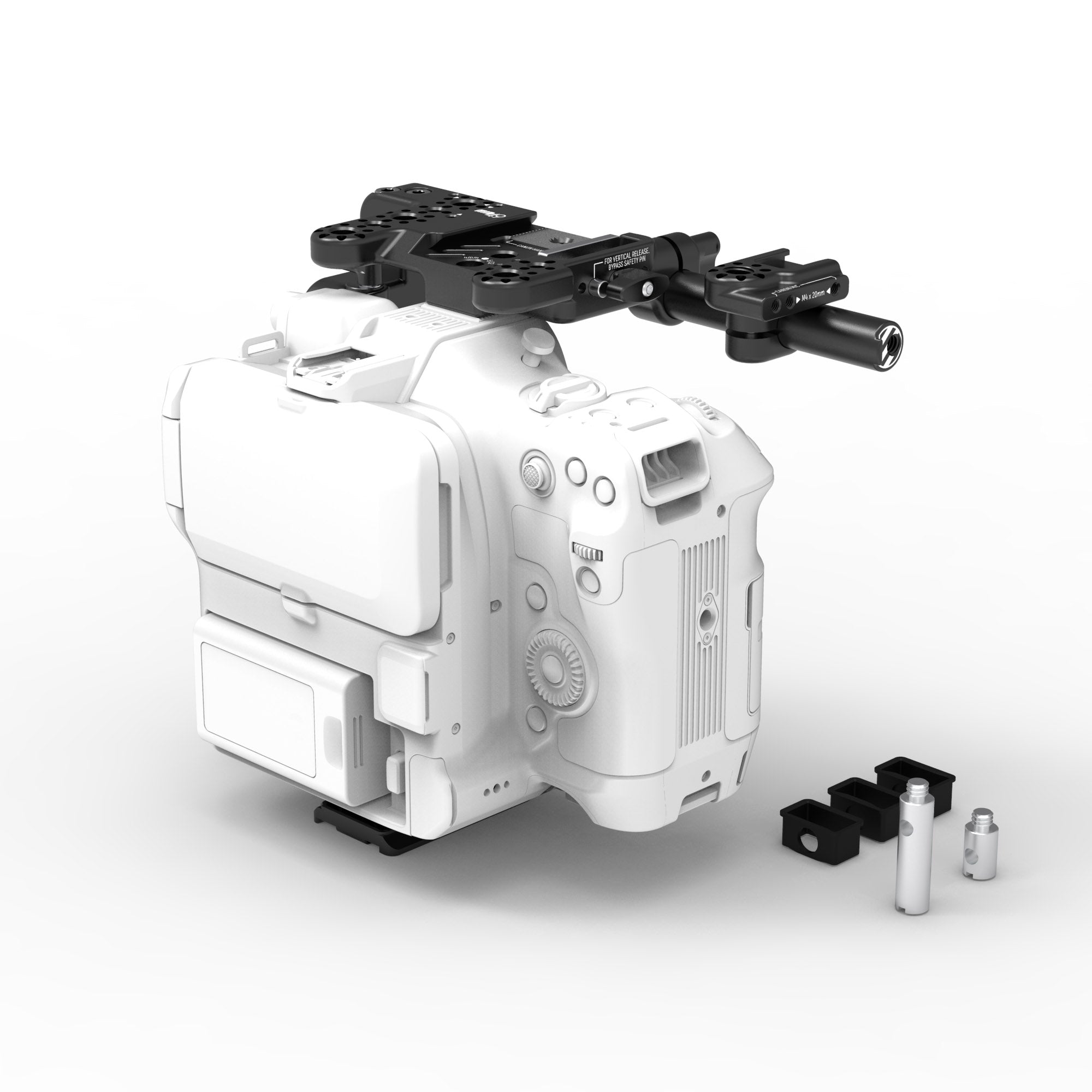

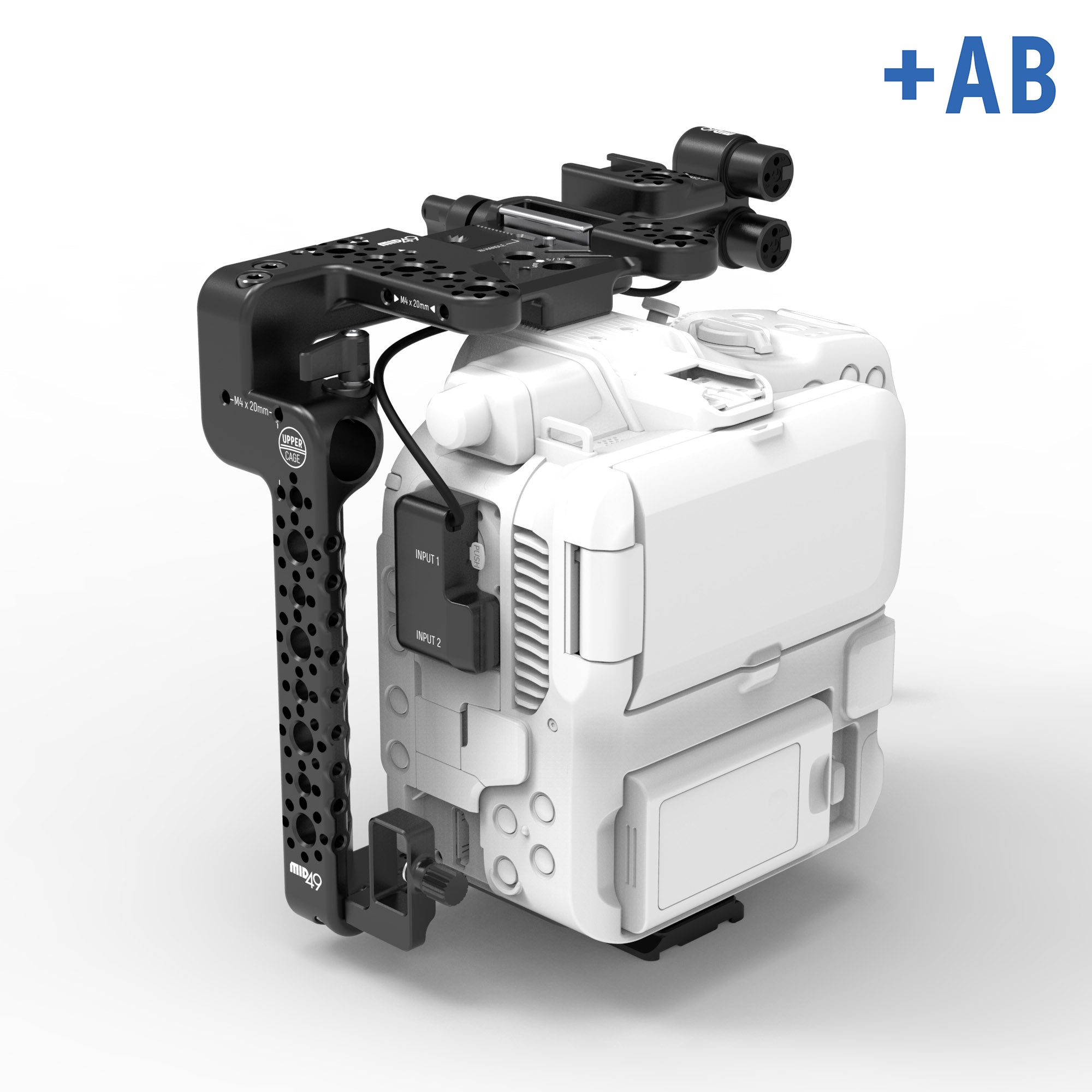

The included top accessory rod holds a combination hot shoe, ARRI 3/8-16, M4x20, and the Canon mic hole pattern for attaching the C80's original microphone shock mount. A special 1/4-20 recess at the end of the rod holds the Audio Breakout AB-4 (Canon C70/C80) which is available as an optional add-on, and converts the camera's two mini XLRs to standard, full-size XLRs.
HDMI protector clamps cables securely, and front lens support mount attaches to 3rd party lens adapters like Metabones, etc.
Top ARCA Swiss dovetail slot accepts products like our ARCA Top Handle or ARCA Top Plate which are sold separately.
Lower ARCA Swiss dovetail attaches to our Baseline 15mm Baseplate to provide rods at the correct lens height and is also available separately.
Product Weight: 15.5oz (438g)
Product Dimensions (WxLxH): 5.2 x 7.2 x 6.4n (438 x 132x 162mm)
